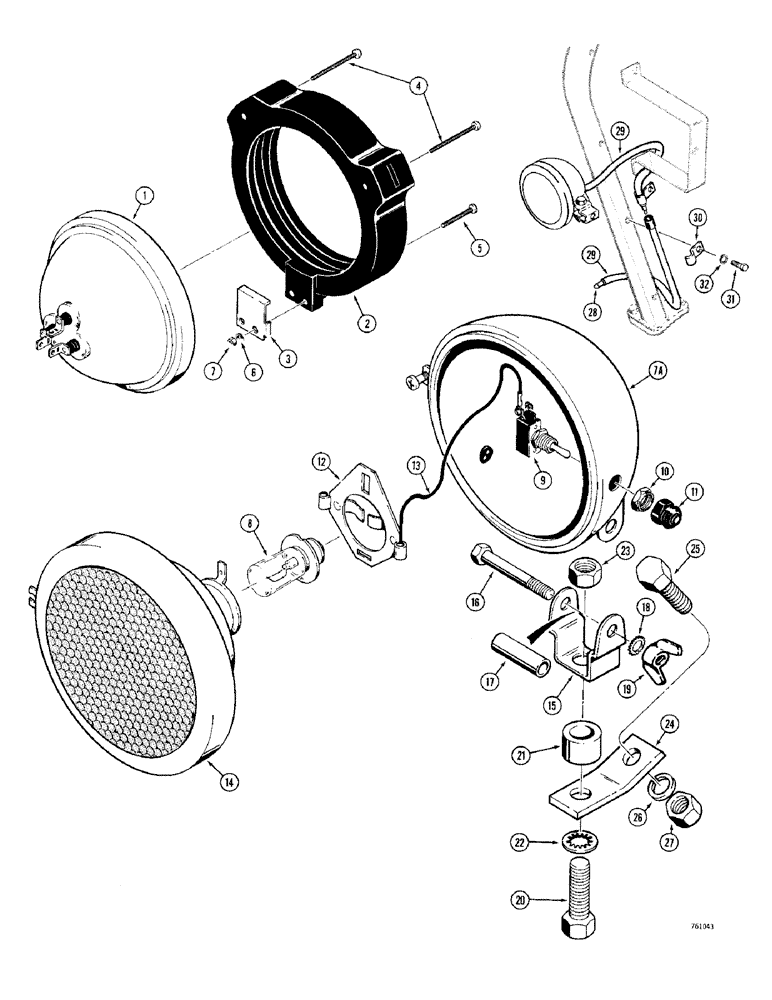

Запчасти Case 380CK (050) - FRONT AND REAR FLOOD LIGHTS (04) - ELECTRICAL SYSTEMS

K915874

HEADLAMP

LIGHT ASSEMBLY - front, Includes: Ref. 1 - 4

2шт.

1

K962146

BEAM

LAMP - sealed beam

1шт.

2

K961759

MOUNTING PARTS

MOUNT - rubber

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

4

K962345

KIT

- mounting screws

1шт.

5

K604042

SCREW

- no. 8-32 NC x 7/8"

4шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

7

129-16

NUT,#8-32

4шт.

K943977

LAMP

LIGHT ASSEMBLY - rear flood, Includes: Ref. 7a - 14

1шт.

7a

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY

1шт.

8

K912439

BULB

- rear light

1шт.

9

K962620

LIGHT SWITCH

SWITCH - rear light

1шт.

10

K961082

NUT

- switch

1шт.

11

K962621

COVER ASSY

COVER - rubber, switch

1шт.

12

K963547

PLATE

- center, with contacts

1шт.

13

K961771

NO LONGER SERVICED

WIRE - lead

1шт.

14

K962334

LENS

- rear light

1шт.

15

K910853

BRACKET - rear flood light

1шт.

16

K610050

BOLT

- 1/4"-28 NF x 2-1/4"

1шт.

17

K912300

COLLAR

SPACER -, Serial Range: bracket-light

1шт.

18

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

19

K607215

NUT

- wing, 1/4"-28 NF

1шт.

20

K603141

SCREW

BOLT - 1/2"-13 NC x 1-1/4"

1шт.

21

K627067

BUSHING

SPACER - bracket

1шт.

22

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

24

K773886

BRACKET

- fender, see Figure 194 for canopy mounting frame

1шт.

25

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

26

92-8

LOCK WASHER,1/2"

1шт.

27

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

1шт.

28

D77338

WIRE - extension, used when light is mounted on canopy

1шт.

29

D77266

SLEEVE - wire

2шт.

30

A26673

CLIP

CLAMP - extension wire

2шт.

31

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.
