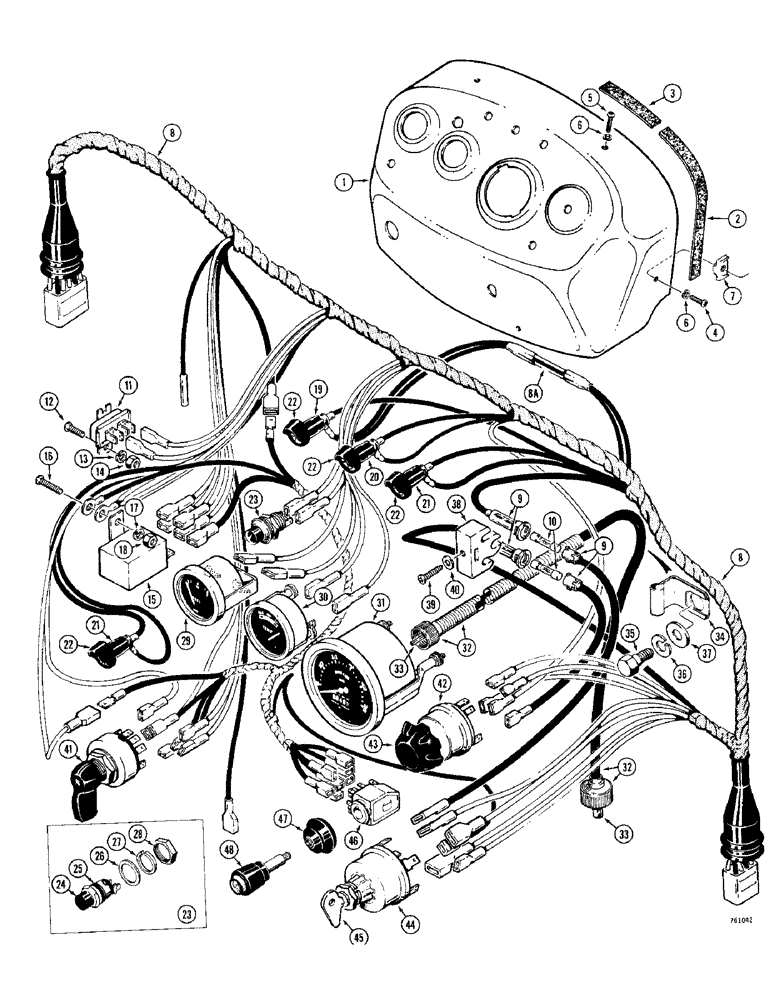

Запчасти Case 380CK (048) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

K948451

PANEL

- instrument

1шт.

2

K913391

STRIP

PAD - 9" (229 MM) Strip

2шт.

3

K946160

STRIP

PAD - 4" (102 MM) Strip

2шт.

4

K615403

SCREW

- no. 10-32 NF x 3/8"

2шт.

5

K615404

SCREW

- no. 10-32 NF x 1/2"

2шт.

6

K626572

WASHER

- lock, 3/16"

4шт.

7

K624583

NUT

- J type no. 10-32 NF

4шт.

8

K948450

HARNESS

- instrument panel, includes K952506 diode, Includes: Ref. 8A - 10

1шт.

8a

K952506

DIODE

- switch protecting

1шт.

9

K962988

HOLDER

- fuse

2шт.

10

K947431

FUSE

- 35A

2шт.

10a

K625004

CLIP

- harness, plastic with adhesive back, Not shown

1шт.

11

K262539

REGULATOR

STABILIZER - voltage

1шт.

12

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

- pan head, #8-32 NC x 3/8", plated

1шт.

13

K626572

WASHER

- lock, special

1шт.

14

129-16

NUT,#8-32

1шт.

15

K948611

FLASHER UNIT

FLASHER - 12 volt

1шт.

16

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- pan head, 1/4"-20 NC x 5/8", plated

1шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

19

K921367

SIGHTGLASS

LAMP - transmission filter warning, amber

1шт.

20

K917371

SIGHTGLASS

LAMP - engine oil pressure, green, Includes: Ref. 21A

1шт.

21

K917370

PROTECTIVE COVER

LAMP - alternator and safety flasher indicator, red, Includes: Ref. 21A

2шт.

21a

K962760

BULB

- part of items 18, 19 and 20, not shown

1шт.

22

K919304

GUARD

HOOD - warning lamps

4шт.

23

K928180

SWITCH

BUTTON ASSEMBLY - horn, Includes: Ref. 24 - 28

1шт.

24

K928150

BOOT

COVER - rubber

1шт.

25

NSS

NOT SOLD SEPARAT

SWITCH - horn button

1шт.

26

K928149

WASHER

- flat, special

1шт.

27

K928148

SPRING

WASHER - lock, special

1шт.

28

K928147

NUT - special

1шт.

29

K942442

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

30

K921148

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

31

K942227

SPEEDOMETER

TACHOMETER

1шт.

K951522

FLEXIBLE DRIVE SHAFT

CABLE ASSEMBLY - tachometer, Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING - cable

1шт.

33

K951523

CABLE

CORE - tachometer cable

1шт.

34

K917954

CLIP

CLAMP - tachometer, Serial Range: cable-engine

1шт.

35

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

K19472

WASHER

- flat, 3/8"

1шт.

38

K944904

RETAINER

SUPPORT - fuse holders

1шт.

39

K624523

SCREW

- no. 10-32 NF x 7/8"

1шт.

40

K626573

WASHER

- flat, 1/4"

1шт.

41

K946374

FLASHER SWITCH

SWITCH - turn signal, Includes: Ref. 41A

1шт.

41a

K962760

BULB

- switch, internal, not shown

1шт.

42

K914091

LIGHT SWITCH

SWITCH ASSEMBLY - lights, Includes: Ref. 43

1шт.

43

K901981

KNOB

- light switch

1шт.

44

K945294

IGNITION SWITCH

KEY SWITCH - see Figure 12 for cold start switch, Includes: Ref. 45

1шт.

45

K920929

KEY

- switch

1шт.

K947482

SWITCH

ASSEMBLY - four way flasher, Includes: Ref. 46 - 48A

1шт.

46

NSS

NOT SOLD SEPARAT

SWITCH - four way flasher

1шт.

47

K950593

COVER

- switch

1шт.

48

K964913

KNOB

ASSEMBLY - includes bulb, Includes: Ref. 48A

1шт.

48a

K962760

BULB

- internal, not shown

1шт.
