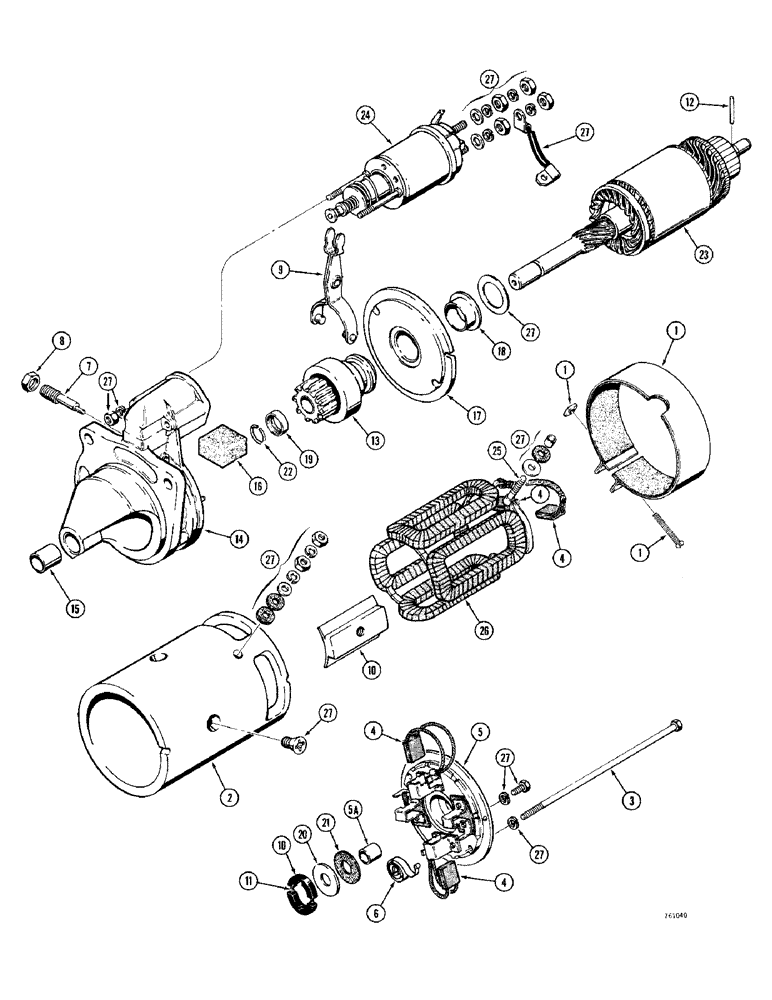

Запчасти Case 380CK (044) - K913007 STARTER (04) - ELECTRICAL SYSTEMS

K913007

X

STARTER ASSEMBLY - Lucas 26301, Includes: Ref. 1 - 27

1шт.

1

K964254

COVER

- rear band, includes hardware

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - field

1шт.

3

K963920

BOLT

- tie

2шт.

4

K962799

BRUSH, COMMUTATOR

BRUSH SET - starter, set of 4

1шт.

K963845

BASE

PLATE ASSEMBLY - end, Includes: Ref. 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - end

1шт.

5a

K963792

BUSHING

- end plate

1шт.

6

K963798

SPRING

SET - brush tension, set of 4

1шт.

7

K964256

BOLT - pivot

1шт.

8

K963928

NUT - pivot bolt

1шт.

9

K963858

LEVER

- pinion engaging

1шт.

10

NSS

NOT SOLD SEPARAT

SHOE - coil retaining

4шт.

K963857

BRAKE

KIT - brake shoes and springs, Includes: Ref. 11 and 12

1шт.

11

K963854

SPRING KIT

SPRING - brake shoe

2шт.

12

K964253

PIN

- brake shaft

1шт.

13

K963782

DRIVE

ASSEMBLY - starter

1шт.

K964255

HOUSING - starter drive, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - starter drive

1шт.

15

K963791

KIT

BUSHING - end

1шт.

16

K963890

GROMMET

- drive housing

1шт.

K964245

BRACKET

PLATE ASSEMBLY - intermediate, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE - intermediate

1шт.

18

K964191

BUSHING

-, Serial Range: plate-shaft

1шт.

19

K963851

COLLAR

- thrust

1шт.

20

K963795

WASHER - commutator end, metal

1шт.

21

K963883

SPRING KIT

WASHER - commutator end, fabric

1шт.

22

K963929

RING - retaining

1шт.

23

K963790

ARMATURE

- starter

1шт.

24

K963825

SOLENOID

- starter

1шт.

25

K962800

TERMINAL CONNECTOR

TERMINAL - field

1шт.

26

K963753

COIL ASSY.

COIL ASSEMBLY - field

1шт.

27

K962798

HARDWARE

KIT - hardware, including all nuts, washers, screws, plugs, shims, rivets and miscellaneous hardware

1шт.
