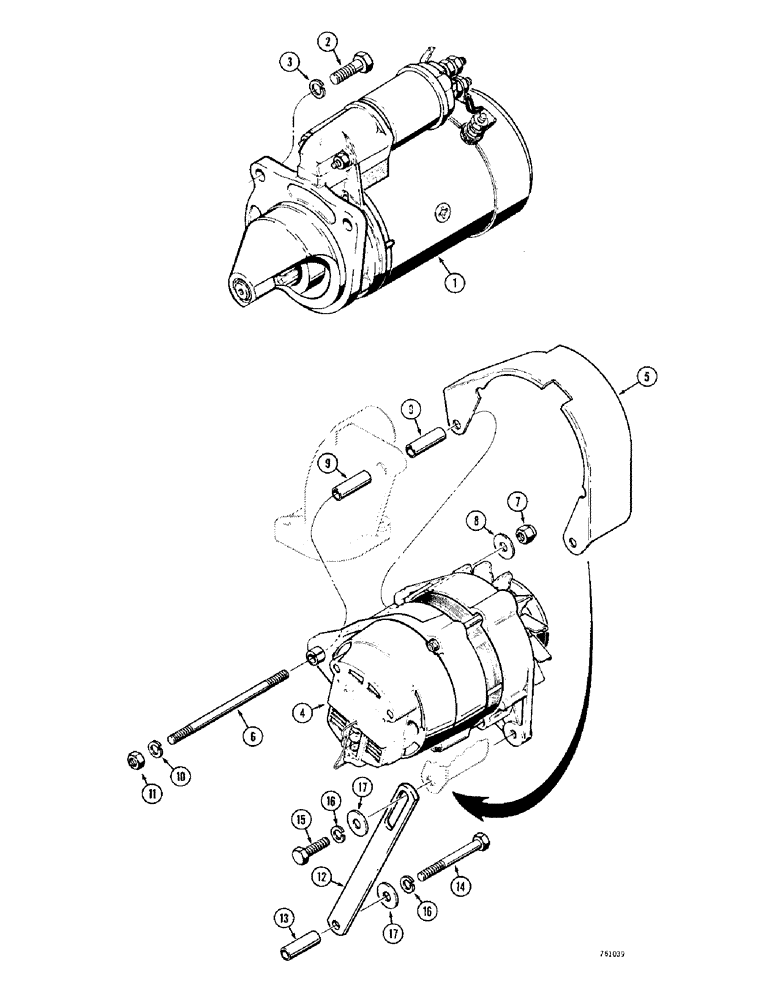

Запчасти Case 380CK (042) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

K913007

X

STARTER ASSEMBLY - parts list Figure 44

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Starter to engine Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

K925009

ALTERNATOR

ASSEMBLY - parts list Figure 46

1шт.

5

K942117

GUARD

- alternator fan and pulley

1шт.

6

K608151

STUD

- 5/16"-18 NC x 5-1/4"

1шт.

7

K964098

NUT

- hex, lock, 5/16"-18 NC, front

1шт.

8

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

9

K625700

BUSHING

SPACER - alternator bracket

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

Rear Jam, 5/16"-18, G5

1шт.

12

K947354

STRAP

- alternator adjusting

1шт.

13

K627033

BUSHING

SPACER -, Serial Range: strap-engine

1шт.

14

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Strap to engine Hex, 5/16"-18 x 2 3/4", G5

1шт.

15

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Strap to alternator Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

17

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.
