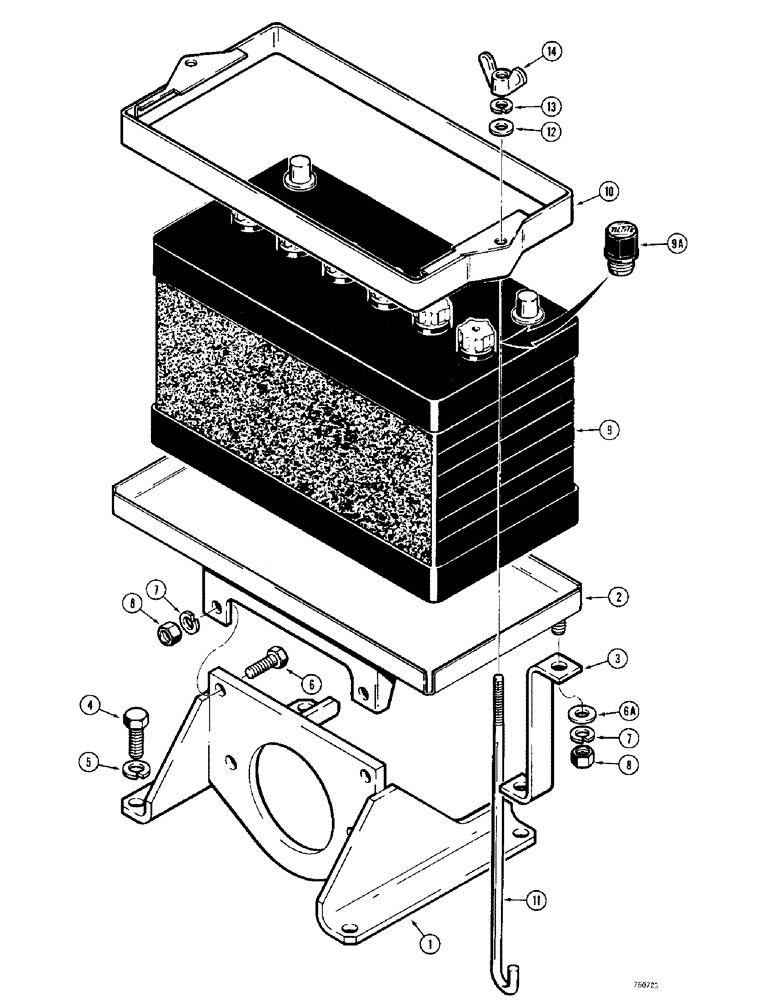

Запчасти Case 380CK (040) - BATTERY, HOLDDOWN AND BRACKETS (04) - ELECTRICAL SYSTEMS

1

K947067

MOUNTING PARTS

BRACKET - pump mounting

1шт.

2

K947068

CARRIER

- battery

1шт.

3

K947074

SUPPORT

- battery carrier

2шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-7

LOCK WASHER,7/16"

WASHER - lock, 7/16"

4шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6a

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

4шт.

9

A38411

DRY BATTERY

- 12 volt (Must be used with A60553 nonspill caps)

1шт.

When replacing battery, conventional caps must be removed from new battery and replaced by (6) A60553 nonspill caps. Nonspill caps can be removed from existing battery and reused or new nonspill caps can be ordered.

1шт.

9a

A60553

CAP

- nonspill

6шт.

10

A38808

FRAME

HOLDDOWN - battery

1шт.

11

D42052

BOLT

BOLT - hook

2шт.

12

195-521

WASHER,5/16", SAE

- plain

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

129-419

WING NUT,5/16"-18

NUT - wing

2шт.
