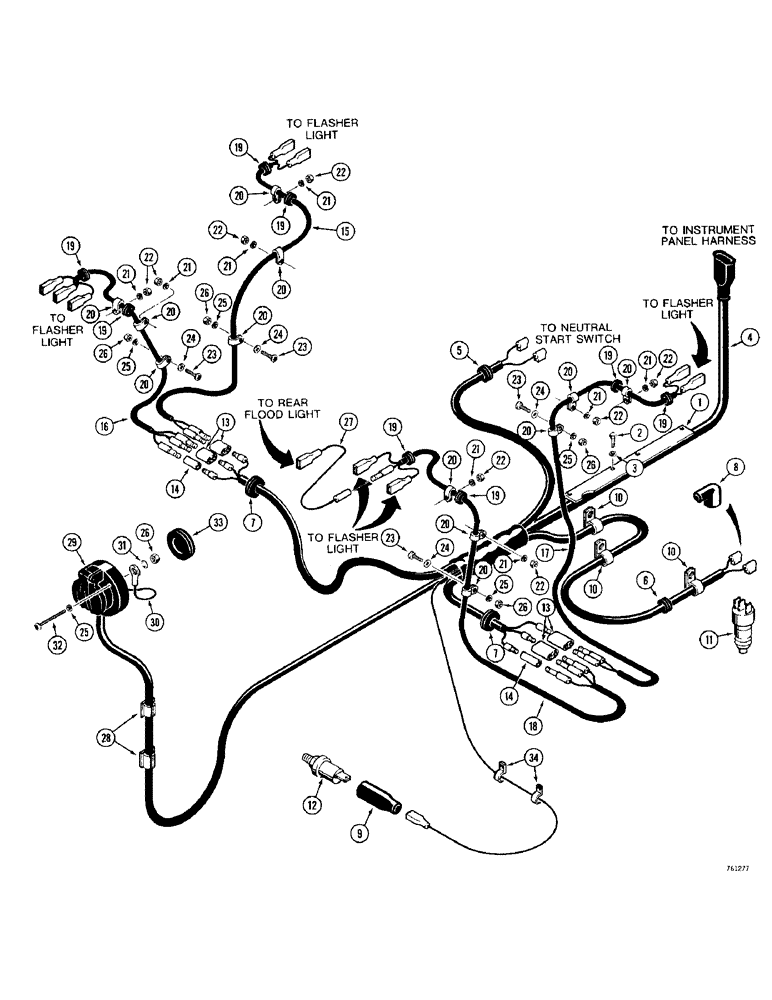

Запчасти Case 380CK (038) - ELECTRICAL WIRING, REAR HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

K945688

COVER

PLATE - rear harness cover

1шт.

2

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

4

K948072

HARNESS

- rear lights, Includes: Ref. 5 - 9

1шт.

5

K627727

GROMMET

- neutral start switch, see Figure 82 for switch

1шт.

6

K627726

GROMMET

- brake light switch wire

1шт.

7

K627725

GROMMET

- at fenders

2шт.

8

K943744

COVER

- rubber, brake light switch

1шт.

9

K923874

COVER

- rubber, filter sending unit

1шт.

10

K621633

CABLE

CLAMP - brake light switch wire

3шт.

11

K929737

SWITCH ASSY

SWITCH - brake light

1шт.

12

K921317

SENDER UNIT

SENDING UNIT - selectamatic oil filter

1шт.

13

K86230

CONNECTOR, ELEC

CONNECTOR - double, at fender base

4шт.

14

K67916

ELEC CONNECTOR

CONNECTOR - single, at fender base

2шт.

15

K945589

HARNESS

- to fender lights, L.H. front

1шт.

16

K945590

HARNESS

- to fender lights, L.H. rear

1шт.

17

K945591

HARNESS

- to fender lights, R.H. front

1шт.

18

K945592

HARNESS

- to fender lights, R.H. rear

1шт.

19

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- fender light wires

8-1шт.

20

K625000

CLIP

CLAMP - fender light wires

12шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

23

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- no. 10-32 NF x 1/2", plated

4шт.

24

K626310

WASHER

- flat, 3/16", plated

4шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

7шт.

26

K617080

NUT

- hex, no. 10-32 NF

7шт.

27

K945631

ELECTRICAL WIRE

WIRE - to rear flood light, see Figure 50

1шт.

28

K625003

CLIP

- wire, adhesive type, seat back

2шт.

29

K913566

POINT

SOCKET - trailer connection

1шт.

30

K923592

ELECTRICAL WIRE

WIRE - socket ground

1шт.

31

193-26

LOCK WASHER,Int Tooth, #10

WASHER - external tooth lock, no. 10

1шт.

32

K614950

SCREW

- no. 10-32 NF x 1-1/4

3шт.

33

K627724

GROMMET

PLUG - rubber, seat to socket bracket

1шт.

34

K621665

CLIP

CLAMP - selectamatic oil filter sending unit wire

2шт.
