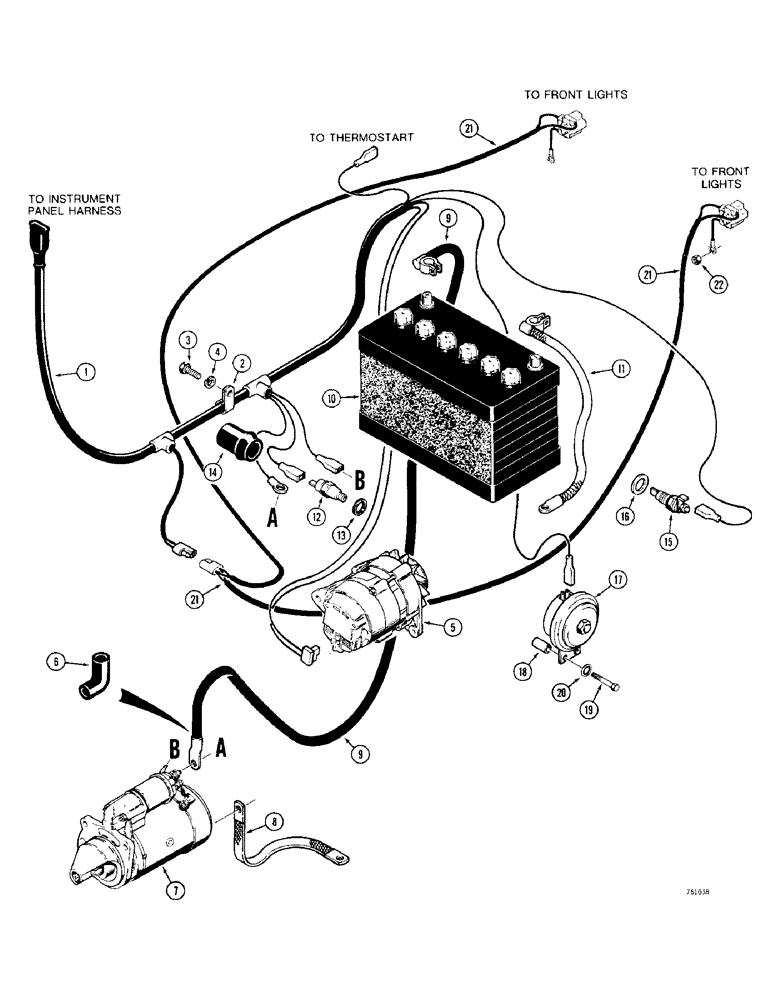

Запчасти Case 380CK (036) - ELECTRICAL WIRING, FRONT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

K949115

HARNESS

- engine

1шт.

2

K621709

CLIP

CLAMP - engine harness to engine block

1шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

5

REF

INSTRUCTION

ALTERNATOR - see Figure 46

1шт.

6

K87560

CONTACT HOUSING

COVER - rubber, starter terminal

1шт.

7

REF

INSTRUCTION

STARTER - see Figure 44

1шт.

8

K918762

CABLE

- starter to frame, ground

1шт.

9

K947407

CABLE

-, Serial Range: battery-starter

1шт.

10

REF

INSTRUCTION

BATTERY - see Figure 40

1шт.

11

K917372

CABLE

- battery ground

1шт.

12

K903851

PRESSURE SWITCH

SENDING UNIT - engine oil pressure

1шт.

13

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fiber, sending unit

1шт.

14

K947518

COVER

- rubber

1шт.

15

K921149

TEMPERATURE SENDER

SENDING UNIT - engine temperature

1шт.

16

K626444

WASHER

- copper, sending unit

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, see Figure 018

1шт.

17

K950098

HORN

- includes bracket

1шт.

18

K627006

TUBE

SPACER - horn mounting bolts

2шт.

19

K600144

BOLT

HHCS - 1/4"-20 NC x 1-3/8", plated

2шт.

20

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4"

2шт.

21

K948468

ELECTRICAL WIRE

HARNESS - front lights

1шт.

22

129-16

NUT,#8-32

Light ground terminal #8-32

2шт.
