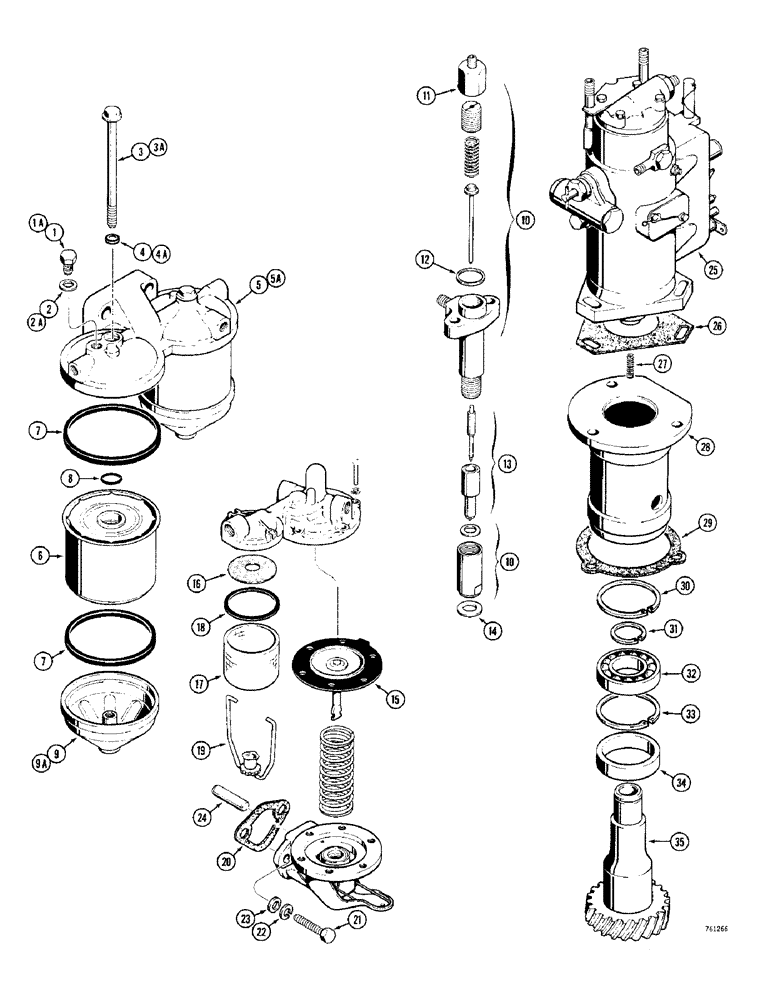

Запчасти Case 380CK (030) - FUEL FILTERS, INJECTORS AND PUMPS (03) - FUEL SYSTEM

K906708

FILTER

ASSEMBLY - fuel, Includes: Ref. 1 - 9A

1шт.

1

K963811

PLUG

- vent, CAV filters

3шт.

1a

K962348

SCREW

PLUG - vent, Puralator filters

1шт.

2

K963853

WASHER

- vent plug, CAV filters

3шт.

2a

K626850

WASHER

- vent plug, Purolator filters

1шт.

3

K964805

BOLT (SPREADER)

HHCS - 1/4"-20 NC x 2-1/8", CAV filters

2шт.

3a

K600360

BOLT

HHCS - 5/16"-18 NC x 4-3/4", Purolator filters

2шт.

4

K963895

WASHER

- special, CAV filters

2шт.

4a

K963409

RING

WASHER - special, Purolator filters

2шт.

5

K964153

COVER

HEAD - CAV filters

1шт.

5a

NSS

NOT SOLD SEPARAT

HEAD - Purolator filters

1шт.

5b

3070775R1

ADAPTER

FITTING - CAV filter ports, not shown

3шт.

6

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT - filter

1шт.

7

K960936

RING

WASHER - sealing

4шт.

8

K960937

O-RING

- filter element

2шт.

9

K964152

BASE

- CAV filters

2шт.

9a

K962264

COVER

BASE - Purolator filters

2шт.

K942175

NOZZLE CAP

INJECTOR ASSEMBLY - fuel, Includes: Ref. 10 - 14

3шт.

10

K904261

NOZZLE CAP

HOLDER ASSEMBLY - fuel injector, Includes: Ref. 11 and 12

1шт.

11

K962750

NUT - cap

1шт.

12

K963932

JOINT

WASHER - cap nut

1шт.

13

K942176

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injector

1шт.

14

K901092

WASHER

- copper

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, K915330 seal is also included as part of K964876 valve grind kit. see Figure 014 and 018

1шт.

Part of Valve Grind Gasket Kit P/N K964876, see Figure 014

1шт.

K908819

PUMP

ASSEMBLY - fuel, Includes: Ref. 15 - 19

1шт.

15

K911917

DIAPHRAGM

- fuel pump

1шт.

16

K961732

FILTER

- fuel pump

1шт.

17

K961733

BOWL

- fuel pump

1шт.

18

K961734

GASKET

- fuel bowl

1шт.

19

K961735

BRACKET

BAIL ASSEMBLY - includes screw

1шт.

20

K902136

GASKET

- fuel, Serial Range: pump-engine

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, K915330 seal is also included as part of K964876 valve grind kit. see Figure 014 and 018

1шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16"-18 NC x 1-1/4"

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

K14988

WASHER

- copper-asbestos, 5/16"

2шт.

24

K911928

PUSH ROD,9.51mm OD x 35.99mm L

- push, fuel pump

1шт.

25

K916784

PUMP

- fuel injection

1шт.

26

K68349

GASKET

- pump to bearing housing

1шт.

27

K624903

SPRING

- pump shaft location

1шт.

28

K948193

HOUSING

- bearing

1шт.

29

K907922

GASKET

-, Serial Range: housing-engine

1шт.

30

K13170

RING, SNAP

RING - retaining, upper

1шт.

31

K11128

CIRCLIP

RING - retaining, small

1шт.

32

K24489

BALL BEARING

BEARING - ball

1шт.

33

K621680

SNAP RING,2.062", Int, #206

Ring, Snap, , lower 2.062", Int, #206

1шт.

34

K620266

NEEDLE BEARING

BEARING - needle roller

1шт.

35

K912483

GEAR

- injection pump drive

1шт.
