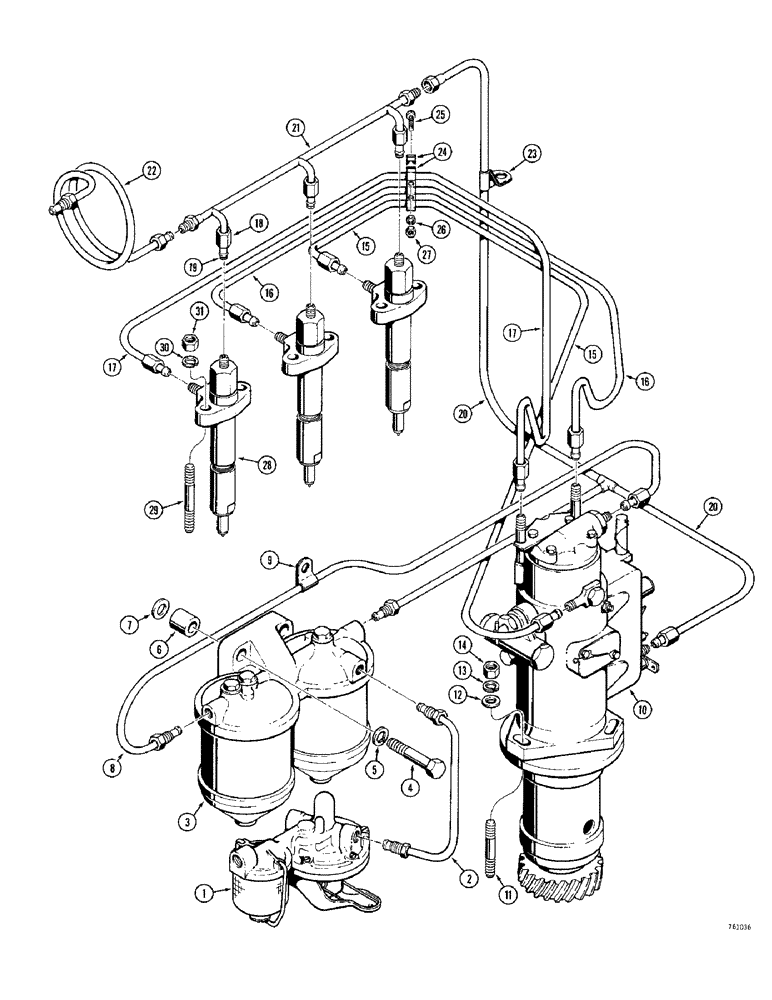

Запчасти Case 380CK (028) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP - fuel, see Figure 30 for parts list and related parts

1шт.

2

K908169

PIPE,0.25" OD x 5.594, 1.641" L

TUBE - fuel pump to filter

1шт.

3

REF

INSTRUCTION

FILTER - fuel, parts list Figure 30

1шт.

4

13-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

Filter to block

2шт.

5

192-21

LOCK WASHER,3/8"

2шт.

6

K627041

BUSHING

SPACER - filter mounting

2шт.

7

K11762

COPPER WASHER

Copper asbestos, 3/8"

2шт.

8

K908171

PIPE,0.25" OD

TUBE - filter to injection pump

1шт.

9

K621619

CLIP

CLAMP - fuel line

1шт.

10

REF

INSTRUCTION

PUMP - fuel injection, see Figure 30 for pump and pump drive parts

1шт.

11

K608121

STUD

5/16"-18 NC x 1-7/8"

3шт.

12

K19471

WASHER

5/16"

3шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

14

9635082

NUT,5/16" - 18, Gr 5

3шт.

15

K949185

PIPE,2/8" OD x 20.25" L

TUBE - to number one cylinder

1шт.

16

K949186

PIPE

TUBE - to number two cylinder

1шт.

17

K949187

PIPE

TUBE - to number three cylinder, Includes Ref. 18 and 19

1шт.

18

K900845

NUT

NUT - injection tubes

2шт.

19

K947203

FERRULE

SLEEVE - injection tubes

2шт.

20

K908173

PIPE

TUBE - leak off from pump

1шт.

21

K947325

PIPE

TUBE - leak off from injectors

1шт.

22

K948150

PIPE,0.187" OD x 4.062, 2.625" L

TUBE - to tank

1шт.

23

K621646

CLIP

CLAMP - leak off tube

1шт.

24

K908168

WASHER

CLAMP - tubes

2шт.

25

K12217

SCREW,0.185" x 5/8"

Tube clamps

2шт.

26

92-3

LOCK WASHER,#10

2шт.

27

K11109

NUT

Hex, special

2шт.

28

REF

INSTRUCTION

INJECTOR - fuel, parts list Figure 30

3шт.

29

K608107

STUD

5/16"-18 NC x 2-11/16"

6шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

31

9635082

NUT,5/16" - 18, Gr 5

6шт.
