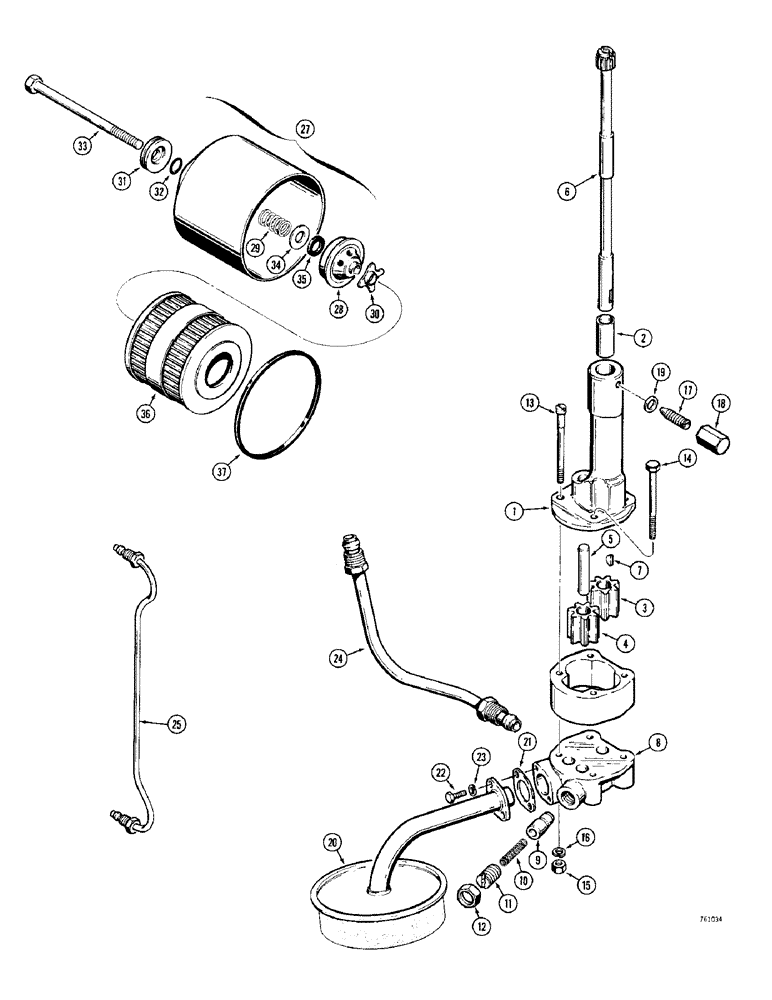

Запчасти Case 380CK (024) - OIL PUMP AND OIL FILTER, OIL PUMP (02) - ENGINE

K911963

PUMP

- oil, complete, for oil pan see Figure 74, Includes: Ref. 1 - 16

1шт.

1

K961737

BRACKET

AND HOUSING - gear

1шт.

2

K30016

BUSHING

- bracket

1шт.

3

K902058

PINION

ROTOR - driving

1шт.

4

K949997

ROTOR

- driven

1шт.

5

K902060

SPINDLE

SHAFT - driven rotor

1шт.

6

K907918

SPINDLE

SHAFT - driving rotor

1шт.

7

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(No. 405) #5, 1/8" x 5/8"

1шт.

K907921

VALVE

RELIEF VALVE ASSEMBLY, Includes: Ref. 8 - 12

1шт.

8

K907589

VALVE

COVER - relief valve

1шт.

9

K907590

PLUNGER

- relief valve

1шт.

10

K625148

SPRING

- relief valve

1шт.

11

K912301

SCREW

- adjusting

1шт.

12

K19438

LOCK NUT

- lock, 3/8" BSP

1шт.

13

K604544

FITTING

SCREW - special, 1/4"-20 NC x 3"

2шт.

14

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

2шт.

15

25-104

NUT,1/4"-20, G5

4шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

K928254

SCREW,7/16" - 14 x 1 5/16"

- set

1шт.

18

K607516

NUT

- capped, 7/16"-14 NC

1шт.

19

K14674

WASHER

- capped, 7/16"

1шт.

20

K907929

FILTER

- oil pump inlet

1шт.

21

K908048

GASKET,0.76mm Thk

- oil pump inlet

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, see Figure 018

1шт.

22

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

K908050

PIPE

TUBE - oil, Serial Range: pump-block

1шт.

25

K928267

PIPE

TUBE -, Serial Range: block-head

1шт.

K907654

CLEANER

FILTER - oil, complete, Includes: Ref. 27 - 36

1шт.

27

K903222

CLEANER

BOWL AND RELIEF VALVE ASSEMBLY, oil filter, Includes: Ref. 28 - 35

1шт.

28

K903057

VALVE

- relief, oil filter

1шт.

29

K903056

SPRING

oil filter

1шт.

30

K903058

PLATE

- locating, oil filter

1шт.

31

K903053

COLLAR

oil filter

1шт.

32

K903054

SEAL

RING - sealing, oil filter

1шт.

33

K903052

BOLT

- 7/16"-14 NC x 5-3/8", oil filter

1шт.

34

K19473

WASHER

- 7/16", oil filter

1шт.

35

K903075

WASHER

- sealing, 7/16", oil filter

1шт.

36

K902321

FILTER

ELEMENT - oil filter (Purolator) See alternate filter below

1шт.

36

K902125

FILTER, ELEMENT

ELEMENT - oil filter (AC-Delco) See alternate filter above

1шт.

37

K87644

RING

- sealing, oil filter

1шт.
