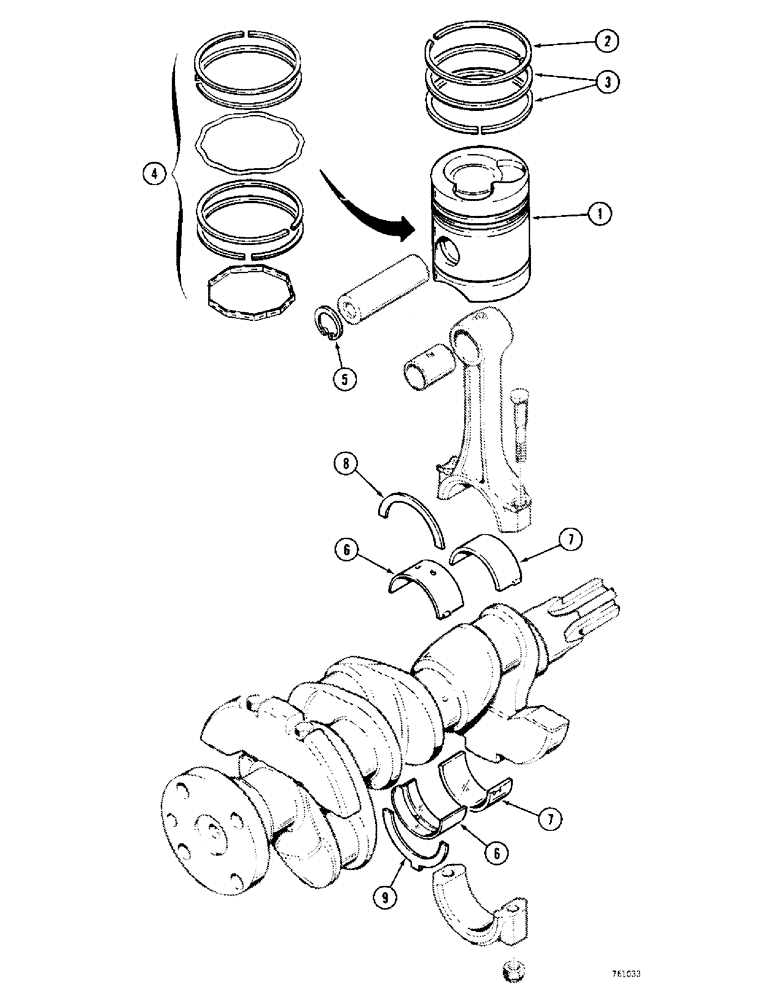

Запчасти Case 380CK (022) - PISTONS, RINGS AND BEARING KITS, OPTIONAL SIZES (02) - ENGINE
№
Артикул
Название
Примечание
Количество
K949719
PISTON
ASSEMBLY - 0.020" (0.508 MM) Oversize, Includes: Ref. 1 - 5
3шт.
1
NSS
NOT SOLD SEPARAT
PISTON
1шт.
2
K943885
RING, PISTON
RING - compression, first groove
1шт.
3
K943886
RING, PISTON
RING - compression, second and third groove
2шт.
4
K917412
PISTON
RING - oil control
1шт.
5
K34501
RING, SNAP
RING - retaining, piston pin
2шт.
K949720
PISTON
ASSEMBLY - 0.040" (1.016 MM) Oversize, Includes: Ref. 1 - 5
3шт.
1
NSS
NOT SOLD SEPARAT
PISTON
1шт.
2
K943888
RING, PISTON
RING - compression, first groove
1шт.
3
K943889
RING, PISTON
RING - compression, second and third groove
2шт.
4
K917415
PISTON
RING - oil control
1шт.
5
K34501
RING, SNAP
RING - retaining, piston pin
2шт.
K964731
RING
SET - piston re-ring, standard size
3шт.
K964730
RING
SET - piston re-ring, 0.020" (0.508 MM) Oversize
3шт.
K964729
RING
SET - piston re-ring, 0.040" (1.016 MM) Oversize
3шт.
K962935
BUSHING
KIT - main bearing and rod bearing, standard size, Includes: Ref. 6 and 7
1шт.
6
K928540
HALF-BEARING, CRANKS
BEARING - main, halves
8шт.
7
K911904
HALF-BEARING, CRANKS
BEARING - connecting rod, halves
6шт.
K962936
BEARING
KIT - main bearing and rod bearing, 0.010" (0.254 MM) Undersize, Includes: Ref. 6 and 7
1шт.
6
K928557
BEARING LINER
BEARING - main, halves
8шт.
7
K912638
HALF-BEARING, CRANKS
BEARING - connecting rod, halves
6шт.
K962937
CRANKSHAFT BEARING
KIT - main bearing and rod bearing, 0.020" (0.508" MM) Undersize, Includes: Ref. 6 and 7
1шт.
6
K928558
HALF-BEARING, CRANKS
BEARING - main, halves
8шт.
7
K912639
HALF-BEARING, CRANKS
BEARING - connecting rod, halves
6шт.
K962938
BEARING SET
KIT - main bearing and rod bearing, 0.030" (0.762 MM) Undersize, Includes: Ref. 6 and 7
1шт.
6
K928559
HALF-BEARING, CRANKS
BEARING - main, halves
8шт.
7
K913941
HALF-BEARING, CRANKS
BEARING - connecting rod, halves
6шт.
8
K928560
THRUST WASHER
WASHER - thrust, upper, 0.005" (0.127 MM) Oversize
2шт.
8
K928562
WASHER, THRUST
WASHER - thrust, upper, 0.20" (0.508 MM) Oversize
2шт.
9
K928561
WASHER
- thrust, lower, 0.005" (0.127 MM) Oversize
2шт.
9
K928563
RING
WASHER - thrust, lower, 0.020" (0.508 MM) Oversize
2шт.
Выбрано товаров: 31
