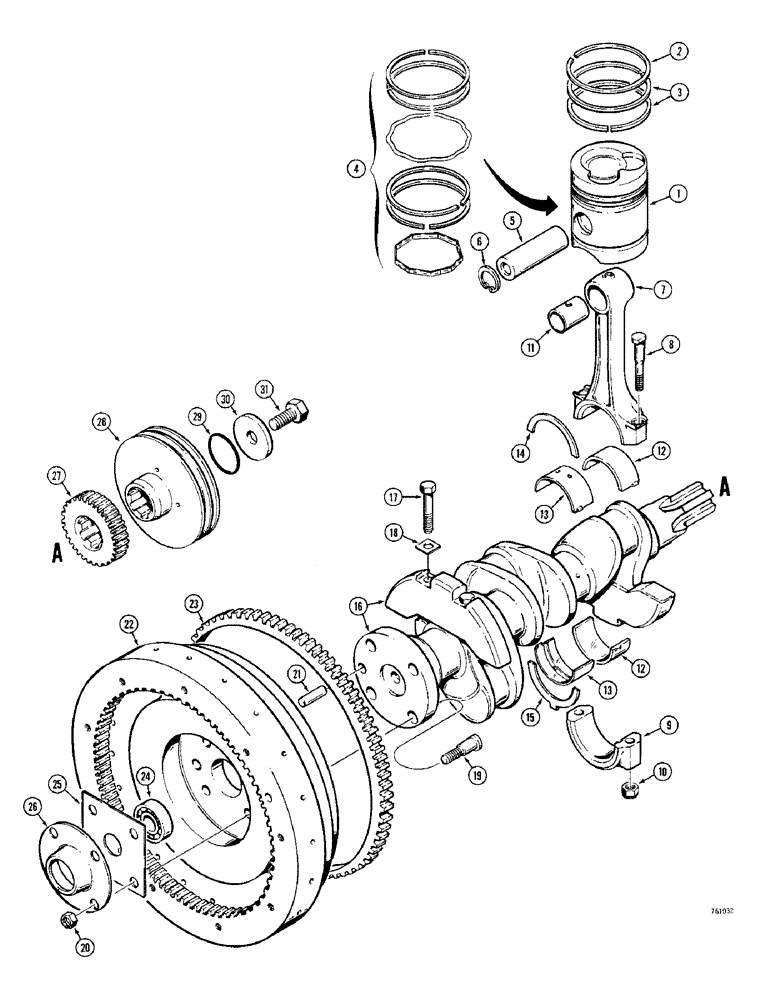

Запчасти Case 380CK (020) - CRANKSHAFT, FLYWHEEL AND PISTONS (02) - ENGINE

K949474

PISTON & RINGS KIT

PISTON ASSEMBLY, Includes: Ref. 1 - 6

3шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

K943881

RING, PISTON

RING - compression, first groove

1шт.

3

K943882

RING, PISTON

RING - compression, second and third groove

2шт.

4

K917409

SCRAPER

RING - oil control

1шт.

5

K904370

PIN

- piston

1шт.

6

K34501

RING, SNAP

RING - retaining, piston pin

2шт.

K80043

ROD, CONNECTING

CONNECTING ROD AND CAP ASSEMBLY, Includes: Ref. 7 - 11

3шт.

7

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

8

K905198

BOLT

- special, connecting rod, 7/16" BSF

2шт.

9

NSS

NOT SOLD SEPARAT

CAP - connecting rod

1шт.

10

K623151

LOCK NUT

- special lock, 7/16" BSF

2шт.

11

K31669

BEARING

BUSHING - piston pin

1шт.

12

K911904

HALF-BEARING, CRANKS

BEARING - connecting rod, halves

6шт.

One part number equals a set of two halves. Quantity required is half of what is shown in the text.

1шт.

K961726

CRANKSHAFT

ASSEMBLY, Includes: Ref. 13 - 18

1шт.

13

K928540

HALF-BEARING, CRANKS

BEARING - main, halves

8шт.

14

K928542

SET

WASHER - thrust, upper

2шт.

15

K928543

SET

WASHER - thrust, lower

2шт.

16

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

17

K915423

BOLT

- 3/8"-16 NC x 2-1/2", balance weights

4шт.

18

K626372

WASHER

- special tab

4шт.

19

K903431

STEP BOLT

- special, flywheel to crankshaft, 7/16"-20 NF x 1-11/16"

4шт.

20

25-117

NUT,7/16"-20, G5

- 7/16"-20 NF

4шт.

21

K10629

PIN

DOWEL -, Serial Range: crankshaft-flywheel

1шт.

K910150

FLYWHEEL

ASSEMBLY, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.

23

K36134

GEAR

- ring, flywheel

1шт.

24

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

BEARING - ball, flywheel

1шт.

25

K910883

WASHER

PLATE - flywheel retainer

1шт.

26

K912323

HOUSING

DISC - locating

1шт.

27

K907329

GEAR

- crankshaft

1шт.

28

K947350

PULLEY

- crankshaft

1шт.

29

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- crankshaft pulley

1шт.

One K15594 O-ring is included in K964877 engine overhaul gasket kit. See Figure 018.

1шт.

30

K907328

WASHER

- crankshaft pulley

1шт.

31

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

HHCS - 5/8"-18 NF x 1-1/2"

1шт.
