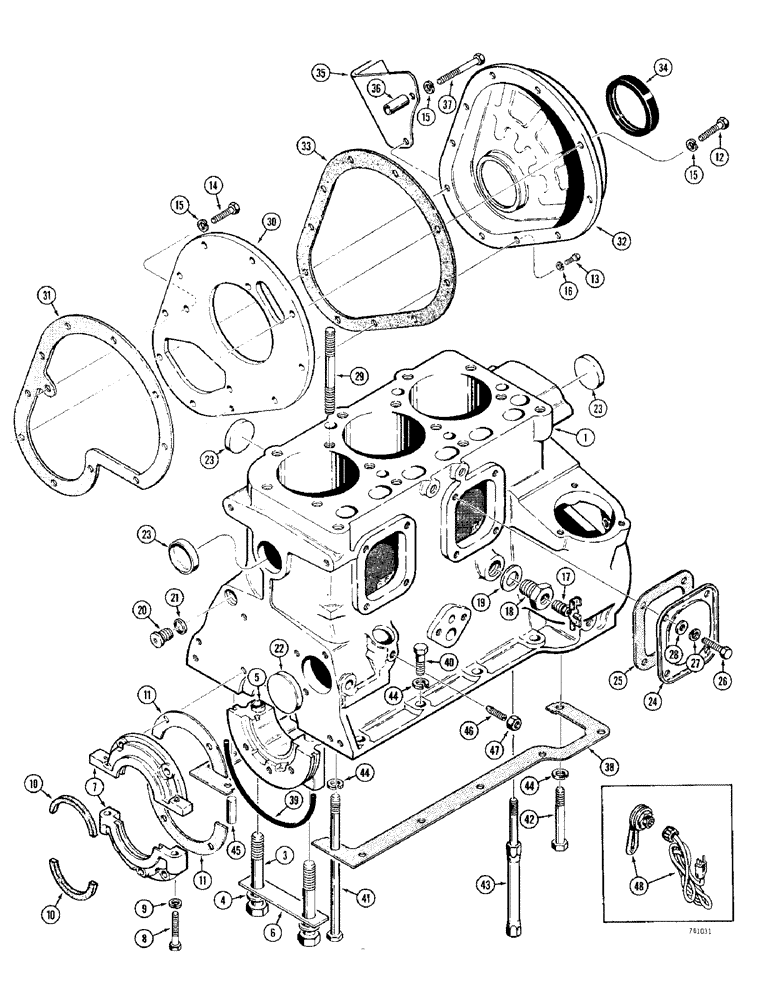

Запчасти Case 380CK (018) - CYLINDER BLOCK AND COVERS (02) - ENGINE

1

K963635

BLOCK

- cylinder, includes bearing caps, Includes: Ref. 2 - 6

1шт.

2

K964857

LINER, ENGINE CYLIND

SLEEVE - cylinder, if used, not illustrated

3шт.

3

K909564

STEP BOLT

- special, main bearing caps

8шт.

4

K929560

BEARING WASHER

WASHER - flat, special

8шт.

5

K907322

RING

- dowel, main bearing caps

8шт.

6

K626376

SHEET

RETAINER - main bearing cap bolts

4шт.

K964844

HOUSING

RETAINER ASSEMBLY - oil packing, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - less packing

1шт.

8

K606558

SCREW

BOLT - 5/16"-18 NC x 1-1/2"

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

K921611

OIL SEAL

PACKING - oil retaining

2шт.

11

K950938

GASKET,0.18mm Thk

- oil retainer

2шт.

12

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

7шт.

13

13-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

HHCS - 1/4"-20 NC x 3/8"

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

13шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

K622060

PLUG, DRAIN

FITTING - draincock valve

1шт.

18

K922093

ADAPTER

FITTING - adapter, draincock valve

1шт.

19

K30421

SEALING WASHER

- sealing, draincock valve

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, K915330 seal is also included as part of K964876 valve grind kit. see Figure 014 and 018

1шт.

20

K609440

PLUG

- 5/8"-11 NC, oil passage

1шт.

21

K15512

WASHER

- copper, 5/8"

1шт.

22

41-33

PLUG,Exp, 2 1/16"

- Welsh, 2-1/16", camshaft bore

1шт.

23

K623797

PLUG

- core, 1-3/4"

4шт.

24

K907332

TAPPET

COVER - tappet

2шт.

25

K907333

GASKET

- tappet cover

2шт.

Part of Engine Overhaul Gasket Kit P/N K964877, K915330 seal is also included as part of K964876 valve grind kit. see Figure 014 and 018

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

27

K19471

WASHER

- special, 5/16"

8шт.

28

K14988

WASHER

- copper asbestos, 5/16"

8шт.

29

K906538

STUD

- to cylinder head, 4-7/8" (124 MM) long

4шт.

29

K608505

STUD,1/2" x 7/16"

STUD - to cylinder head, 5-5/16" (135 MM) long

2шт.

30

K907297

CARRIER

PLATE - carrier

1шт.

31

K907326

GASKET

- carrier plate

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, K915330 seal is also included as part of K964876 valve grind kit. see Figure 014 and 018

1шт.

32

K907225

COVER

- timing gear

1шт.

33

K907327

GASKET

- timing gear cover

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, K915330 seal is also included as part of K964876 valve grind kit. see Figure 014 and 018

1шт.

34

K623448

SEAL

- oil, timing gear cover

1шт.

35

K914428

FENDER

GUARD - crankshaft pulley

1шт.

36

K910610

BUSHING

SPACER

2шт.

37

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

38

K907582

GASKET

- block to frame, R.H.

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, K915330 seal is also included as part of K964876 valve grind kit. see Figure 014 and 018

1шт.

38

K907583

GASKET

- block to frame, L.H.

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, K915330 seal is also included as part of K964876 valve grind kit. see Figure 014 and 018

1шт.

39

K907584

SEAL

- bearing caps

2шт.

Part of Engine Overhaul Gasket Kit P/N K964877, K915330 seal is also included as part of K964876 valve grind kit. see Figure 014 and 018

1шт.

40

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

9шт.

41

13-6132

BOLT,Hex, 3/8" - 16 x 8-1/4", Gr 5

- special, 3/8"-16 NC x 8-1/4"

3шт.

42

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8"-16 NC x 3"

1шт.

43

K914504

BOLT,Spcl, 3/8" - 16 - 7/16" x 8 1/8"

- special, 3/8"-16 NC

1шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

45

K621834

PIN

DOWEL -, Serial Range: frame-block

2шт.

46

928265

SCREW - tachometer drive locating

1шт.

47

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

48

K962705

HEATER

- block, if used

1шт.

K964877

ENGINE GASKET KIT

KIT - engine overhaul gasket, Includes: Ref. 19, 25, 31, 33, both Ref. 38's, Ref. 39, and parts in Figures 008, 010, 014, 016, 020, 024, 030, 036 and 074

1шт.
