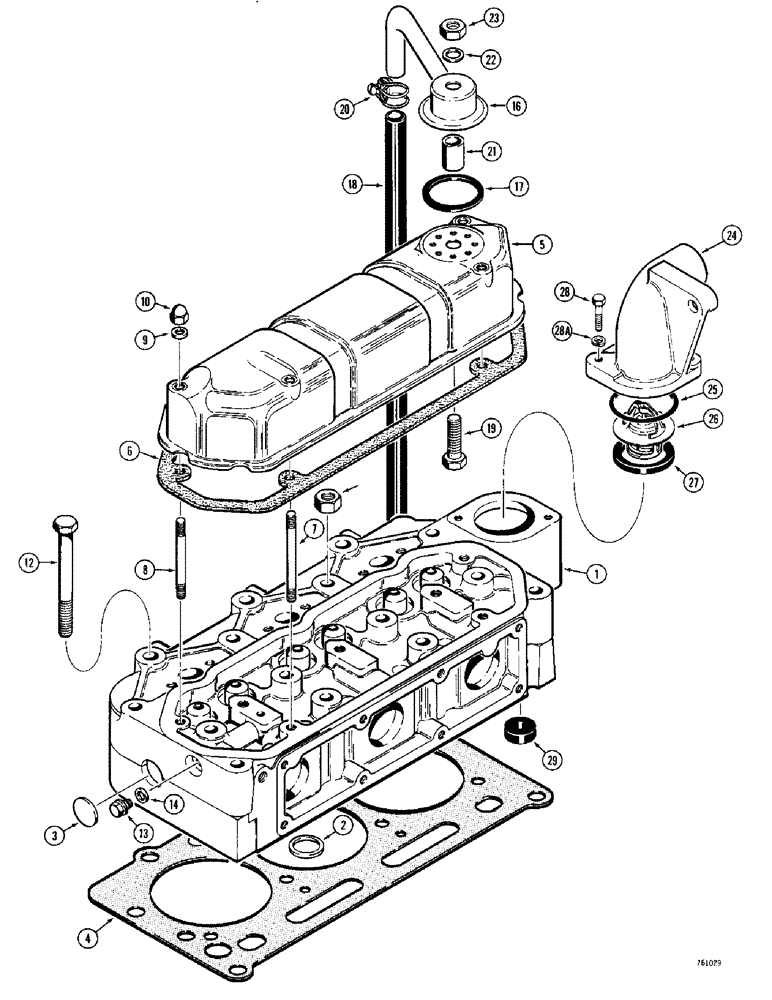

Запчасти Case 380CK (014) - CYLINDER HEAD AND COVER (02) - ENGINE

1

K962566

CYLINDER

HEAD - cylinder, Includes: Ref. 2 and 3

1шт.

2

K921246

INSERT

- intake valve seat

3шт.

2

K921247

INSERT

- exhaust valve seat

3шт.

3

K623810

PLUG

- Welch, 1"

2шт.

4

K949874

GASKET

-, Serial Range: head-block

1шт.

Part of Valve Grind Gasket Kit P/N K964876

1шт.

5

K921488

COVER

- cylinder head

1шт.

6

K907338

GASKET,3.97mm Thk

- cylinder head cover

1шт.

Part of Valve Grind Gasket Kit P/N K964876

1шт.

7

K608118

STUD

- 5/16"-18 NC x 3-7/16"

2шт.

8

K608111

STUD

- 5/16"-18 NC x 3"

2шт.

9

K14988

WASHER

- copper asbestos, 5/16"

4шт.

Part of Valve Grind Gasket Kit P/N K964876

1шт.

10

K607252

NUT

- domed, 5/16"-18 NC

4шт.

11

K617594

NUT

- special, 1/2"-20 NF

6шт.

12

K600870

BOLT

- special, 1/2"-13 NC x 4-1/4"

9шт.

13

K19591

PLUG

- flanged, 1/8" BSP

1шт.

14

K16732

WASHER

- copper, 3/8"

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, see Figure 018

1шт.

15

RESERVED

1шт.

16

K921489

COVER

- breather

1шт.

17

K626901

O-RING,40554" ID x 40575" OD x 0.12"

- breather cover

1шт.

Part of Valve Grind Gasket Kit P/N K964876

1шт.

18

K947667

PIPE

WASHER - special

1шт.

19

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

1шт.

20

214-107

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose

1шт.

21

K945433

BUSHING

SPACER - breather

1шт.

22

K626443

WASHER

- copper, 1/2"

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, see Figure 018

1шт.

23

25-148

JAM NUT,Jam, 1/2"-13, G5

- lock, 1/2"-13 NC

1шт.

24

K947344

PIPE

OUTLET - water

1шт.

25

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk, Outlet seal

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, see Figure 018

1шт.

26

K900368

THERMOSTAT

1шт.

27

K910411

GASKET

- thermostat

1шт.

Part of Engine Overhaul Gasket Kit P/N K964877, see Figure 018

1шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

28a

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

29

K915330

SEALING RING

SEAL - rubber, water, Serial Range: pump-head

1шт.

Part of Valve Grind Gasket Kit P/N K964876

1шт.

K964876

KIT, ENGINE TOP GASK

KIT - valve grind gasket, Includes: Ref. 4, 6, 9, 17 and 29, all items of this kit are also included in K964877 engine overhaul gasket kit

1шт.
