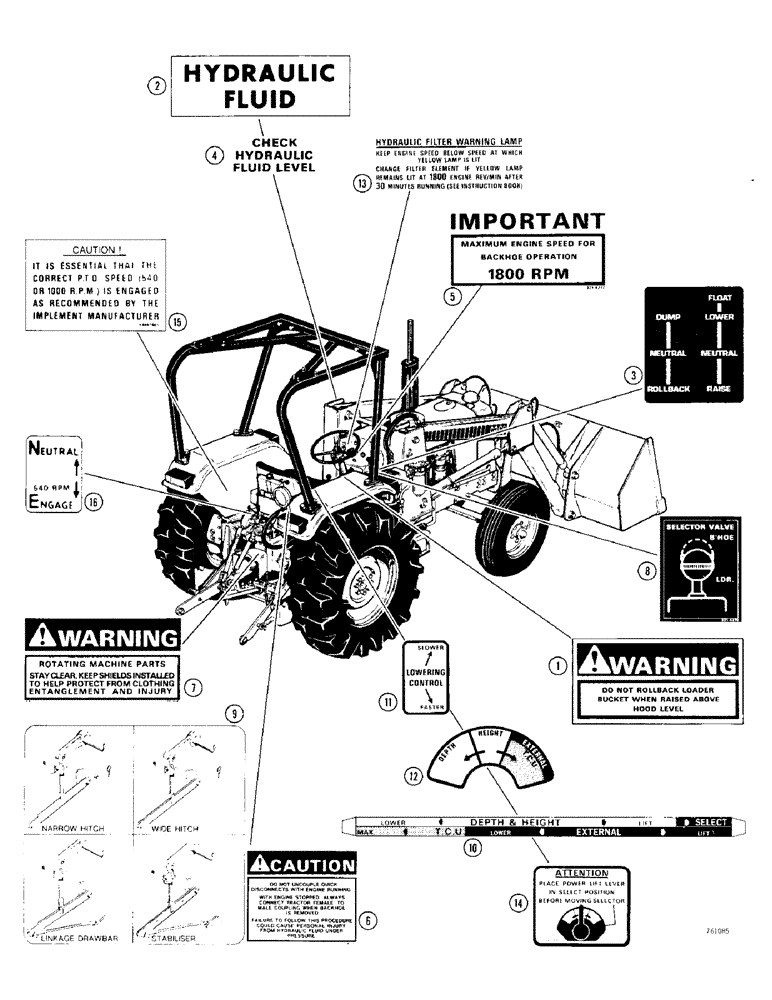

Запчасти Case 380CK (206) - DECALS, EQUIPMENT INSTRUCTION (09) - CHASSIS/ATTACHMENTS

D77649

KIT

- decal, 380CK loader/landscaper, also includes decals on Figure 204, Inlcudes: Ref. 1 - 16

1шт.

1

321-3050

DECAL

- warning, rollback

1шт.

2

321-229

DECAL

- hydraulic fluid

1шт.

3

321-1230

DECAL

- loader control

1шт.

4

321-2733

DECAL

- check hydraulic fluid level

1шт.

5

321-4277

DECAL - RPM for backhoe

1шт.

6

321-4395

DECAL

- hydraulic coupling

1шт.

7

321-3710

DECAL

- PTO warning

1шт.

8

321-4276

DECAL

- backhoe selector valve, if used

1шт.

9

K943645

DECAL

- hitch linkage

1шт.

10

K915178

DECAL

- hitch instruction

1шт.

11

K917242

DECAL

- lowering control

1шт.

12

K915179

DECAL

- selector panel

1шт.

13

K921368

DECAL

- hydraulic filter warning lamp

1шт.

14

K915177

PLATE

DECAL - hydraulic lift control

1шт.

15

K949760

DECAL

- PTO unit

1шт.

16

K923336

DECAL

- PTO control

1шт.
