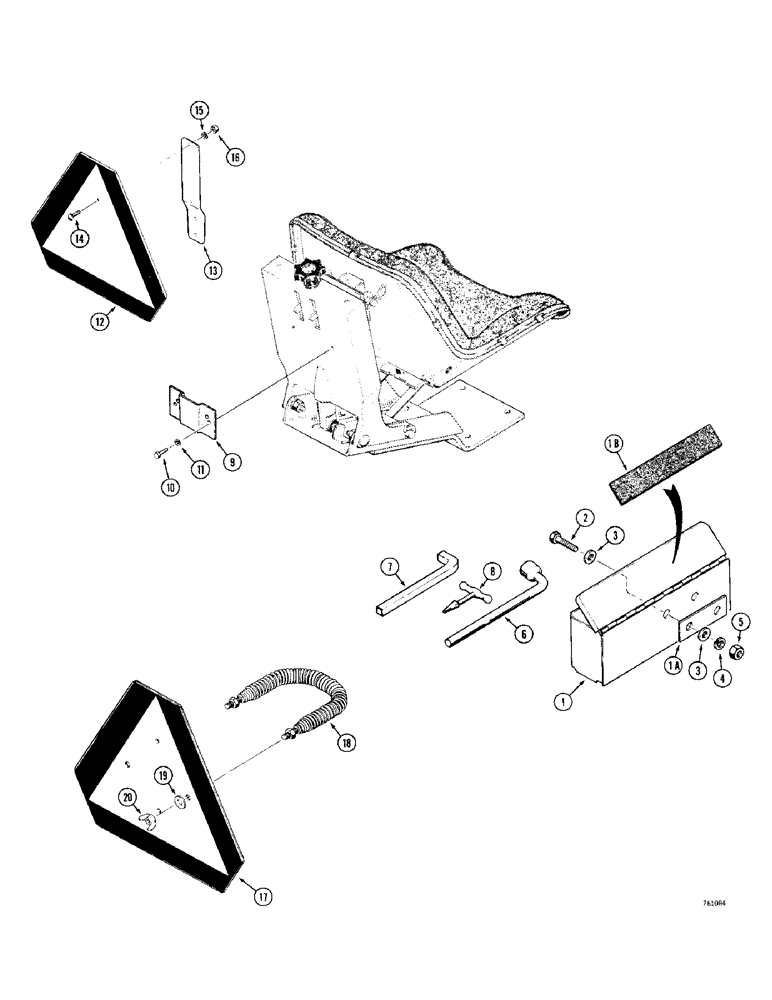

Запчасти Case 380CK (202) - TOOL BOX, TOOLS AND SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

1

K916389

BOX, TOOL

TOOL BOX

1шт.

1a

K946776

PLATE

- tool box mounting

1шт.

1b

D55216

PAD,2" x 9"

STRIP - anti-slip, if used

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

195-104

WASHER,3/8"

- flat, , plated, special 3/8"

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

K38618

WHEEL

WRENCH - wheel lug

1шт.

7

K39426

OPEN END WRENCH

WRENCH - drain plug

1шт.

8

K946448

GRIP

KEY - hood lock

1шт.

9

K946395

SOCKET/RECEPTACLE

SOCKET - SMV emblem, seat back

1шт.

10

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

A59450

WARNING SIGN

EMBLEM ASSEMBLY - SMV, if used

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - SMV

1шт.

321-1751

DECAL

- SMV emblem

1шт.

13

NSS

NOT SOLD SEPARAT

BRACKET - emblem

1шт.

14

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head, no. 10-24 NC x 1/2"

2шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, no. 10-24 NC, plated

2шт.

17

D52581

TRAFFIC SIGN

EMBLEM - SMV, backhoe models

1шт.

321-1751

DECAL

- SMV emblem

1шт.

18

D52564

SPRING

- mounting

1шт.

19

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

20

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.
