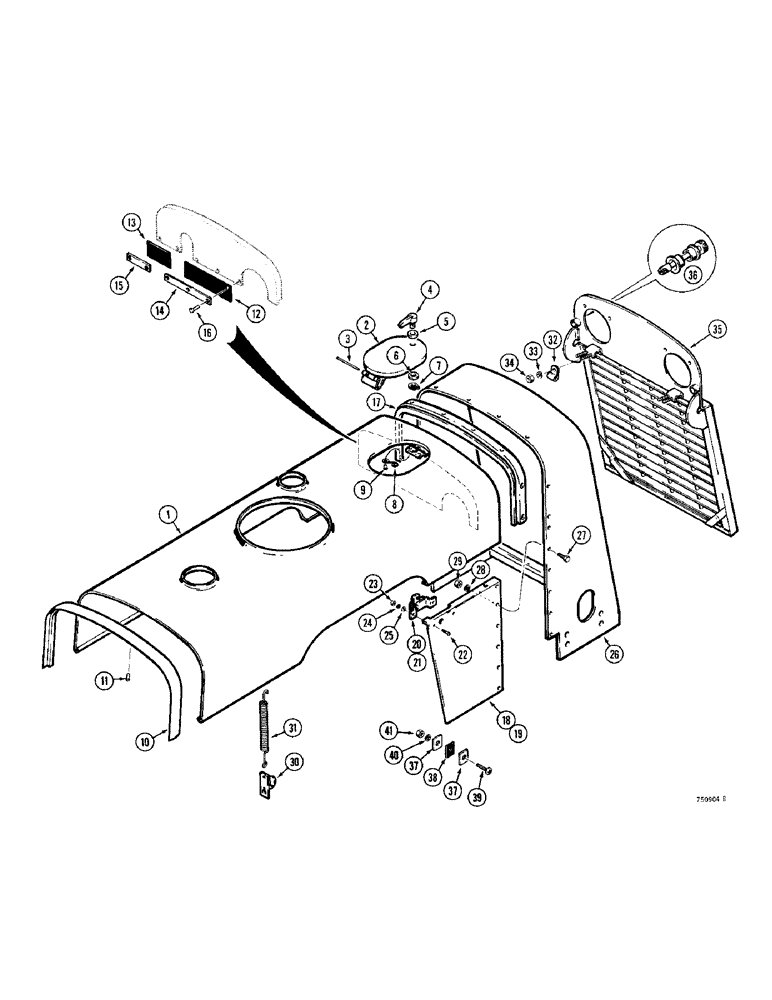

Запчасти Case 380CK (200) - HOOD, GRILLE AND RADIATOR SHROUD (09) - CHASSIS/ATTACHMENTS

K964889

HOOD

ASSEMBLY, Inlcudes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOOD

1шт.

K962015

COVER

- hatch, Inlcudes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

COVER

1шт.

3

K914557

SPRING

PIN - hatch pivot

1шт.

4

K942158

LEVER

1шт.

5

K626956

WASHER

- fiber, 7/16"

1шт.

6

K626899

SHIM

WASHER - brass, 7/16"

1шт.

7

A19811

CIRCLIP,#43, .375" Dia, E-Type

RING, Retaining, #43, .375" Dia, E-Type

1шт.

8

K917749

FASTENER

SPRING - hatch fastener

1шт.

9

K11405

RIVET

- 1/8" x 3/8"

2шт.

10

K914063

BEAD

EDGE - trim

1шт.

11

K624151

RIVET

- 1/8" x 1/8", edge trim

11шт.

12

K924651

BEAD

STRIP - rubber, center

1шт.

13

K924652

STRIP

- rubber, side

1шт.

14

K924653

STRIP

CLAMP - center strip

1шт.

15

K924654

STRIP

CLAMP - side strip

1шт.

16

K624153

RIVET

- 1/8" x 1/4"

5шт.

K949183

HOOD

SHROUD AND SIDE PANEL ASSEMBLY, Inlcudes: Ref. 17 - 29

1шт.

17

K947690

SUPPORT

- flange, hood to radiator shroud

1шт.

18

K948863

PLATE

PANEL - side, R.H.

1шт.

19

K948862

PLATE

PANEL - side, L.H.

1шт.

20

K915758

LOCK

- R.H.

1шт.

21

K915759

LOCK

- L.H.

1шт.

22

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- no. 10-32 NF x 1/2", plated

4шт.

23

K617080

NUT

- no. 10-32 NF, plated

4шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

25

K626310

WASHER

- flat, 3/16", plated

4шт.

26

K948865

STRAP

SHROUD - radiator

1шт.

27

131-1

LOCK NUT,1/4"-28, GB

HHCS - 1/4"-20 NC x 1/2", plated

20шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

20шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

20шт.

K900388

NO LONGER SERVICED

LATCH ASSEMBLY - rear, Inlcudes: Ref. 30 and 31

1шт.

30

K88680

GRIP

- finger

1шт.

31

K24728

SPRING

- latch

1шт.

K949180

GRILLE

AND HEADLAMP ASSEMBLY, Inlcudes: Ref. 32 - 36

1шт.

K915874

HEADLAMP

ASSEMBLY - see Figure 50

2шт.

32

K621644

CLIP

- lamp

2шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

34

129-16

NUT,#8-32

2шт.

35

K947687

GUARD

GRILLE ASSEMBLY - less headlamps

1шт.

36

K921811

FASTENER

- grille

2шт.

37

K949087

PLATE - side, Serial Range: panel-frame

4шт.

38

K949088

CUSHION - side panel to frame plates

2шт.

39

K606503

X

SCREW - special, 1/4"-20 NC x 7/8"

2шт.

40

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.
