Запчасти Case 380CK (198) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

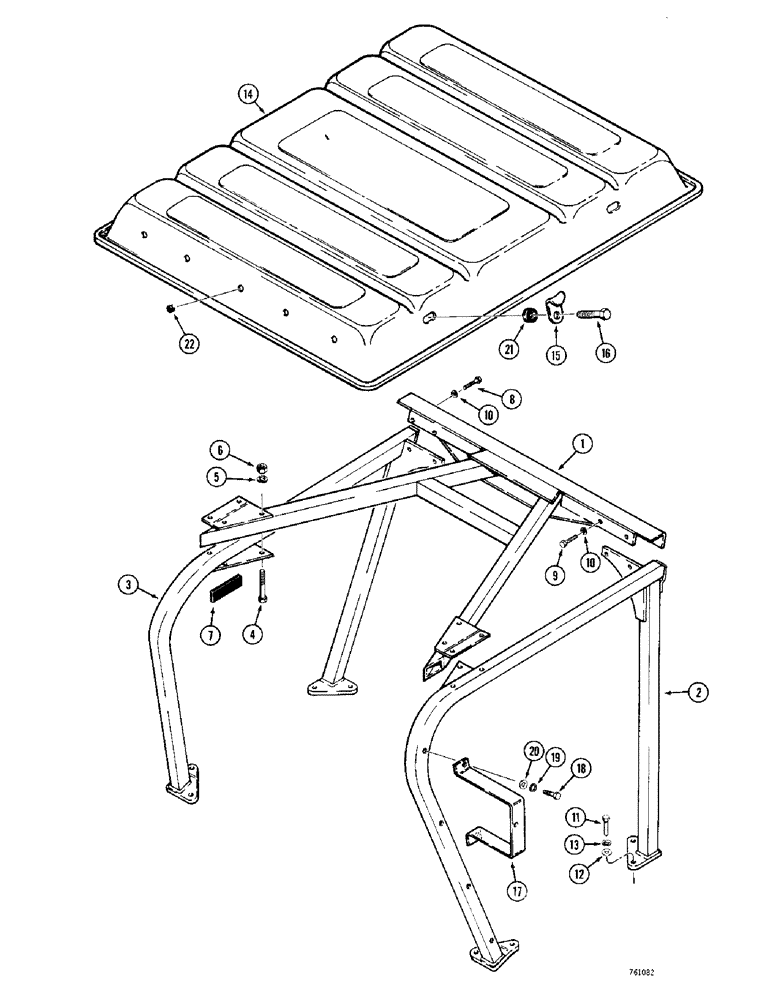

Схема запчастей Case 380CK - (198) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

K770710

FRAME

TOP - frame

1шт.

2

K772692

FRAME

SIDE - frame, R.H.

1шт.

3

K772691

FRAME

SIDE - frame, L.H.

1шт.

4

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Side frames to top Hex, 1/2"-13 x 3 1/4", G5

8шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

7

K772174

PAD

PLATE - seating

2шт.

8

K691817

SCREW

HHCS - 5/8"-11 NC x 1-1/2", side, Serial Range: frames-top

2шт.

9

K603274

SCREW

HHCS - 5/8"-11 NC x 1-3/4", side, Serial Range: frames-top

4шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

11

K603274

SCREW

HHCS - 5/8"-11 NC x 1-3/4", side, Serial Range: frames-fenders

8шт.

12

K691826

WASHER

- special, 5/8"

8шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

K772681

ROOF

- frame

1шт.

15

K772319

BRACKET

- lifting

4шт.

16

K773277

BOLT

- special, 1/2"-13 NC, Serial Range: roof-frame

4шт.

17

D77287

BRACKET - rear flood light, if used

1шт.

18

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

20

195-102

WASHER,1/4"

flat, plated 1/4"

2шт.

21

K691857

WASHER

GROMMET - rubber

4шт.

22

K691959

GROMMET

PLUG - rubber

5шт.

23

K691965

COLLAR

BLOCK - rubber, used under roof, not shown

3шт.

Выбрано товаров: 23
