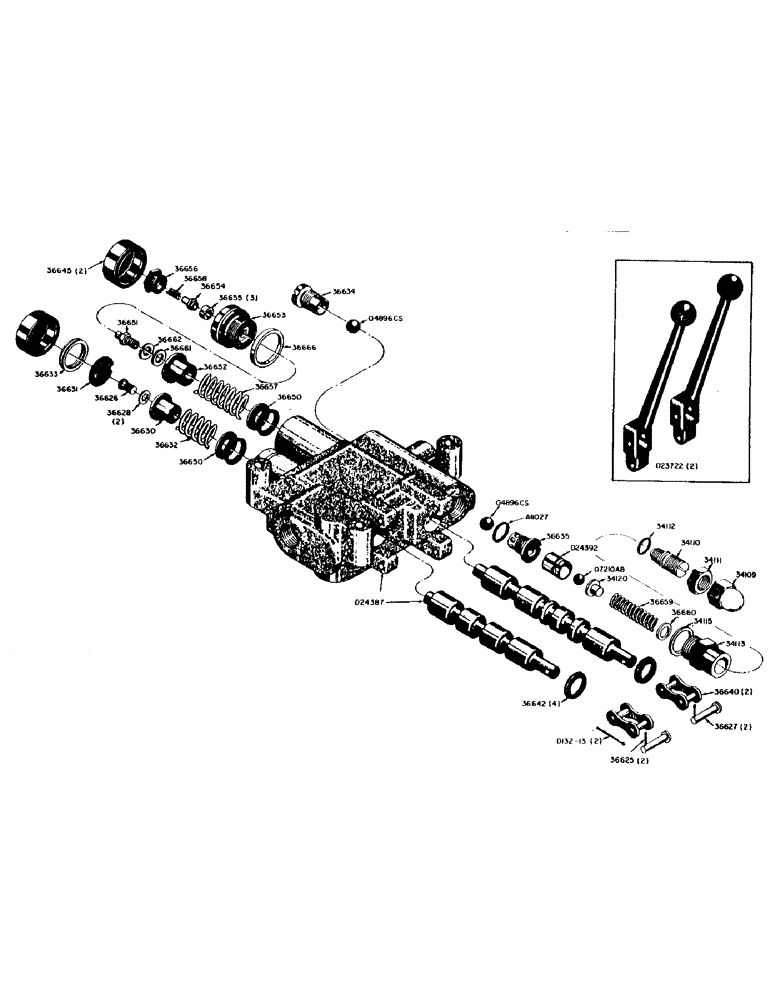

Запчасти Case UTILITY (14) - 38256 LOADER HYDRAULIC CONTROL VALVE
№
Артикул
Название
Примечание
Количество
A11027
GASKET
SEAL - "O" ring, valve seat
1шт.
211-13
BALL,1/2" Dia
- relief valve (Replaces O7210AB) 1/2" Dia
1шт.
O8416AB
X
SEAL - "O" ring, valve seat (Use A11027)
1шт.
O4896CS
BALL - check
2шт.
5465
HOUSING AND SPOOLS - matched set (Use D24387 - see Figure 16)
1шт.
34109
CAP - dust, relief valve
1шт.
34110
ADJUSTMENT SCREW
- adjusting, relief valve
1шт.
34111
X
NUT - jam, relief valve adjusting screw
1шт.
238-5111
O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro
SEAL - "O" ring, adjusting screw
1шт.
34113
BODY
- relief valve
1шт.
34115
GASKET
- relief valve body
1шт.
34118
X
SEAL - "O" ring, valve seat (Use A11027)
1шт.
CAS34120
BUSHING
SPACER - relief valve spring
1шт.
36625
X
PIN - cotter, lever pin (5/64" x 1/2")
2шт.
75-48
SCREW,Rd, 1/4" - 20 x 1/2"
BOLT - centering spring
1шт.
36627
SEAT
PIN - control valve lever
2шт.
36628
LOCK WASHER
- lock
2шт.
36629
WASHER - stop (Use 36650)
1шт.
CAS36630
COLLAR
- stop
1шт.
36631
HOUSING
- stop, spool
1шт.
36632
SPRING
- centering, 3 position spool
1шт.
36633
LID
SNAP RING - retaining, stop disc
1шт.
36634
DISC
PLUG - check ball
1шт.
36635
SHIELD
SEAT - relief valve
1шт.
36640
DRAG LINK
LINK - valve lever
2шт.
NSS
NOT SOLD SEPARAT
1/16" x 1-1/2" cotter pin (D132-13)
2шт.
36641
CIRCLIP
PIN - cotter, link (Use D132-13)
2шт.
36642
SEAL
- "O" ring, spool
4шт.
36644
X
WASHER - flat (Use 36628)
1шт.
36645
CAP
- rubber, spool end
2шт.
D23722
HANDLE
LEVER - valve (Use D23722)
2шт.
36650
WASHER
- float stop
2шт.
36651
NUT
ADAPTER - float detent
1шт.
36652
COLLAR
- float spring
1шт.
36653
- float detent
1шт.
36654
PLUG
HOLDER - finger, float detent
1шт.
36655
- float detent
3шт.
36656
CLIP
CAP - float detent spring
1шт.
D32602
VALVE SPRING
- centering, 4 position spool
1шт.
36658
ROD
SPRING - float detent
1шт.
36659
SPRING
- relief valve
1шт.
36660
WASHER
- relief valve spring
1шт.
36661
SHAFT
WASHER - float spool
1шт.
36662
GEAR
WASHER - lock, float spool
1шт.
36666
WASHER
- float detent cap
1шт.
NLS
NO LONGER SERVICED
VALVE - hydraulic, loader control (Complete - except less D23722 levers) Use D24387
1шт.
D23722
HANDLE
LEVER - valve
2шт.
D24392
COLLAR - jam
1шт.
