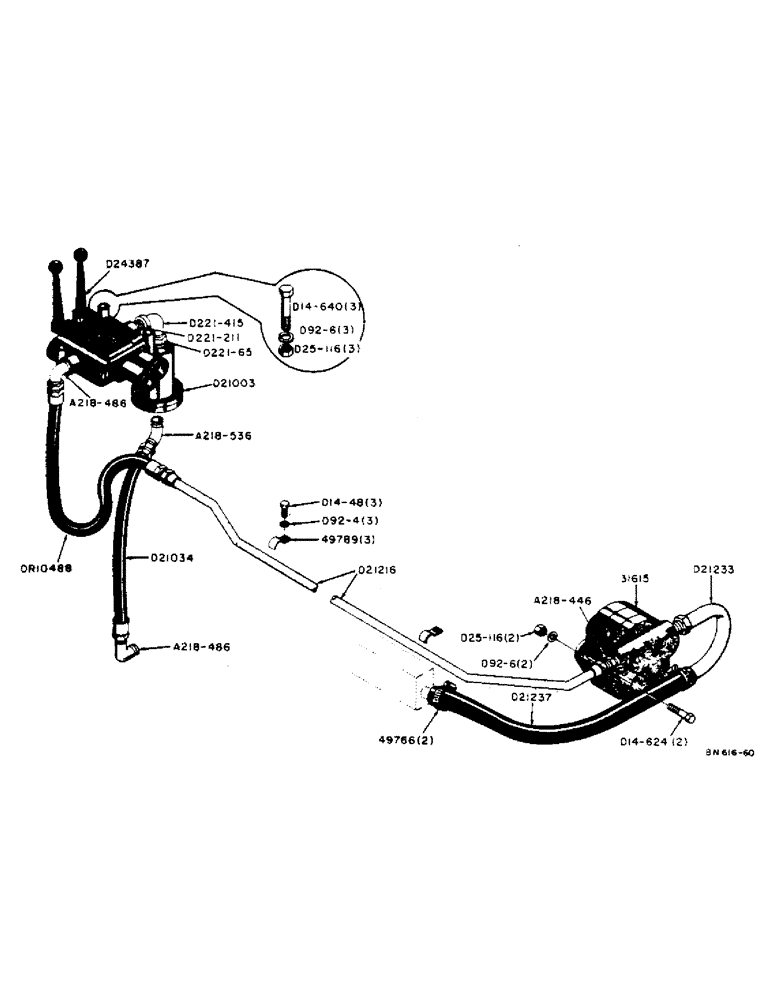

Запчасти Case UTILITY (13) - PUMP HYDRAULICS, WITH REAR MOUNTED FILTER

31615

CAP

PUMP - hydraulic (Webster #3-HCS-4L) (See Figure 18 for breakdown)

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 x 1-1/2" NF hex. hd. cap screw (D14-624)

2шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (D92-6)

2шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. nut (D25-116)

2шт.

38256

PIN

VALVE - loader control, hydraulic (See Figure 14 for breakdown) Use D24387

1шт.

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - D21237 hose

2шт.

49789

CLAMP

- D21216 tube

3шт.

NSS

NOT SOLD SEPARAT

1/4" - 28 x 1/2" NF hex. hd. cap screw (D14-48)

3шт.

NSS

NOT SOLD SEPARAT

1/4" lockwasher (D92-4)

3шт.

D21003

FILTER

- rear mounted (See Figure 25 for breakdown)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT 90 degree street elbow (D221-415)

1шт.

NSS

NOT SOLD SEPARAT

1" NPT x 3/4" NPT reducing bushing (If used) (D221-65)

2шт.

D21034

HOSE - filter to reservoir (3/4" I.D. x 1-5/32" O.D. x 22" long)

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 3/4" NPT 90 degree male elbow (A218-486)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 3/4" JIC male elbow (A218-536)

1шт.

D21216

TUBE - pump to valve, front section

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 3/4" NPT connector (A218-446)

1шт.

D21233

TUBE - suction line

1шт.

D21237

LARGE HOSE

HOSE - suction line (1" I.D. x 1-1/2" O.D. x 22" long)

1шт.

D24387

SPOOL

VALVE - loader control, hydraulic (See Figure 16 for breakdown) See 38256

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 x 2-1/2" NF hex. hd. cap screw (D14-640)

3шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (D92-6)

3шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. nut (D25-116)

3шт.

NSS

NOT SOLD SEPARAT

3/4" NPT close nipple (D221-211)

1шт.

DR10488

HOSE ASSY.

HOSE - pump to valve, rear section (3/4" I.D. x 1-5/32" O.D. x 36" long)

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 3/4" NPT 90 degree male elbow (A218-486)

1шт.
