CANADA
/
(UTILITY) - LOADER (1/71-12/81)
/

(12) - PUMP HYDRAULICS, MODEL 310 ONLY

Запчасти Case UTILITY (12) - PUMP HYDRAULICS, MODEL 310 ONLY

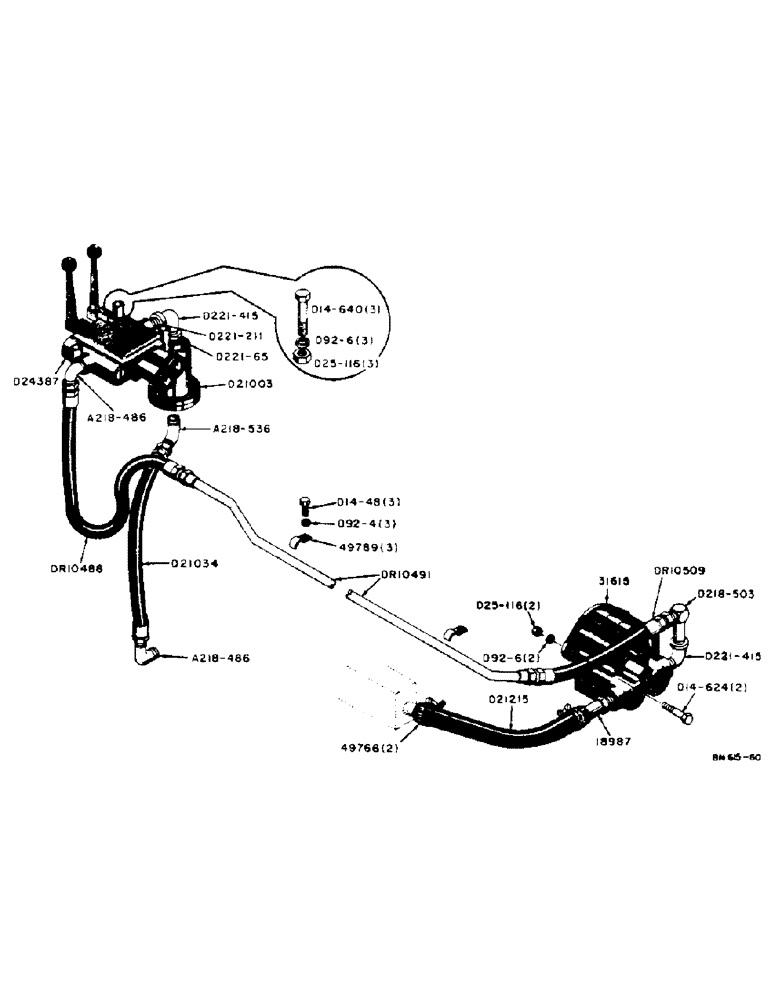

Схема запчастей Case UTILITY - (12) - PUMP HYDRAULICS, MODEL 310 ONLY

№

Артикул

Название

Примечание

Количество

18987

TUBE - inlet to pump, R.H.

1шт.

31615

CAP

PUMP - hydraulic (Webster #3-HCS-4L) (See Figure 18 for breakdown)

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 x 1-1/2" NF hex. hd. cap screw (D14-324)

2шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (D92-6)

2шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. nut (D25-116)

2шт.

NLS

NO LONGER SERVICED

VALVE - loader control, hydraulic (See Figure 14 for breakdown) Use D24387

1шт.

49766

AUGER

CLAMP - D21215 hose

2шт.

49789

CLAMP

- DR10491 tube

3шт.

NSS

NOT SOLD SEPARAT

1/4" - 28 x 1/2" NF hex. hd. cap screw (D14-48)

3шт.

NSS

NOT SOLD SEPARAT

1/4" lockwasher (D92-4)

3шт.

D21003

FILTER

- rear mounted (See Figure 24 for breakdown)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT 90 degree street elbow (D221-415)

1шт.

NSS

NOT SOLD SEPARAT

1" NPT x 3/4" NPT reducing bushing (If used) (D221-65)

1шт.

D21034

HOSE - filter to reservoir (3/4" I.D. x 1-5/32" O.D. x 22" long)

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 3/4" NPT 90 degree male elbow (A218-486)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 3/4" JIC 45 degree male elbow (A218-536)

1шт.

D21215

LARGE HOSE

HOSE - suction line (1" I.D. x 1-1/2" O.D. x 12" long)

1шт.

D24387

SPOOL

VALVE - loader control, hydraulic (See Figure 16 for breakdown) See 38256

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 x 2-1/2" NF hex. hd. cap screw (D14-640)

3шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (D92-6)

3шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. nut (D25-116)

3шт.

NSS

NOT SOLD SEPARAT

3/4" NPT close nipple (D221-211)

1шт.

DR10488

HOSE ASSY.

HOSE - pump to valve, rear section (3/4" I.D. x 1-5/32" O.D. x 36" long)

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 3/4" NPT 90 degree male elbow (A218-486)

1шт.

DR10491

TUBE - pump to valve, center section

1шт.

DR10509

HOSE - pump to valve, front section (3/4" I.D. x 1-5/32" O.D. x 12-5/8" long)

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 3/4" NPT 90 degree extra long male elbow (D218-503)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT 90 degree street elbow (D221-415)

1шт.

Выбрано товаров: 28
