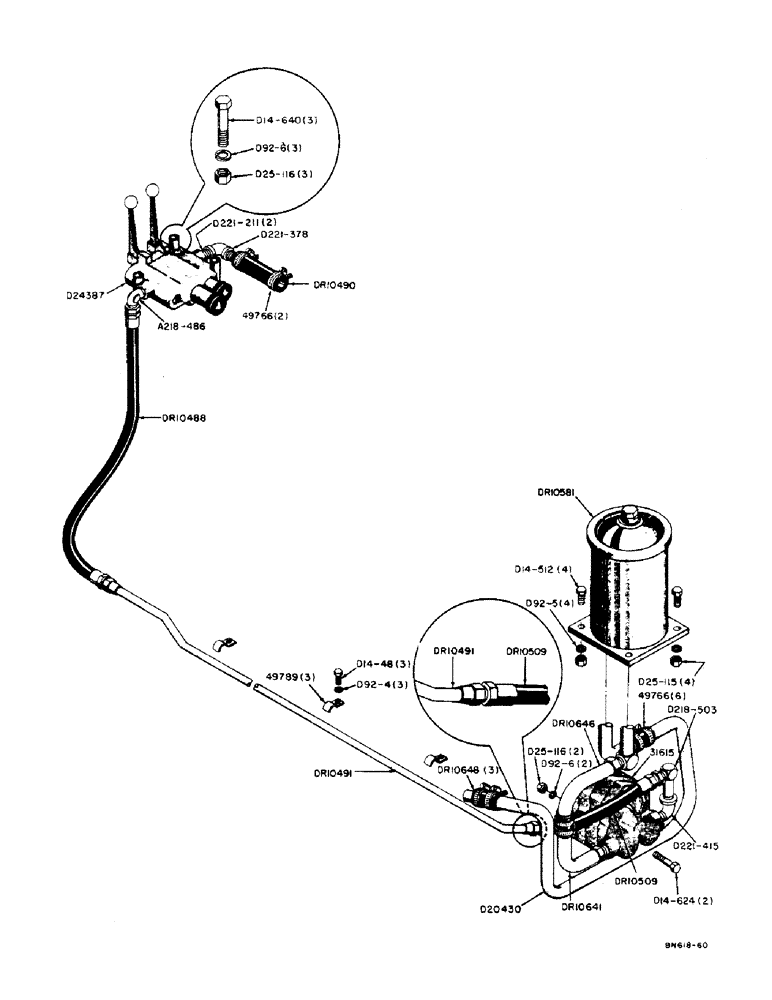

Запчасти Case UTILITY (10) - PUMP HYDRAULICS, WITH FRONT MOUNTED FILTER
№
Артикул
Название
Примечание
Количество
31615
CAP
PUMP - hydraulic (Webster #3-HCS-4L) (See Figure 18 for breakdown)
1шт.
NSS
NOT SOLD SEPARAT
3/8" - 24 x 1-1/2" NF hex. hd. cap screw (D14-624)
2шт.
NSS
NOT SOLD SEPARAT
3/8" lockwasher (D92-6)
2шт.
NSS
NOT SOLD SEPARAT
3/8" - 24 NF hex. nut (D25-116)
2шт.
38256
PIN
VALVE - loader control, hydraulic (See Figure 14 for breakdown) Use D24387
1шт.
214-1420
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - DR10648 and DR10490 hoses
8шт.
49789
CLAMP
- DR10491 tube
3шт.
NSS
NOT SOLD SEPARAT
1/4" - 28 x 1/2" NF hex. hd. capscrew (D14-48)
3шт.
NSS
NOT SOLD SEPARAT
1/4" lockwasher (D92-4)
3шт.
D20430
TUBE -, Serial Range: reservoir-filter
1шт.
D24387
SPOOL
VALVE - loader control, hydraulic (See Figure 16 for breakdown) See 38256
1шт.
NSS
NOT SOLD SEPARAT
3/8" - 24 x 2-1/2" NF hex. hd. cap screw (D14-640)
3шт.
NSS
NOT SOLD SEPARAT
3/8" lockwasher (D92-6)
3шт.
NSS
NOT SOLD SEPARAT
3/8" - 24 NF hex. nut (D25-116)
3шт.
DR10488
HOSE ASSY.
HOSE - pump to valve, rear section (3/4" I.D. x 1-5/32" O.D. x 36" long)
1шт.
NSS
NOT SOLD SEPARAT
3/4" JIC x 3/4" NPT 90 degree male elbow (A218-486)
1шт.
DR10490
HOSE - control valve to reservoir (1" I.D. x 1-1/2" O.D. x 4" long)
1шт.
NSS
NOT SOLD SEPARAT
3/4" NPT close nipple (D221-211)
2шт.
NSS
NOT SOLD SEPARAT
3/4" NPT female 90 degree elbow (D221-378)
1шт.
DR10491
TUBE - pump to valve, center section
1шт.
DR10509
HOSE - pump to valve, front section (3/4" I.D. x 1-5/32" O.D. x 12-5/8" long)
1шт.
NSS
NOT SOLD SEPARAT
3/4" JIC x 3/4" NPT 90 degree extra long male elbow (D218-503)
1шт.
NSS
NOT SOLD SEPARAT
3/4" NPT 90 degree street elbow (D221-415)
1шт.
DR10581
FILTER - front mounted (See Figure 24 for breakdown)
1шт.
NSS
NOT SOLD SEPARAT
5/16" - 24 x 3/4" NF hex. hd. cap screw (D14-512)
4шт.
NSS
NOT SOLD SEPARAT
5/16" lockwasher (D92-5)
4шт.
NSS
NOT SOLD SEPARAT
5/16" - 24 MF hex. nut (D25-115)
4шт.
DR10641
TUBE - inlet to pump, R.H.
1шт.
DR10646
TUBE - filter to pump, top
1шт.
DR10648
HOSE - suction line (1" I.D. x 1-1/2" O.D. x 2-1/8" long)
3шт.
Выбрано товаров: 30
