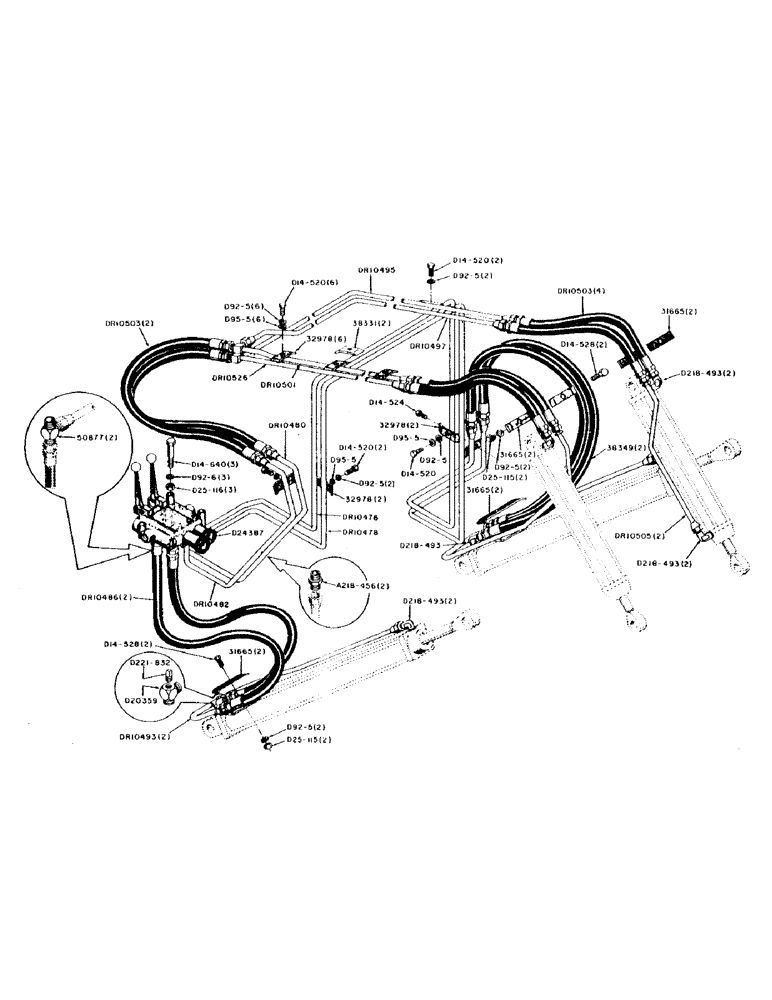

Запчасти Case UTILITY (08) - LOADER LIFT AND BUCKET CYLINDER HYDRAULICS

31665

COLLAR CLAMP

CLAMP - DR10503 and DR10486 hoses

8шт.

NSS

NOT SOLD SEPARAT

5/16" - 24 x 1-34" NF hex. hd. cap screw (D14-528)

4шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (D92-5)

4шт.

NSS

NOT SOLD SEPARAT

5/16" 24 NF hex. nut (D25-115)

4шт.

32978

PLATE ASSY.

CLAMP - DR10480 and DR10482 tubes (1); DR10501, DR10526, DR10497, and DR10495 tubes (6); DR10476 and DR10478 tubes (3)

10шт.

NSS

NOT SOLD SEPARAT

5/16" - 24 x 1-1/4" NF hex. hd. cap screw (D14-520)

9шт.

NSS

NOT SOLD SEPARAT

5/16" - 24 x 1-1/2" NF hex. hd. cap screw (D14-524)

1шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (D92-5)

9шт.

NSS

NOT SOLD SEPARAT

5/16" plain washer (D95-5)

8шт.

NLS

NO LONGER SERVICED

VALVE - loader control, hydraulic (See Figure 14 for breakdown) Use D24387

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 x 2-1/2" NF hex. hd. cap screw (D14-640)

3шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (D92-6)

3шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. nut (D25-116)

3шт.

38331

PLATE

CLAMP - DR10476 and DR10478 tubes

2шт.

NSS

NOT SOLD SEPARAT

5/16" - 24 x 1-1/4" NF hex. cap screw (D14-520)

2шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (D92-5)

2шт.

38349

HOSE - to L.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 25-1/2" long)

2шт.

NSS

NOT SOLD SEPARAT

1/2" JIC x 1/2" NPT 90 degree male elbow (D218-493)

1шт.

50877

TEE - male, in control valve for DR10476 and DR10478 tubes

2шт.

D20359

TEE - special, in rear port R.H. lift cylinder

1шт.

NSS

NOT SOLD SEPARAT

1/4" NPT extended square head plug (D221-832)

1шт.

D24387

SPOOL

VALVE - loader control, hydraulic (See Figure 16 for breakdown) See 38256

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 x 2-1/2" NF hex. cap screw (D14-640)

3шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (D92-6)

3шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. nut (D25-116)

3шт.

DR10476

TUBE - rear port control valve to L.H. lift cylinder

1шт.

DR10478

TUBE - front port control valve to L.H. lift cylinder

1шт.

DR10480

TUBE - rear port control valve to bucket cylinders

1шт.

NSS

NOT SOLD SEPARAT

1/2" JIC x 1/2" NPT male connector (A218-456)

1шт.

DR10482

TUBE - front port control valve to bucket cylinders

1шт.

NSS

NOT SOLD SEPARAT

1/2" JIC x 1/2" NPT male connector (A218-456)

1шт.

DR10486

HOSE ASSY.

HOSE - control valve to R.H. lift cylinder (1/2" I.D. x 7/8" O.D. x 30" long)

2шт.

DR10493

TUBE - to front port lift cylinder

2шт.

NSS

NOT SOLD SEPARAT

1/2" JIC x 1/2" NPT 90 degree male elbow (D218-493)

2шт.

DR10495

TUBE - to L.H. bucket cylinder, top manifold

1шт.

DR10497

TUBE - to L.H. bucket cylinder, bottom manifold

1шт.

DR10501

TUBE - to R.H. bucket cylinder (L.H.)

1шт.

DR10503

HOSE - control valve to bucket cylinders (1/2" I.D. x 7/8" O.D. x 20" long)

6шт.

NSS

NOT SOLD SEPARAT

1/2" JIC x 1/2" NPT 90 degree male elbow (D218-493)

2шт.

DR10505

TUBE - to bucket cylinder front ports

2шт.

NSS

NOT SOLD SEPARAT

1/2" JIC x 1/2" NPT 90 degree male elbow (D218-493)

2шт.

DR10526

TUBE - to R.H. bucket cylinder (R.H.)

1шт.
