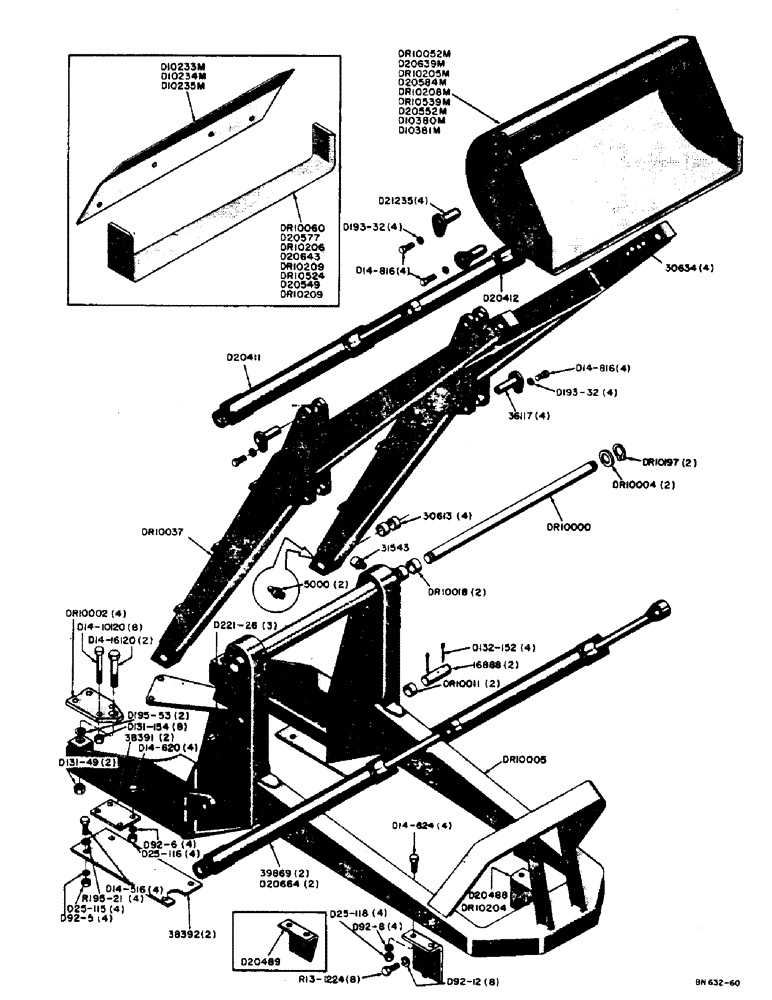

Запчасти Case UTILITY (04) - FRAME, LIFT ARM, BUCKETS, AND CYLINDERS

T14011

ELEMENT

- 31543 breather

1-2шт.

16888

PIN - pivot, lift cylinder (Lower)

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" cotter pin (D132-152)

4шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- lift arm, cross shaft pivot

4шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- lift arm, bucket pivot

4шт.

31543

BREATHER

- hydraulic oil resevoir (Includes 1 - T14011 element)

1-2шт.

36117

PIN - pivot, lift cylinder (Front); also bucket cylinder (Rear)

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 x 1" NF hex. hd. cap screw (D14-816)

4шт.

NSS

NOT SOLD SEPARAT

1/2" internal tooth Shakeproof lockwasher (D193-32)

4шт.

38391

SPRING

PLATE - fender spacer

2шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 x 1-1/4" NF hex. hd. cap screw (D14-620)

4шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (D92-6)

4шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. nut (D25-116)

4шт.

38392

SPACER - floor plate

2шт.

NSS

NOT SOLD SEPARAT

5/16" - 24 x 1" NF hex. hd. cap screw (D14-516)

4шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (D92-5)

4шт.

NSS

NOT SOLD SEPARAT

5/16" - 24 NF hex. nut (D25-115)

4шт.

NSS

NOT SOLD SEPARAT

5/16" plain washer (R195-21)

4шт.

39869

CYLINDER - hydraulic, loader lift (1-1/4" dia. piston rod) (Use D20664) (See Figure 26 for breakdown)

2шт.

D20411

CYLINDER - hydraulic, bucket (R.H.) (See Figure 32 for breakdown)

1шт.

D20412

CYLINDER - hydraulic, bucket (L.H.) (See Figure 32 for breakdown)

1шт.

D20488

BRACKET - frame mounting (L.H.) (Model 310 wheel tractor only) See DR10204

1шт.

D20489

BRACKET - frame mounting (R.H.) (Model 310 wheel tractor only) See DR10204

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 10 x 1-1/2" NC hex. hd. cap screw (R13-1224)

8шт.

NSS

NOT SOLD SEPARAT

3/4" lockwasher (D92-12)

8шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 x 1-1/2" NF hex. hd. cap screw (D14-824)

4шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (D92-8)

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 NF hex. nut (D25-118)

4шт.

D20664

CYLINDER - hydraulic, loader lift (1-1/2" dia. piston rod) (See 39869) (See Figure 30 for breakdown)

2шт.

D21235

PIN - pivot, bucket to lift arms and cylinders

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 x 1" NF hex. hd. cap screw (D14-816)

4шт.

NSS

NOT SOLD SEPARAT

1/2" internal tooth Shakeproof lockwasher (D193-32)

4шт.

D23740

BUSHING

- lockhead pin bolt (If used)

8шт.

DR10000

SHAFT - cross, lift arm pivot

1шт.

DR10002

BRACKET - mounting, frame to rear axle

4шт.

NSS

NOT SOLD SEPARAT

5/8" - 18 x 7-1/2" NF hex. hd. cap screw (D14-10120)

8шт.

NSS

NOT SOLD SEPARAT

5/8" - 18 NF lock nut (D131-154)

8шт.

NSS

NOT SOLD SEPARAT

1" - 14 x 7-1/2" NF hex. hd. capscrew (D14-16120)

2шт.

NSS

NOT SOLD SEPARAT

1" - 14 x 7-1/2" NF lock nut (D131-49)

2шт.

NSS

NOT SOLD SEPARAT

1" plain washer (D195-53)

2шт.

DR10004

WASHER

- cross shaft

2шт.

DR10005

FRAME - loader (Includes 2 - DR10011 and 2 - DR10018 bushings)

1шт.

NSS

NOT SOLD SEPARAT

1" NPT ctsk. hd. pipe plug for hydraulic oil resevoir (D221-26)

3шт.

DR10011

BUSHING

- frame, lift cylinder pivot

2шт.

DR10018

BUSHING - frame, cross shaft pivot

2шт.

DR10037

ARM - lift (Includes 4 - 30613 and 4 - 30634 bushings)

1шт.

B219-1

1/8" NPT grease fitting, 90 degrees (Lincoln #5000)

2шт.

DR10197

X

SNAP RING - cross shaft

2шт.

DR10204

BRACKET - frame mounting (Models 210B and 310B wheel tractors only)

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 10 x 1-1/2" NC hex. cap screw (R13-1224)

8шт.

NSS

NOT SOLD SEPARAT

3/4" lockwasher (D92-12)

8шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 x 1-1/2" NF hex. hd. cap screw (D14-824)

4шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (D92-8)

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 NF hex. nut (D25-118)

4шт.

DR10052M

BUCKET - loader, 43-3/8" wide (9 cu. ft.) Use D20639M, bucket-machinery items (listed by width)

1шт.

DR10060

BLADE - cutting, DR10052M bucket, bucket-machinery items (listed by width)

1шт.

D20639M

BUCKET - loader, 47-3/8" wide (11 cu. ft.) (Std. 210B), bucket-machinery items (listed by width)

1шт.

D20577

BLADE - cutting, D20639M bucket, bucket-machinery items (listed by width)

1шт.

DR10205M

BUCKET - loader, 53-3/8" wide (13 cu. ft.) Use D20584M, bucket-machinery items (listed by width)

1шт.

DR10206

BLADE - cutting, DR10205M bucket, bucket-machienry items (listed by width)

1шт.

D20584M

BUCKET - loader, 56-1/8" wide (13 cu. ft.) (Std. 310 and 310B), bucket-machinery items (listed by width)

1шт.

D20643

BLADE - cutting, D20584M bucket, bucket-machinery item (listed by width)

1шт.

DR10208M

BUCKET - loader, 63-3/8" wide (15 cu. ft.), bucket-machinery items (listed by width)

1шт.

DR10209

EDGE

BLADE - cutting, DR10208M bucket, bucket -machinery items (listed by width)

1шт.

DR10539M

BUCKET - loader, 73-3/8" wide (21 cu. ft.) Use D20552M, bucket-machinery items (listed by width)

1шт.

DR10524

X

BLADE - cutting, DR10539M bucket, bucket-machinery item (listed by width)

1шт.

D20552M

BUCKET - loader, 79-3/8" wide (Snow - 3/4 cu. yd.), bucket-machinery item (listed by width)

1шт.

D20549

EDGE

BLADE - cutting, D20552M bucket, bucket-machinery item (listed by width)

1шт.

D10380M

BUCKET - loader, 79-3/8" wide (Snow - 1 cu. yd.), bucket-machinery item (listed by width)

1шт.

D20549

EDGE

BLADE - cutting, D10380M bucket, bucket-machinery item (listed by width)

1шт.

D10381M

BUCKET - loader, 63-3/8" wide (Light materials - 2/3 cu. yd.), bucket -machinery item (listed by width)

1шт.

DR10209

EDGE

BLADE - cutting, D10381M bucket, bucket-machinery item (listed by width)

1шт.

D10233M

GUARD - spill, DR10052M and D20639M buckets, spill guards for buckets (machinery items)

1шт.

D10234M

GUARD - spill, DR10205M and D20584M buckets, spill guards for buckets (machinery items)

1шт.

D10235M

GUARD - spill, DR10208M bucket, spill guards for buckets (machinery items)

1шт.
