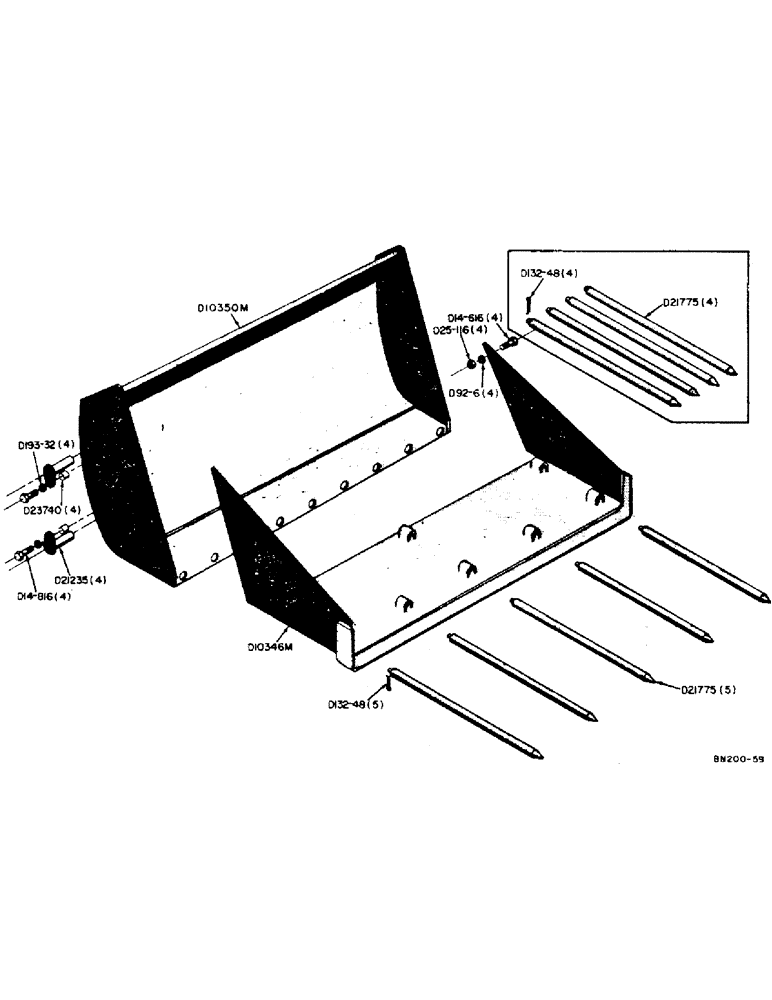

Запчасти Case UTILITY (42) - MANURE FORK, TINES, AND DIRT PLATE, ATTACHMENTS

D10346M

PLATE - dirt (Machinery item)

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 x 1" NF hex. hd. cap screw (D14-616)

4шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (D92-6)

4шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. nut (D25-116)

4шт.

D10350

BUCKET - manure (Machinery item) (Includes 5 - D21775 tines)

1шт.

D21235

PIN - pivot, bucket to loader arms and bucket cylinders

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 x 1" NF hex. hd. cap screw (D14-816)

4шт.

NSS

NOT SOLD SEPARAT

1/2" internal tooth Shakeproof lockwasher (D193-32)

4шт.

D21775

TINE - manure

5-9шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin (D132-48)

5-9шт.

D23740

BUSHING

- lockhead pin bolt

4шт.
