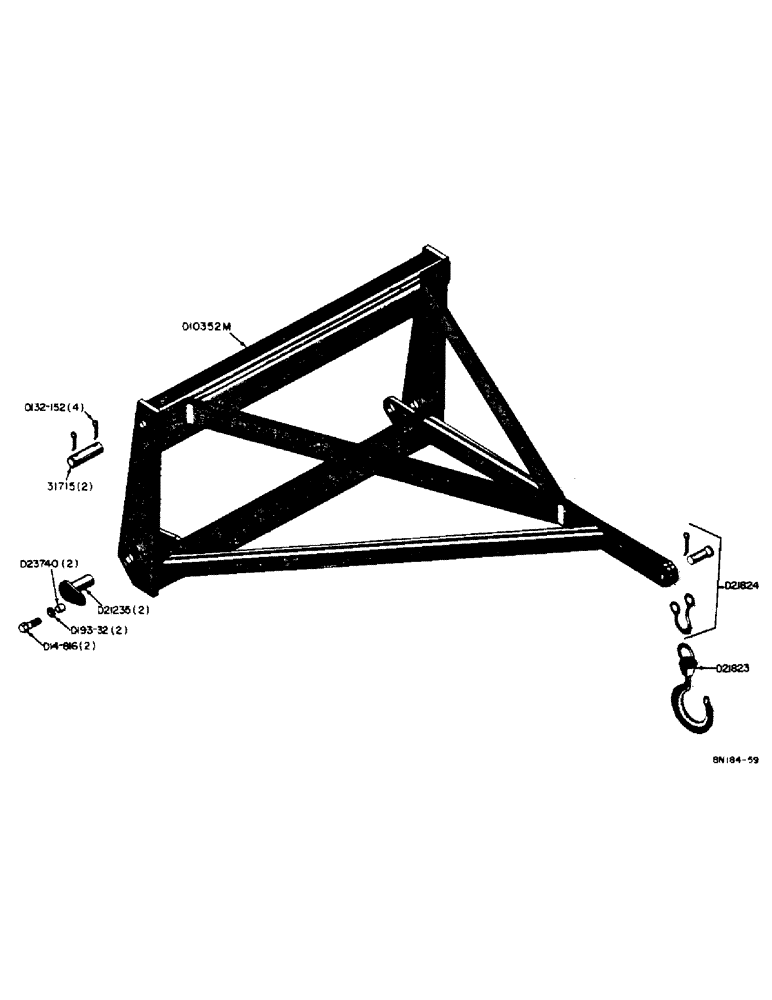

Запчасти Case UTILITY (41) - CRANE BOOM ATTACHMENT

31715

PIN

- pivot, boom to bucket cylinder

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" cotter pin (D132-152)

4шт.

D10352M

BOOM - crane (Machinery item) (Includes 1 - D21823 hook and 1 - D21824 shackle)

1шт.

D21235

PIN - pivot, boom to loader arms

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 x 1" NFhex. hd. cap screw (D14-816)

2шт.

NSS

NOT SOLD SEPARAT

1/2" internal tooth Shakeproof lockwasher (D193-32)

2шт.

D21823

HOOK - swivel

1шт.

D21824

SHACKLE - swivel bolt

1шт.

D23740

BUSHING

- lockhead pin bolt

2шт.
