Запчасти Case UTILITY (39) - BULL DOZER BLADE ATTACHMENT

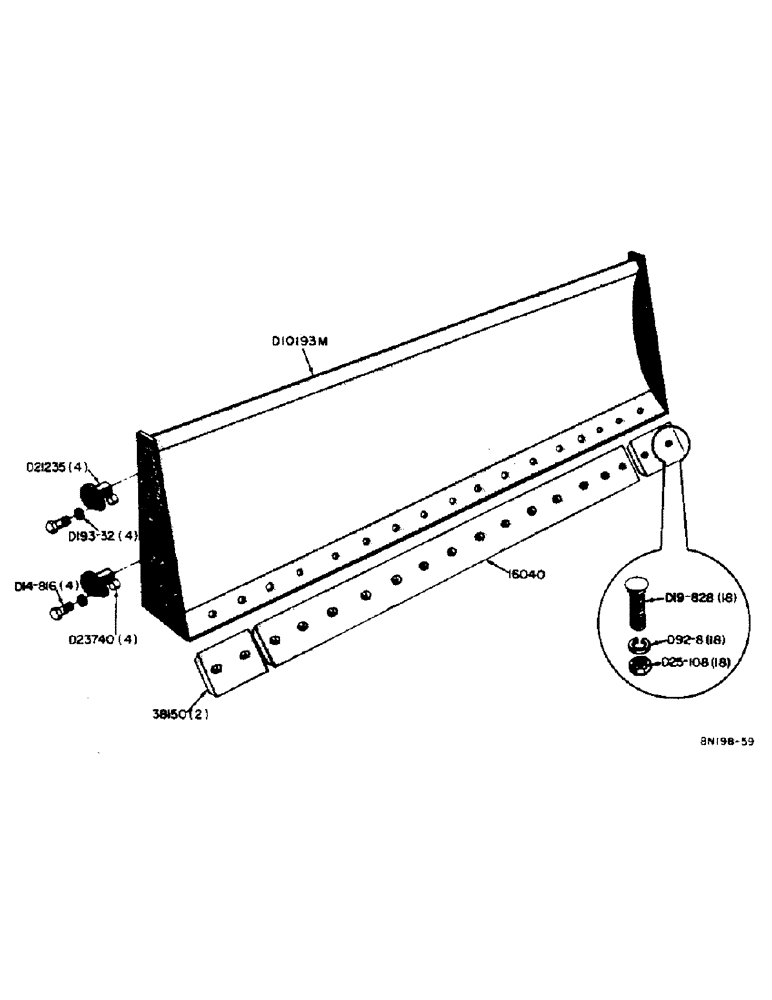

Схема запчастей Case UTILITY - (39) - BULL DOZER BLADE ATTACHMENT

Артикул

Название

Примечание

Количество

NLS

NO LONGER SERVICED

BLADE - center

1шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 x 1-3/4" NC plow bolt (D19-828)

14шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (D92-8)

14шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC hex. nut (D25-108)

14шт.

38150

EDGE

BLADE - end

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 x 1-3/4" NC plow bolt (D19-828)

4шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (D92-8)

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC hex. nut (D25-108)

4шт.

D10193M

BLADE - bull dozer (Machinery item) (Includes blades, but not pins)

1шт.

D20458

MOLDBOARD - dozer (Use D10193M)

1шт.

D21235

PIN - pivot, blade to loader arms and bucket cylinders

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 x 1" NF hex. hd. cap screw (D14-816)

4шт.

NSS

NOT SOLD SEPARAT

1/2" internal tooth Shakeproof lockwasher (D193-32)

4шт.

D23740

BUSHING

- lockhead pin bolt

4шт.

Выбрано товаров: 14
