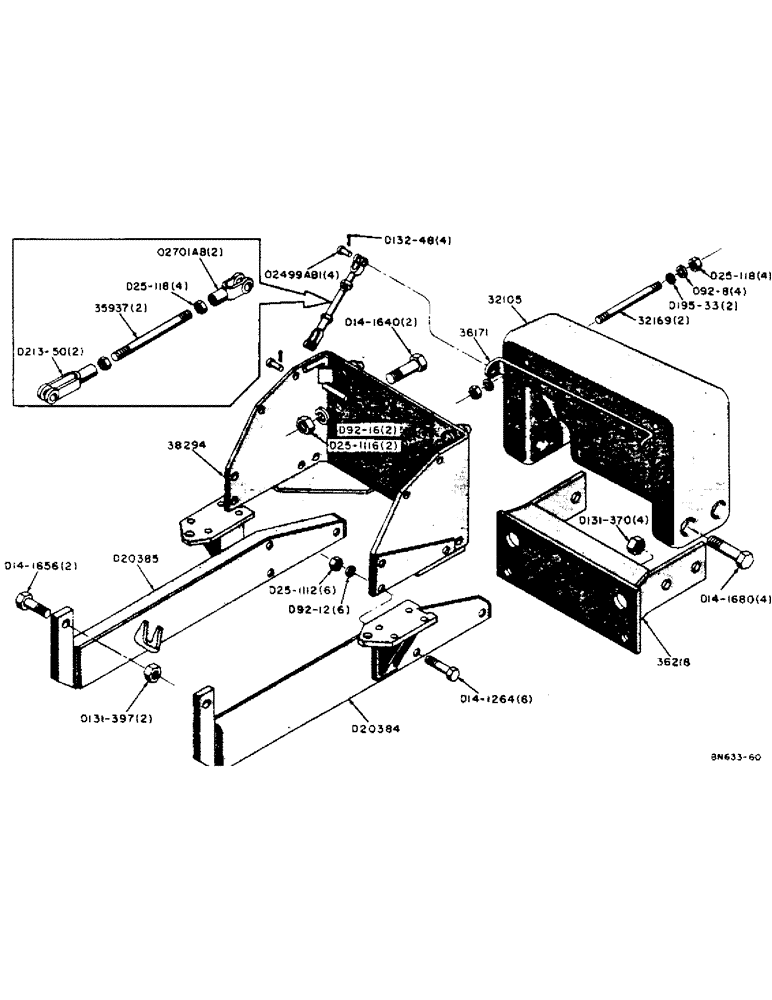

Запчасти Case UTILITY (38) - 900 POUND REAR COUNTERWEIGHT

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke (Replaces O2499AB1)

4шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin (D132-48)

4шт.

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - stabilizer rod, upper (Replaces O2701AB)

2шт.

D213-50

YOKE - stabilizer rod, lower

2шт.

32105

WEIGHT - counter (900 lb.)

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 x 5" NF hex. hd. cap screw (D14-1680)

4шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF hex. lock nut (D131-370)

4шт.

32169

GEAR

BOLT - support, rod

2шт.

NSS

NOT SOLD SEPARAT

1/2" SAE wrought washer (D195-33)

2шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (D92-8)

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 NF hex. nut (D25-118)

4шт.

35937

HUB

ROD - stabilizer

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 NF hex. nut (D25-118)

4шт.

36171

BRACKET - yoke mounting

1шт.

36218

BRACKET - mounting

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 x 2-1/2" NF hex. hd. cap screw

2шт.

NSS

NOT SOLD SEPARAT

1" lockwasher (D92-16)

2шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF hex. nut (D25-1116)

2шт.

38294

PLATE - mounting

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 x 4" NF hex. hd. cap screw (D14-1264)

6шт.

NSS

NOT SOLD SEPARAT

3/4" lockwasher (D92-12)

6шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 NF hex. nut (D25-1112)

6шт.

D20384

ARM - support, L.H.

1шт.

D20385

ARM - support, R.H.

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 x 3-1/2" NF hex. hd. cap screw (D14-1656)

2шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF hex. lock nut (D131-397)

2шт.
