Запчасти Case UTILITY (36) - 900 POUND REAR COUNTERWEIGHT

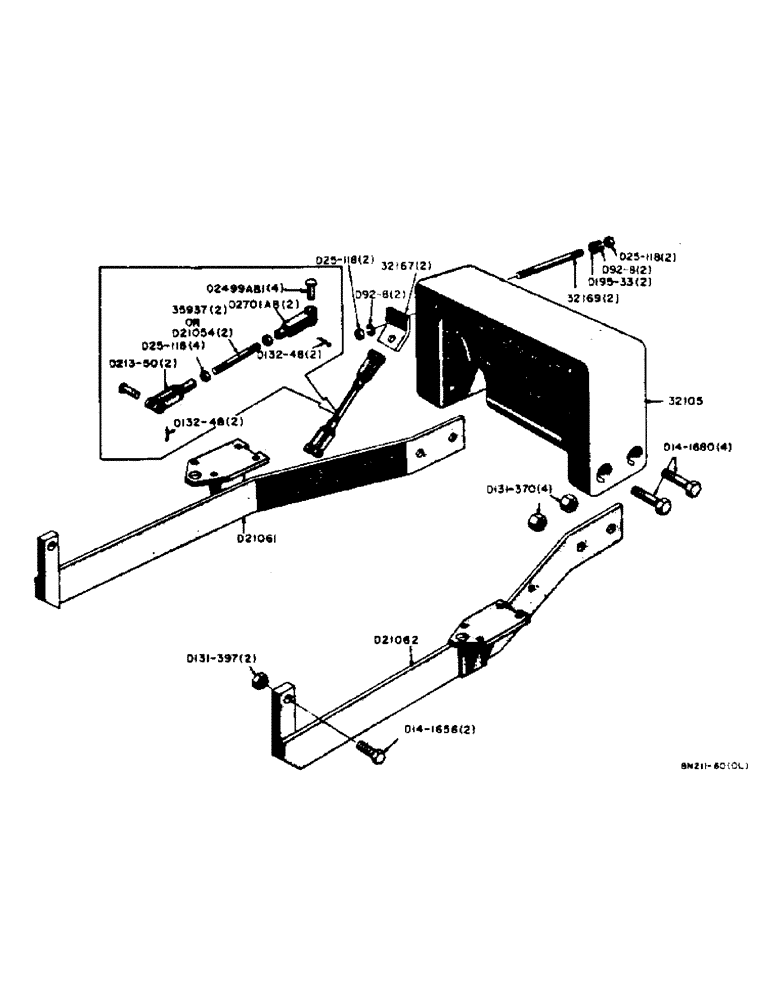

Схема запчастей Case UTILITY - (36) - 900 POUND REAR COUNTERWEIGHT

Артикул

Название

Примечание

Количество

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke (Replaces O2499AB1)

4шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin (D132-48)

4шт.

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - stabilizer rod, upper (1/2" - 20 x 3"NF) (Replaces O2701AB)

2шт.

32105

COUNTERWEIGHT - 900 lb.

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 x 5" NF hex. hd. cap screw (D14-1680)

4шт.

NSS

NOT SOLD SEPARAT

1" - 14 hex. lock nut (D131-370)

4шт.

32167

SUPPORT - stabilizer rod

2шт.

32169

GEAR

BOLT - rod support

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 hex. nut (D25-118)

4шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (D92-8)

4шт.

NSS

NOT SOLD SEPARAT

1/2" plain washer (D195-33)

2шт.

35937

HUB

ROD - stabilizer (9-5/8" long) See D21054

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 NF hex. nut (D25-118)

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 NF yoke (Lower) (D213-50)

2шт.

D21054

ROD - stabilizer (11-3/8" long) See 35937

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 NF hex. nut (D25-118)

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 x 4-3/16" NF yoke (Lower) (D213-50)

2шт.

D21061

ARM - support, R.H.

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 x 3-1/2" NF hex. hd. cap screw (D14-1656)

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF hex. lock nut (D131-397)

1шт.

D21062

ARM - support, L.H.

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 x 3-1/2" NF hex. hd. cap screw (D12-1656)

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF hex. lock nut (D131-397)

1шт.

Выбрано товаров: 23
