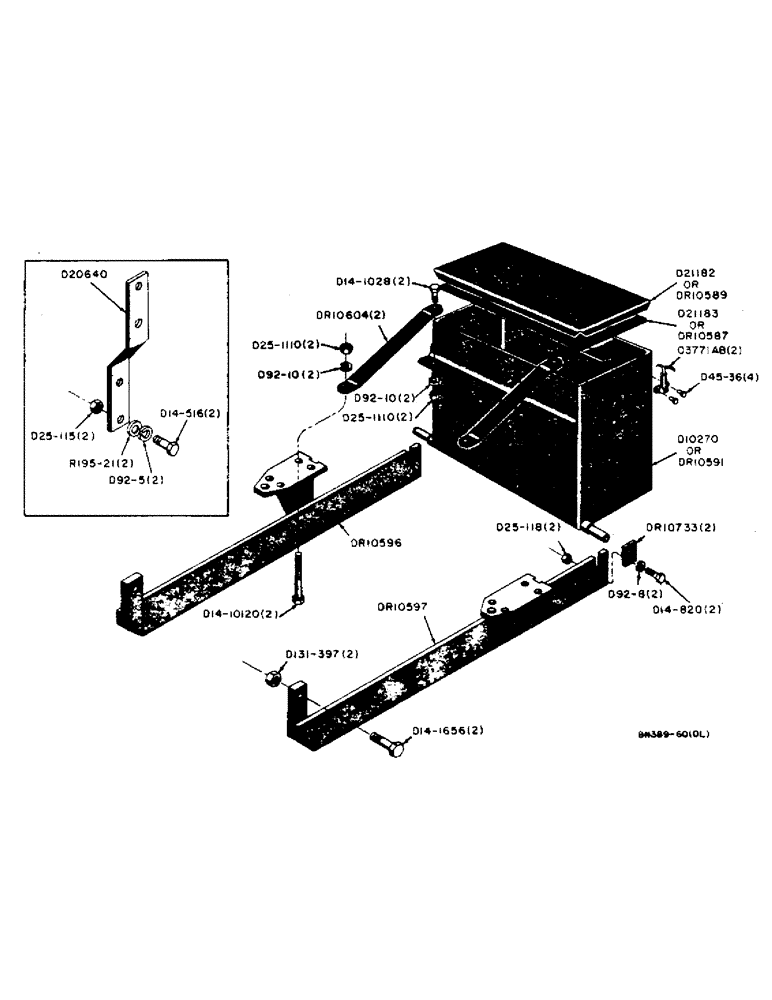

Запчасти Case UTILITY (35) - 700 POUND AND 900 POUND REAR WEIGHT BOXES, WITHOUT EAGLE HITCH

O3771AB

X

CATCH - lid

2шт.

NSS

NOT SOLD SEPARAT

3/16" x 5/16" button head rivet (D45-35)

4шт.

D10270

BOX - weight, 900 lb. (Includes catches, shelf, and lid) See DR10591

1шт.

D20640

BRACKET - extension, tail light

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 24 x 1" NF hex. hd. cap screw (D14-516)

2шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (D92-5)

2шт.

NSS

NOT SOLD SEPARAT

5/16" - 24 NF hex. nut (D25-115)

2шт.

NSS

NOT SOLD SEPARAT

5/16" plain washer (R195-21)

2шт.

D21182

LID - D10270 box (See DR10589)

1шт.

D21183

SHELF - tool, D10270 box (See DR10587)

1шт.

DR10587

SHELF - tool, DR10591 box (See D21183)

1шт.

DR10589

LID - DR10591 box (See D21182)

1шт.

DR10591

BOX - weight, 700 lb. (Includes catches, shelf, and lid) See D10270

1шт.

DR10596

ARM - support, R.H.

1шт.

DR10597

ARM - support, L.H.

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 x 3-1/2" NF hex. hd. cap screw (D14-1656)

2шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF hex. lock nut (D131-397)

2шт.

DR10604

STRAP - support, weight box (Upper)

2шт.

NSS

NOT SOLD SEPARAT

5-8" - 18 x 7-1/2" NF hex. hd. cap screw (D14-10120)

2шт.

NSS

NOT SOLD SEPARAT

5/8" - 18 x 1-3/4" NF hex. hd. cap screw (D14-1028)

2шт.

NSS

NOT SOLD SEPARAT

5/8" lockwasher (D92-10)

4шт.

NSS

NOT SOLD SEPARAT

5/8" - 18 NF hex. nut (D25-1110)

4шт.

DR10733

STRAP - mounting, weight box (Lower)

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 x 1-1/4" NF hex. hd. cap screw (D14-820)

2шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (D92-8)

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 NF hex. nut (D25-118)

2шт.
