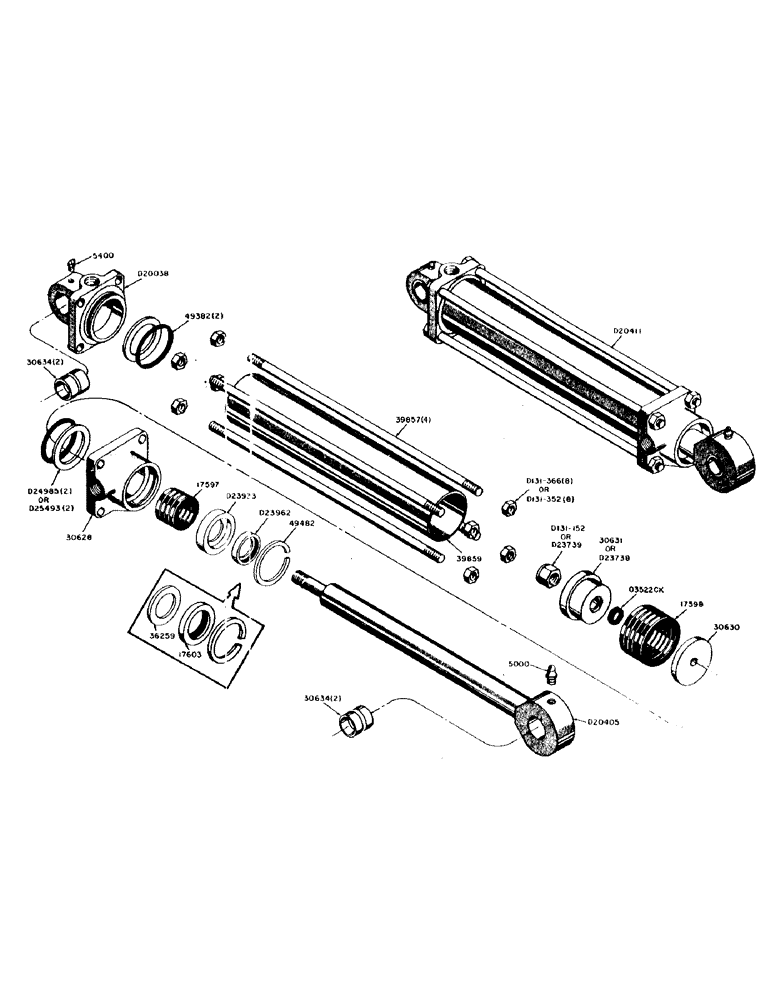

Запчасти Case UTILITY (32) - D20411 AND D20412 HYDRAULIC BUCKET CYLINDERS

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL - "O" ring, piston rod (Used with D23738 piston only) (Replaces O3522CK)

1шт.

17597

PACKING

- piston rod

1шт.

17598

PACKING

- piston

1шт.

17603

WIPER SEAL

- wiper, piston rod (Use D23933 and D23962)

1шт.

30628

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

30630

CARTRIDGE

WASHER - packing, piston

1шт.

30631

X

PISTON - cylinder (Without "O" ring) Use D23738, D23739, and O3522CK

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 NF hex. lock nut (D131-152)

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke and cylinder end

4шт.

36259

WASHER

- piston rod packing (Use D23933 and D23962)

1шт.

39857

GASKET

ROD - tie

4шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. lock nut (D131-366)

8шт.

NSS

NOT SOLD SEPARAT

3/8" - 16 NC hex. lock nut (D131-352)

8шт.

NLS

NO LONGER SERVICED

TUBE - cylinder (39859)

1шт.

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

D20038

END - cylinder (Includes 2 - 30634 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

B219-55

1/8" NPT grease fitting, 90 degree (Lincoln #5400)

1шт.

D20405

ROD - piston (Includes 2 - 30634 bushings)

1шт.

B219-1

1/8" NPT straight grease fitting (Lincoln #5000)

1шт.

D20411

CYLINDER - loader bucket, hydraulic (R.H.) (Complete)

1шт.

D20412

CYLINDER - loader bucket, hydraulic (L.H.) (Complete)

1шт.

D23738

BLOCK

PISTON - cylinder ("O" ring type) (When replacing 30631 piston without "O" ring, also order 1 - O3522CK "O" ring and 1 - D23739 lock nut)

1шт.

D23739

LOCK NUT

NUT - lock, D23738 piston only (3/4" - 16 NF)

1шт.

D23933

GLAND

- wiper seal (See 36259)

1шт.

D23962

SEAL

- wiper, piston rod (See 17603)

1шт.

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove) See D25493

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove) See D24985

2шт.
