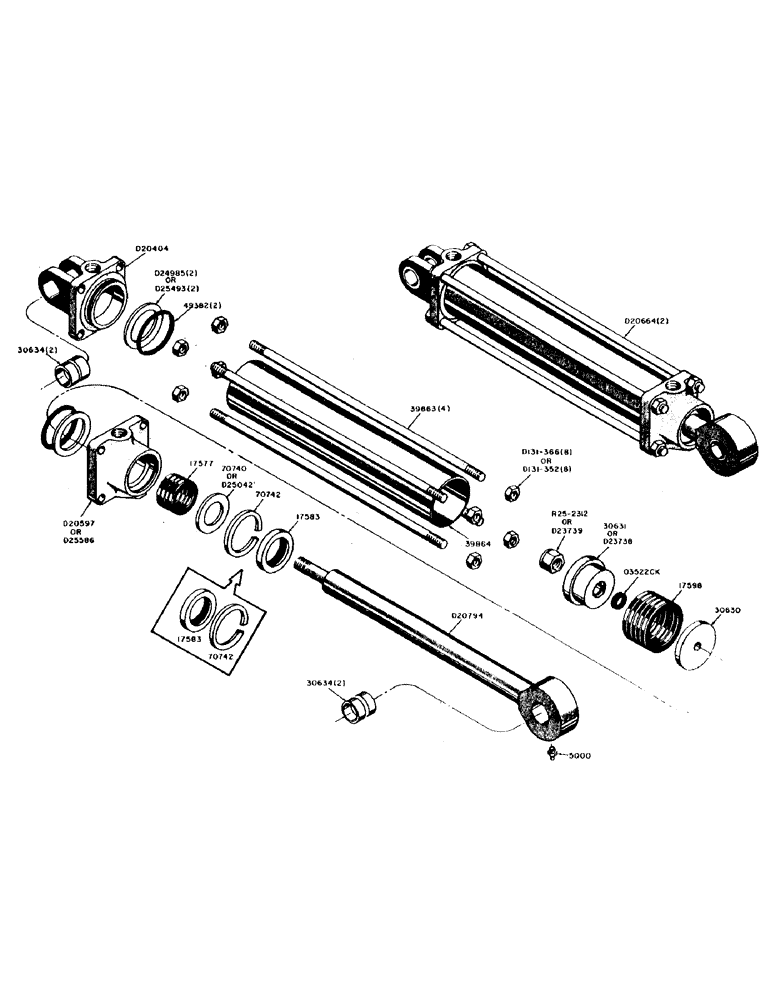

Запчасти Case UTILITY (30) - D20664 HYDRAULIC LIFT CYLINDER, 1-1/2 INCH ROD

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL - "O" ring, piston rod (Used with D23738 piston only)(Replaces O3522CK)

1шт.

17577

PACKING

- piston rod

1шт.

17583

WIPER SEAL

- wiper, piston rod

1шт.

17598

PACKING

- piston

1шт.

30630

CARTRIDGE

WASHER - packing, piston

1шт.

30631

X

PISTON - cylinder (Without "O" ring) Use D23738, D23739, and O3522CK

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 NF hex. castle nut (R25-2312)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-3/8" cotter pin (D132-51)

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke and cylinder end

4шт.

39863

TAPERED BEARING

ROD - tie

4шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. lock nut (D131-366)

8шт.

NSS

NOT SOLD SEPARAT

3/8" - 16 NC hex. lock nut (D131-352)

8шт.

39864

SPACER

TUBE - cylinder

1шт.

86982912

O-RING

SEAL - "O" ring, cylinder, Serial Range: ends-tube

2шт.

70740

WASHER

- piston rod packing (Used with D20597 cylinder end cap only) See D25042

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

D20404

END - cylinder (Includes 2 - 30634 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

D20597

X

CAP - end, cylinder (Has no. D20597 on casting) (Use D25586 and D25042)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

D20664

CYLINDER - loader lift, hydraulic (Complete)

2шт.

D20794

ROD ASSY.

ROD - piston (Includes 2 - 30634 bushings)

1шт.

B219-1

1/8" NPT straight grease fitting (Lincoln #5000)

1шт.

D23738

BLOCK

PISTON - cylinder ("O" ring type) (When replacing 30631 piston without "O" ring, also order 1 - O3522CK "O" ring and 1 - D23739 lock nut)

1шт.

D23739

LOCK NUT

NUT - lock, D23738 piston only (3/4" - 16 NF)

1шт.

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove) See D25493

2шт.

D25042

WASHER

- packing, piston rod (Used with D25586 cylinder end cap only) See 70740

1шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove)

2шт.

D25586

CAP

- cylinder end (Has no. D25586 on casting) See D20597

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

D30136

PACKAGE, REPAIR

KIT for cylinder

1шт.
