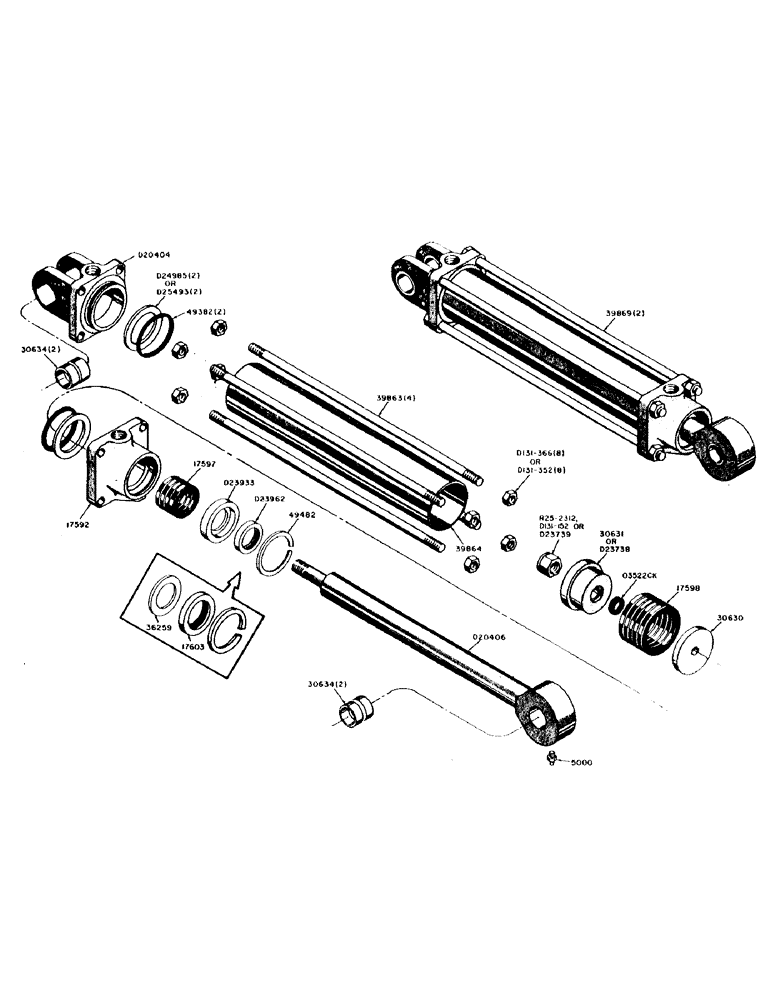

Запчасти Case UTILITY (26) - 39869 HYDRAULIC LIFT CYLINDER, 1-1/4 INCH ROD

O3522CK

X

SEAL - "O" ring, piston (Used with D23738 piston only)

1шт.

17592

CAP - end, cylinder

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

17597

PACKING

- rod

1шт.

17598

PACKING

- piston

1шт.

17603

WIPER SEAL

- wiper, piston rod (Use D23933 and D23962)

1шт.

30630

CARTRIDGE

WASHER - piston packing

1шт.

30631

X

PISTON - cylinder (Without "O" ring) Use D23738, D23739, and O3522CK

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 NF castle hex. nut (30631 piston only) (R25-2312)

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-3/8" cotter pin (30631 piston only) (D132-51)

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 NF hex. lock nut (30631 piston only) (D131-152)

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end and piston rod yoke

4шт.

36259

WASHER

- packing, piston rod (Use D23933 and D23962)

1шт.

39863

TAPERED BEARING

ROD - tie

4шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF hex. lock nut (D131-366)

8шт.

NSS

NOT SOLD SEPARAT

3/8" - 16 NC hex. lock nut (D131-352)

8шт.

39864

SPACER

TUBE - cylinder

1шт.

39869

CYLINDER - loader lift, hydraulic (Complete) Use D20664 - see Figure 30

2шт.

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O" ring, cylinder tube ends

2шт.

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

D10256

KIT

- to convert 1 - 39869 cylinder (1-1/4" piston rod) to 1 - D20664 cylinder (1-1/2" piston rod) (See below for breakdown)

1шт.

D20404

END - cylinder, closed (Includes 2 - 30634 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

D20406

ROD - piston (1-1/4" dia.) (Includes 2 - 30634 bushings) Use D10256 kit

1шт.

B219-1

1/8" NPT straight grease fitting (Lincoln #5000)

1шт.

D23738

BLOCK

PISTON - cylinder ("O" ring type) (Order 1 - O3522CK "O" ring and 1 - D23739 nut when replacing 30631 piston that does not utilize "O" ring)

1шт.

D23739

LOCK NUT

NUT - lock, piston (D23738 piston only) (3/4" - 16 NF)

1шт.

D23933

GLAND

- wiper seal (See 36259)

1шт.

D23962

SEAL

- wiper, piston rod (See 17603)

1шт.

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove) See D25493

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" rin groove) See D24985

2шт.

17577

PACKING

- rod (Replaces 17597), D10256 kit includes

1шт.

17583

WIPER SEAL

- wiper, piston rod (Replaces 17603), D10256 kit includes

1шт.

70740

WASHER

- packing, piston rod (Replaces 36259) (Early production only - used with D20597 end cap only) See D25042, D10256 kit includes

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod, replaces 49482, D10256 kit includes

1шт.

D20597

X

CAP - end, cylinder (Has no. D20597 on casting) (Replaces 17592) (Early produstion only - use D25586 and D25042), D10256 kit includes

1шт.

D20794

ROD ASSY.

ROD PISTON - (1-1/2" dia.) (Includes 2 - 30634 bushings) (Replaces D20406), D10256 kit includes

1шт.

B219-1

1/8" NPT straight grease fitting (Lincoln #5000), D10256 kit includes

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 NF castle hex. nut (R25-2312), D10256 kit includes

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-3/8" cotter pin (D132-51), D10256 kit includes

1шт.

D24985

RING

- leather backup (Used only if cylinder end cap provided has .210" wide "O" ring groove), D10256 kit includes

1шт.

D25042

WASHER

- packing, piston rod (Replaces 36259) (Late production only - used with D25586 end cap only) See 70740, D10256 kit includes

1шт.

D25586

CAP

- end, cylinder (Has no. D25586 on casting) (Replaces 17592) (Late production only) See D20597, D10256 kit includes

1шт.
