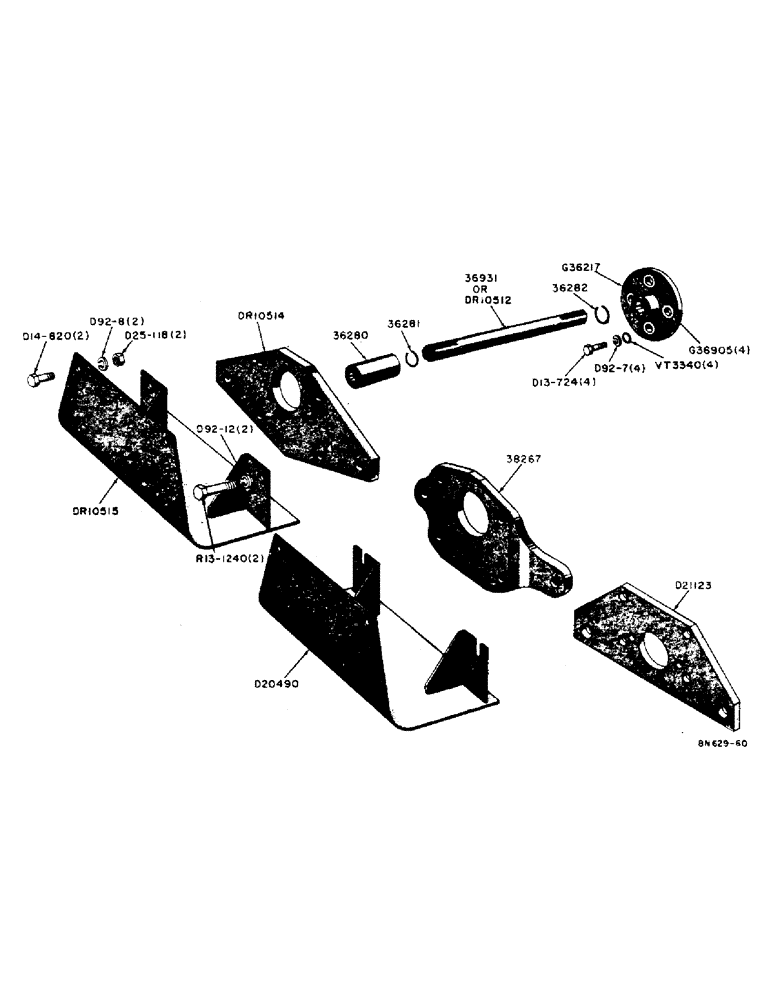

Запчасти Case UTILITY (23) - LOADER, BACKHOE HYDRAULIC PUMP DRIVE

G36217

HUB ASSY.

COUPLING - flexible, crankshaft pulley to pump drive shaft (Includes 4 - VT3340 washers)

1шт.

NSS

NOT SOLD SEPARAT

7/16" - 13 x 1-1/2" NC hex. hd. cap screw (D13-724)

4шт.

NSS

NOT SOLD SEPARAT

7/16" lockwasher (D92-7)

4шт.

G36905

BLOCK

AND BUSHING - flexible coupling

4шт.

VT3340

X

WASHER - bolt, flexible coupling

4шт.

36280

COUPLING

- hydraulic pump, Serial Range: drive-shaft

1шт.

36281

X

SNAP RING - coupling, pump, Serial Range: drive-shaft

1шт.

36282

HOUSING

SNAP RING - G36217 coupling (If used)

1шт.

36931

X

SHAFT - drive, hydraulic pump (Model 310 only) See DR10512

1шт.

38267

BRACKET - pump mounting (Model 310 only) See DR10514 and D21123

1шт.

D20490

GUARD - hydraulic pump (Model 310 only) See DR10515

1шт.

D21123

BRACKET - pump mounting (Models 210B and 310B have rear mounted filter only) See 38267 and DR10514

1шт.

DR10512

X

SHAFT - drive, hydraulic pump (Models 210B and 310B only)

1шт.

DR10514

BRACKET - pump mounting (Models 210B and 310B having front mounted filter only) See 38267 and D21123

1шт.

DR10515

GUARD - hydraulic pump (Models 210B and 310B only) See D20490

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 10 x 2-1/2" NC hex. hd. cap screw (R13-1240)

2шт.

NSS

NOT SOLD SEPARAT

3/4" lockwasher (D92-12)

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 x 1-1/4" NF hex.hd. cap screw (D14-820)

2шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (D92-8)

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 20 NF hex. nut (D25-118)

2шт.
