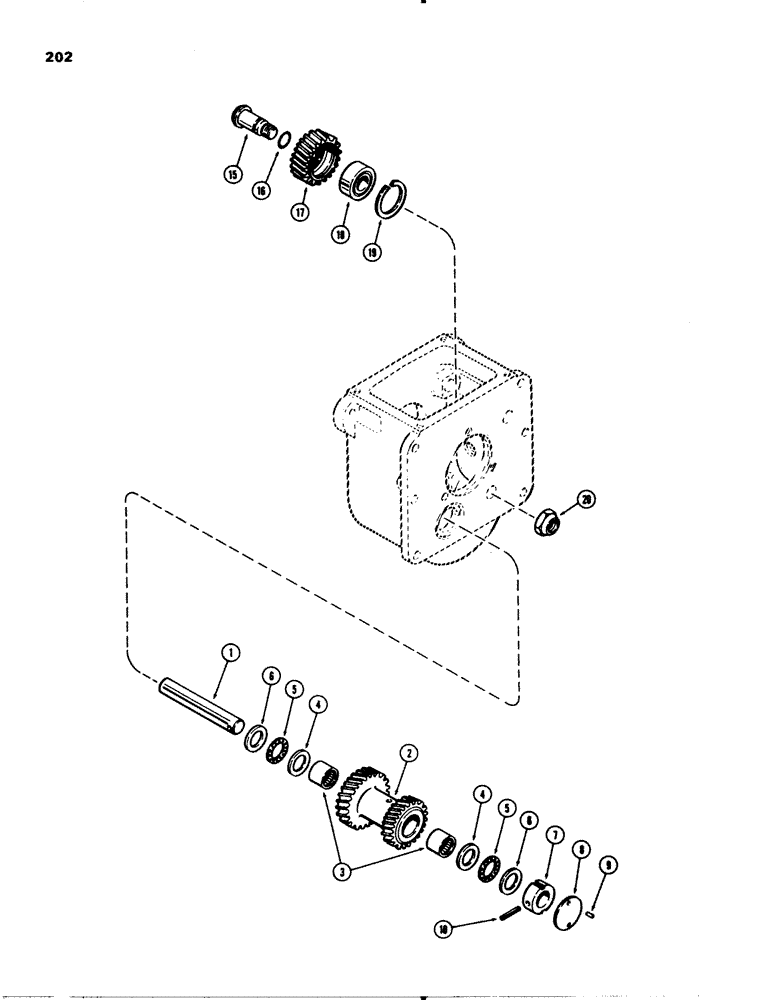

Запчасти Case 580C (202) - SHUTTLE COUNTERSHAFT, 2-SPEED MECHANICAL SHUTTLE (06) - POWER TRAIN

1

A51941

SHAFT

COUNTERSHAFT - shuttle, 5-3/4" long (141.05 mm)

1шт.

2

G16615

GEAR

countershaft (25 and 30 external teeth)

1шт.

3

G10420

NEEDLE BEARING

needle, 1 x 1-1/4 x 1" (25.4 x 31.75 x 25.4 mm)

2шт.

4

G46082

WASHER

thrust, inner, 1 x 1-9/16 x 1/8" (25.4 x 39.69 x 3.18 mm)

2шт.

5

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST

2шт.

6

G46081

BEARING WASHER

thrust, outer, 1 x 1-9/16 x 1/32' (25.4 x 39.69 x 0.79 mm)

2шт.

7

A51942

CLAMP

COLLAR - countershaft (notched)

1шт.

8

G16608

SHIM,.005" Thk

Collar (0.14 mm) .005" Thk

1шт.

9

135-49

PIN

collar (3/16 x 3/8" roll)

2шт.

10

138-2055

PIN,3/16" x 1 1/2", Coiled

Collar to shaft 3/16" x 1 1/2", Coiled

1шт.

15

A51940

STUD

gear shaft, shuttle reverse idler

1шт.

16

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

shaft, 9/16 x 3/4 x 3/32" (14.29 x 19.05 x 2.38 mm), shuttle reverse idler

1шт.

17

G16612

GEAR

shuttle reverse idler (24 external teeth)

1шт.

18

G13608

BALL BEARING

ball, 3/4 x 2 x 7/8" (19.05 x 50.8 x 22.23 mm), shuttle reverse idler

1шт.

19

A27150

RING

snap, bearing retaining, shuttle reverse idler

1шт.

20

G16614

NUT

stud retaining, shuttle reverse idler

1шт.
