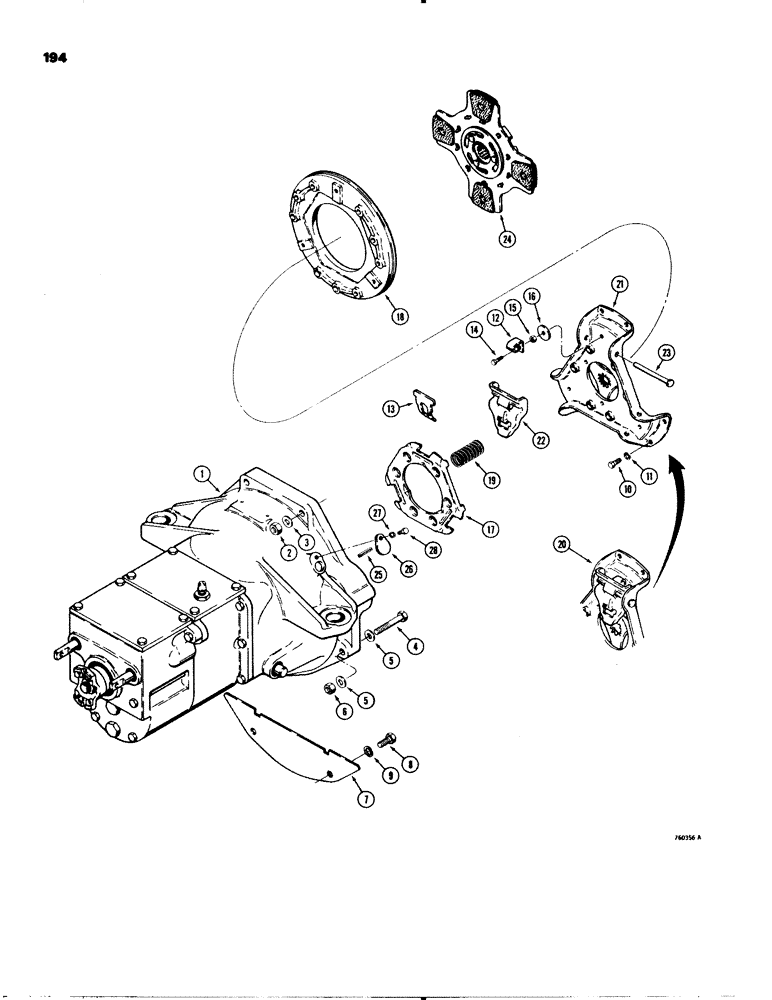

Запчасти Case 580C (194) - CLUTCH, MECHANICAL SHUTTLE AND RELATED PARTS (06) - POWER TRAIN

1

A143492

TRANSMISSION - shuttle, used before tractor sn 8955262, includes parts listed on Figures 197 - 205 except for clutch release bearing shown as Ref. 22 on Figure 197

1шт.

A143492 shuttle transmission - This is same as part nbr A150522 except for the yoke (Ref. 13 on Figure 204 - part nbr A51949).

1шт.

1

A150522

SPARE PART TRANSMISSION - shuttle, used on tractor sn 8955262 and after, includes parts listed on Figures 197 - 205 except for clutch release bearing and carrier assembly listed as Ref. 22 on Figure 197

1шт.

2

25-1110

NUT,5/8"-18, G5

NUT - hex, 5/8" - 18 NF

2шт.

3

A35147

WASHER

WASHER - hardened, 5/8"

2шт.

4

D76605

BOLT

BOLT - hex, 5/8" - 18 NF x 3-1/2", special

2шт.

5

A35147

WASHER

WASHER - hardened, 5/8"

4шт.

6

25-1110

NUT,5/8"-18, G5

NUT - hex, 5/8" - 18 NF

2шт.

7

D68669

COVER

COVER - flywheel

1шт.

8

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

BOLT, Hex, 5/8"-11 x 1", G5, Full Thd

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

G11207

BOLT

BOLT - special, pressure plate mounting

6шт.

11

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

6шт.

A39213

PLATE

PRESSURE PLATE - clutch, original equipment type without internal splined hub, order A39212 pressure plate, Includes: Ref. 12 - 23

1шт.

A39212

CLUTCH

PRESSURE PLATE - clutch, service replacement type with internal splined hub, Includes: Ref. 12 - 23

1шт.

A39212R

REMAN-CLUTCH PLATE

580C, Case Construction King Loader Backhoe

1шт.

A39212C

CORE-CLUTCH PLATE

Return Part Number

1шт.

5092792R

REMAN-CLUTCH PLATE

Reman for New PN A39212

1шт.

5092792C

CORE-CLUTCH PLATE

Return Part Number

1шт.

12

A43607

CLIP

CLIP - clutch return

3шт.

13

A43605

LINK

LINK - pressure plate

3шт.

14

A43608

SCREW,5/16" - 24 x 0.79", Steel

- lever adjustment

3шт.

15

25-155

JAM NUT,Jam, 5/16"-24, G5

NUT - hex, jam, 5/16" - 24 NF

3шт.

16

G49048

WASHER

WASHER - flat, adjuster

3шт.

17

A43613

RING

RING - pressure plate spring

1шт.

18

A43609

PLATE

PLATE - pressure

1шт.

19

A43612

SPRING

KIT - pressure spring, set of 6, yellow code, Includes: Ref. 20 - 23

1шт.

20

A43660

BRACKET

BRACKET ASSEMBLY - pressure plate

1шт.

21

NSS

NOT SOLD SEPARAT

BRACKET - pressure plate

1шт.

22

NSS

NOT SOLD SEPARAT

LEVER - pressure spring

3шт.

23

NSS

NOT SOLD SEPARAT

PIN - pivot, lever

3шт.

24

A51840

CLUTCH DISC

CLUTCH DISK PLATE - clutch, driven

1шт.

24

1997844C1R

REMAN-CLUTCH DISC,276.35mm OD

Remanufactured Clutch Disc, 11 in., 21Tooth hub, 4 paddle

1шт.

24

1997844C1C

CORE-CLUTCH DISC

Return Number

1шт.

25

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Timing pin 1/8" x 1 1/2", Slotted

1шт.

26

A29068

COVER

COVER - timing hole

1шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.
