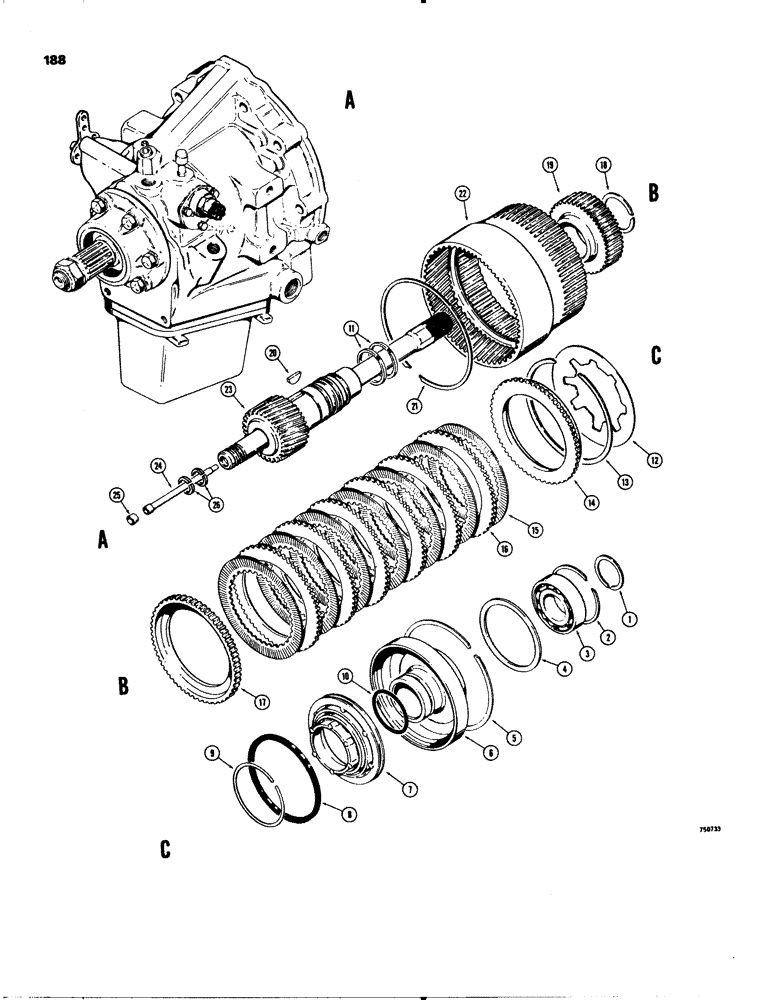

Запчасти Case 580C (188) - POWER SHUTTLE TRANSMISSION, DRIVE GEAR AND FORWARD CLUTCH (06) - POWER TRAIN

REF

INSTRUCTION

SHUTTLE ASSEMBLY - complete, see Figures 180 - 190, Includes: Ref. 1 - 26

1шт.

1

D50042

RING

- bearing retaining, small

1шт.

2

D50043

RING

- bearing retaining, large

1шт.

3

D50044

BALL BEARING

BEARING - clutch cylinder

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

- thrust

1шт.

5

D50046

RING

- ring gear retaining

1шт.

6

D50075

CYLINDER

- forward clutch

1шт.

D50075 forward clutch cylinder - The inside dia. of the cylinder where the piston seal (D50077) rubs should be polished to a surface of 50 micro inch maximum. Some housings have not been polished and have a rough, grooved surface. This rough surface will result in early deterioration of the piston seal. When rebuilding the power shuttle, inspect the inside dia. of the forward clutch cylinder and polish out any rough tool marks by using fine emery paper. (inside dia. of D50075 is 4.585/4.588 in. and must hav

1шт.

7

D70670

PISTON

- forward clutch

1шт.

8

D50077

RING

- clutch

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

- bearing

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

O-RING

1шт.

11

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

- sealing

2шт.

12

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

- Belleville

1шт.

13

D50048

CIRCLIP

RING - retaining, clutch spring

1шт.

14

D50081

PLATE,139.12mm OD

PRESSURE PLATE - front

1шт.

15

D70672

PLATE

- clutch, internal tooth

7шт.

16

D50083

PLATE

- clutch, external tooth

6шт.

17

D50084

PLATE,139.45mm OD

PRESSURE PLATE - rear

1шт.

18

D50049

RING

- clutch hub retaining

1шт.

19

D50050

HUB

- clutch

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

21

Q1127842

PIN

RING - .050" (1.270 mm) to .054" (1.372 mm) thick

1шт.

21

D78397

RING

- .062" (1.575 mm) to .066" (1.676 mm) thick

1шт.

21

D50052

RING

- .074" (1.880 mm) to .078" (1.981 mm) thick

1шт.

21

D78398

RING

- .084" (2.314 mm) to .088" (2.235 mm) thick

1шт.

21

D50053

RING

- .096" (2.438 mm) to .100" (2.540 mm) thick

1шт.

22

D50054

GEAR

RING GEAR

1шт.

D70666

GEAR

DRIVE GEAR AND SHAFT ASSEMBLY, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT - drive

1шт.

24

D70667

TUBE,0.3155" DIA x 5.26" L

- forward clutch supply

1шт.

25

D50086

PLUG

- shaft end

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

- seal

2шт.
