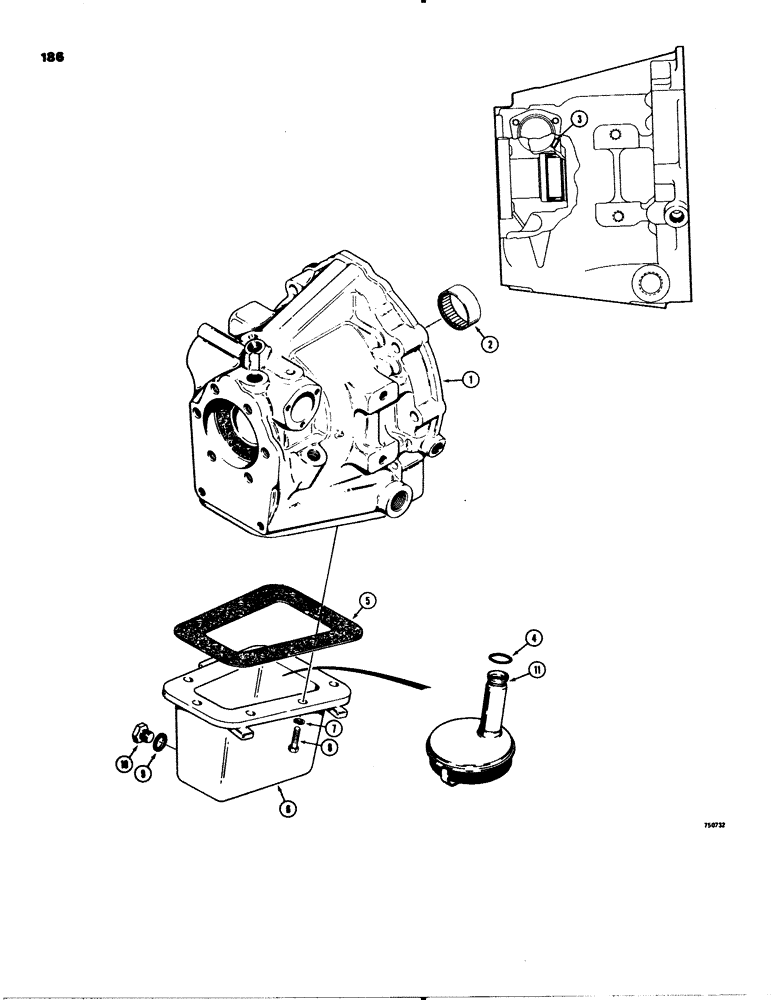

Запчасти Case 580C (186) - POWER SHUTTLE TRANSMISSION, HOUSING AND OIL PAN (06) - POWER TRAIN

REF

INSTRUCTION

SHUTTLE ASSEMBLY - for complete shuttle see Figures 180 - 190, Includes: Ref. 1 - 11

1шт.

D70650

HOUSING

ASSEMBLY - shuttle, Includes: Ref. 1 and 2

1шт.

When replacement housings are ordered for shuttles with sn 151 - 471, a new D50062 Breather should also be ordered. The original equipment breather on these housings will not fit the new housing. See Figure 180, Refs. 33 and 33A.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - shuttle

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle, 1-3/4 in ID

1шт.

3

41-1007

PLUG,Cup, 7/16"

- cup

1шт.

4

R29797

O-RING,0.07" Thk x 0.739" ID

1шт.

5

R29956

GASKET,0.76mm Thk

- oil pan

1шт.

5

345-84

ADHESIVE

SEAL - 3 oz (89 ml) of sealer in a tube, not shown, can be used in place of R29956 gasket

1шт.

6

R29902

PAN

- oil

1шт.

7

92-6

LOCK WASHER,3/8"

7шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

D73701

PLUG

ASSEMBLY - drain, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - drain plug

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - drain

1шт.

11

D66455

FILTER SCREEN

SCREEN - sump, shuttle

1шт.
