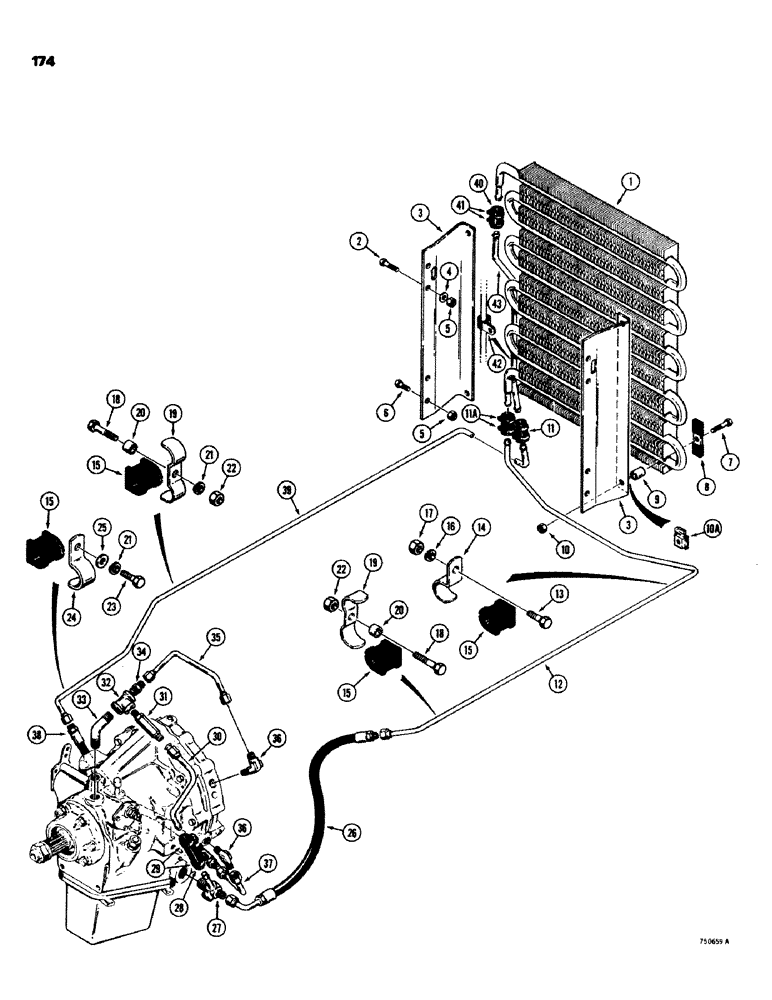

Запчасти Case 580C (174) - POWER SHUTTLE TRANSMISSION COOLING SYSTEM, BEFORE TRACTOR S/N 8961374 (06) - POWER TRAIN

1

D68834

COOLER

- transmission oil

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex, 3/8" - 10 NC x 1"

2шт.

3

D75234

BRACKET

- cooler, when replacing brackets using loose hex nuts (Ref. 10) or welded on square nuts also order (2) 131-639 (Ref. 10A) J-type nuts

2шт.

4

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

5

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC

4шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16"-18 NC x 1-1/2"

4шт.

8

D54416

CLAMP

PLATE - clamp, cooler mounting

4шт.

9

D75075

SPACER

- cooler mounting plate

4шт.

10

131-651

NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC, if used

4шт.

10a

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- J-type, 5/16" - 18 NC, if used

4шт.

11

D69050

HOSE

- cooler to tube, 1/2" (13 mm) ID x 3" (76 mm) long

1шт.

11a

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

12

D69004

PIPE

TUBE - cooler outlet

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

14

D68638

CLAMP

- tube

1шт.

15

D67296

GROMMET

BLOCK - isolation

6шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

D68646

CLAMP

- tube

2шт.

20

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

24

D68638

CLAMP

- tube

1шт.

25

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

26

D69051

HOSE

- shuttle inlet, 18" (457 mm) long

1шт.

27

D68972

CONNECTOR, ELEC

FITTING - shuttle inlet tee

1шт.

28

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Shuttle Inlet 12.7 mm ID x 101.60 mm, SAE 100R3

1шт.

29

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

30

D68973

HYD TUBE,0.5" OD x 4.84, 2.51" L

TUBE - shuttle inlet

1шт.

31

D48540

VALVE POPPET

VALVE - relief

1шт.

32

221-423

TEE,3/8" NPT

FITTING - tee, 3/8" NPT

1шт.

33

D48539

FITTING

- pipe elbow, 75 degree special

1шт.

34

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

FITTING - straight, male adapter

1шт.

35

D48523

TUBE

- shuttle inlet

1шт.

36

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

FITTING - 90 degree

2шт.

37

D65479

TUBE

- shuttle outlet

1шт.

38

D65481

HOSE

- shuttle outlet, 12" (305 mm) long

1шт.

39

D69006

HYD TUBE,0.5" OD x 46.02, 7.32" L

TUBE - cooler inlet

1шт.

40

D69050

HOSE

- cooler inlet tubes, 1/2" (13 mm) ID x 3" (76 mm) long

1шт.

41

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

42

49854

CLAMP

- tube

1шт.

43

D69076

PIPE

TUBE - cooler inlet

1шт.
