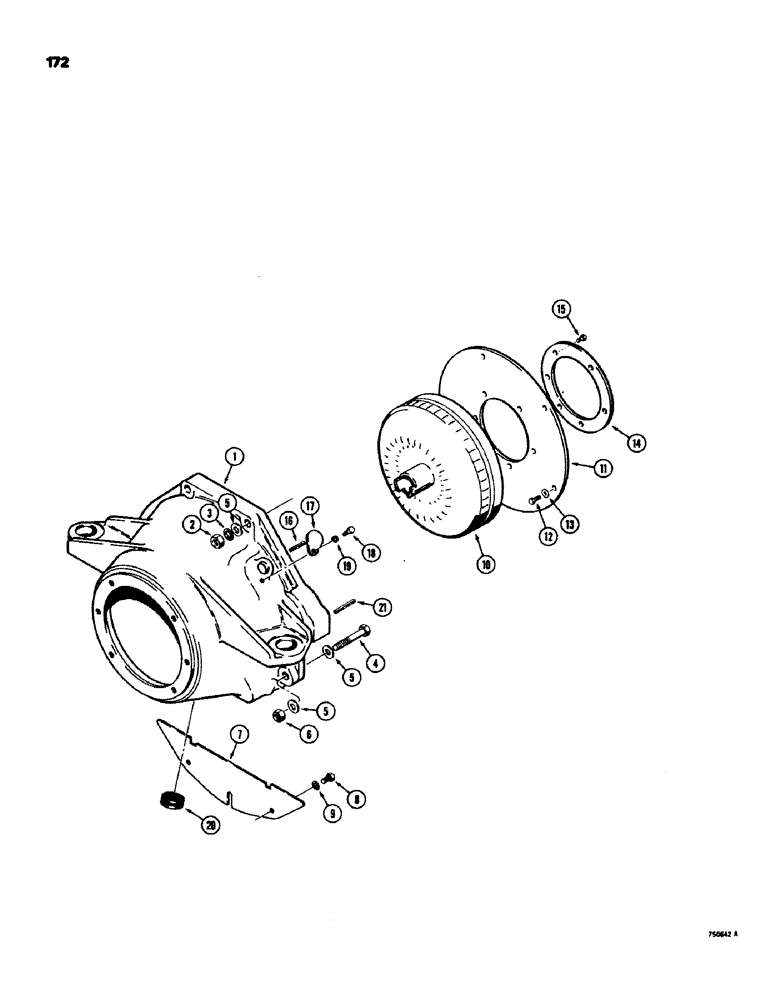

Запчасти Case 580C (172) - TORQUE CONVERTER, HOUSING AND RELATED PARTS (06) - POWER TRAIN

1

D63263

HOUSING

- torque converter

1шт.

2

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , No longer used, not required 5/8"

2шт.

4

D76605

BOLT

- hex, 5/8" - 18 NF x 3-1/2"

2шт.

5

A35147

WASHER

- flat, hardened, 5/8"

6шт.

6

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

2шт.

7

D68670

COVER ASSY

COVER - flywheel

1шт.

8

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8" - 16 NC x 1/2"

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

D71758

CONVERTER

TORQUE CONVERTER - transmission

1шт.

11

A15670

PLATE

- torque converter

1шт.

12

121-103

BOLT,Lock Place, Hex, 5/16" - 18 x 5/8", Gr 8

Special, converter mounting Hex, Lock, 5/16"-18 x 5/8"

6шт.

13

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

- flat, special

6шт.

14

D81592

PLATE

- converter drive

1шт.

15

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

- special, converter drive plate mounting

6шт.

16

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Timing pin 1/8" x 1 1/2", Slotted

1шт.

17

A29068

COVER

- timing hole

1шт.

18

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

D68661

PLUG

- converter drain

1шт.

21

139-62

PIN,1/8" x 1", Tapered

- taper dowel

2шт.
