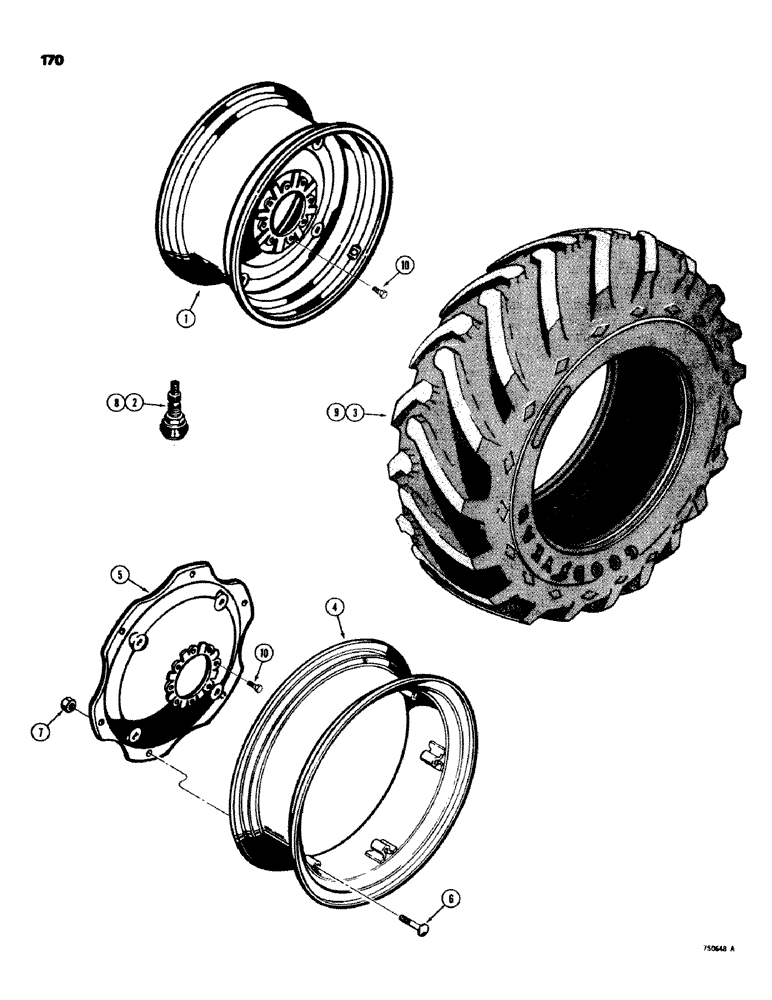

Запчасти Case 580C (170) - REAR WHEELS AND TIRES, 14.9 X 24 - FIXED DISC WHEEL (06) - POWER TRAIN

1

A139083

WHEEL

rim, 14.9 x 24 - Fixed Disc

2шт.

2

A20058

VALVE STEM

- Rim

2шт.

3

REF

INSTRUCTION

TIRE - rear

2шт.

1

A139085

WHEEL

rim, 16.9 x 24 and 17.5 x 24, fixed disc, 16.9 x 24 and 15.5L x 24

2шт.

2

A20058

VALVE STEM

- Rim, 16.9 x 24 and 15.5L x 24 fixed disc wheel

2шт.

3

REF

INSTRUCTION

TIRE - rear, 16.9 x 24 and 15.5L x 24 fixed disc wheel

2шт.

1

A139084

RIM

WHEEL - 14.9 x 24, Offset Fixed Disc Wheel, 14.9 x 24

2шт.

2

A20058

VALVE STEM

- Rim, 14.9 x 24 - offset fixed disc wheel

2шт.

3

REF

INSTRUCTION

TIRE - rear, 14.9 x 24 offset fixed disc wheel

2шт.

4

D72304

RIM

- tire, 14.9 x 24, Demountable, 14.9 x 24

2шт.

5

D72323

DISC, WHEEL

demountable, 14.9 x 24 rim

2шт.

6

G10701

BOLT

5/8" - 18 NF x 2-11/16", special, 14.9 x 24 - demountable rim

12шт.

7

129-565

SPECIAL NUT,5/8"-18, G5

hex, 5/8" - 18 NF, plated, 14.9 x 24 - demountable rim

12шт.

8

A20058

VALVE STEM

- Rim, 14.9 x 24 - demountable

2шт.

9

REF

INSTRUCTION

TIRE - rear, 14.9 x 24 - demountable rim

2шт.

4

D72303

RIM

tire, 16.9 x 17.5L, Demountable, 16.9 x 24 and 17.5l x 24 demountable rims

2шт.

5

D72323

DISC, WHEEL

16.9 x 24 and 17.5l x 24 demountable rims

2шт.

6

G10701

BOLT

5/8" - 18 NF x 2-11/16", special, 16.9 x 24 and 17.5l x 24 demountable rims

12шт.

7

129-565

SPECIAL NUT,5/8"-18, G5

hex, 5/8" - 18 NF, plated, 16.9 x 24 and 17.5l x 24 demountable rims

12шт.

8

A20058

VALVE STEM

- Rim, 16.9 x 24 and 17.5l x 24 demountable

2шт.

9

REF

INSTRUCTION

TIRE - rear, 16.9 x 24 and 17.5l x 24 demountable rims

2шт.

10

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

TIRE - wheel retaining

16шт.
