(168) - FRONT WHEELS AND TIRES, 7.50 X 16 - 10PLY TIRES

Запчасти Case 580C (168) - FRONT WHEELS AND TIRES, 7.50 X 16 - 10PLY TIRES (05) - STEERING

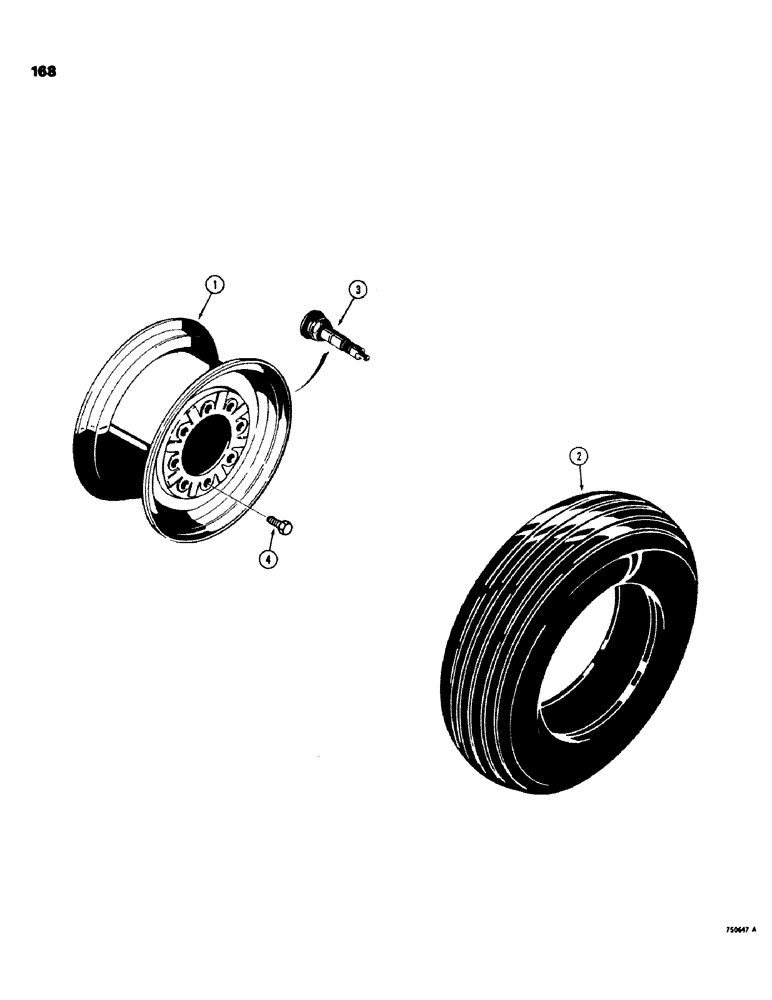

Схема запчастей Case 580C - (168) - FRONT WHEELS AND TIRES, 7.50 X 16 - 10PLY TIRES (05) - STEERING
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A139081

WHEEL

- rim, 7.50 x 16 - 10 Ply Tires

2шт.

2

REF

INSTRUCTION

TIRE - front

2шт.

3

A38261

VALVE

STEM - wheel

2шт.

1

A139082

WHEEL

- rim, 11L x 16 - 10 Ply Tires

2шт.

2

REF

INSTRUCTION

front 11L x 16 - 10 Ply Tires

2шт.

3

A38261

VALVE

TEM - wheel, 11L x 16 - 10 Ply Tires

2шт.

4

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel retaining

16шт.
