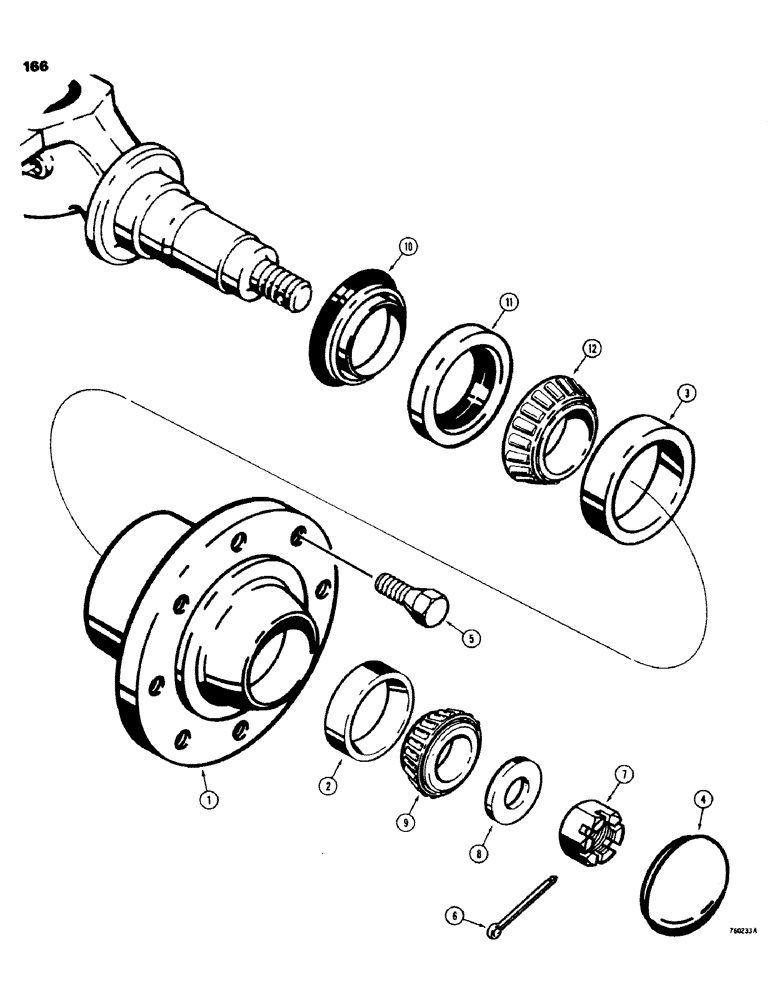

Запчасти Case 580C (166) - FRONT WHEEL HUB AND BEARINGS (05) - STEERING

A66759

HUB

ASSEMBLY - front wheel, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

HUB - front wheel

1шт.

2

G15214

BEARING CUP

RACE - outer bearing

1шт.

3

A61446

BEARING CUP

RACE - inner bearing

1шт.

4

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel retaining

16шт.

6

132-317

COTTER PIN,3/16" x 2"

PIN - cotter, 3/16" x 2"

2шт.

7

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, slotted, 1-1/8" - 12 NF

2шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

- flat, 1-1/8"

2шт.

9

G15215

ROLLER BEARING

BEARING - tapered roller, outer

2шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- bearing, spindle

2шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- bearing, hub

2шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

BEARING - tapered roller, inner

2шт.
