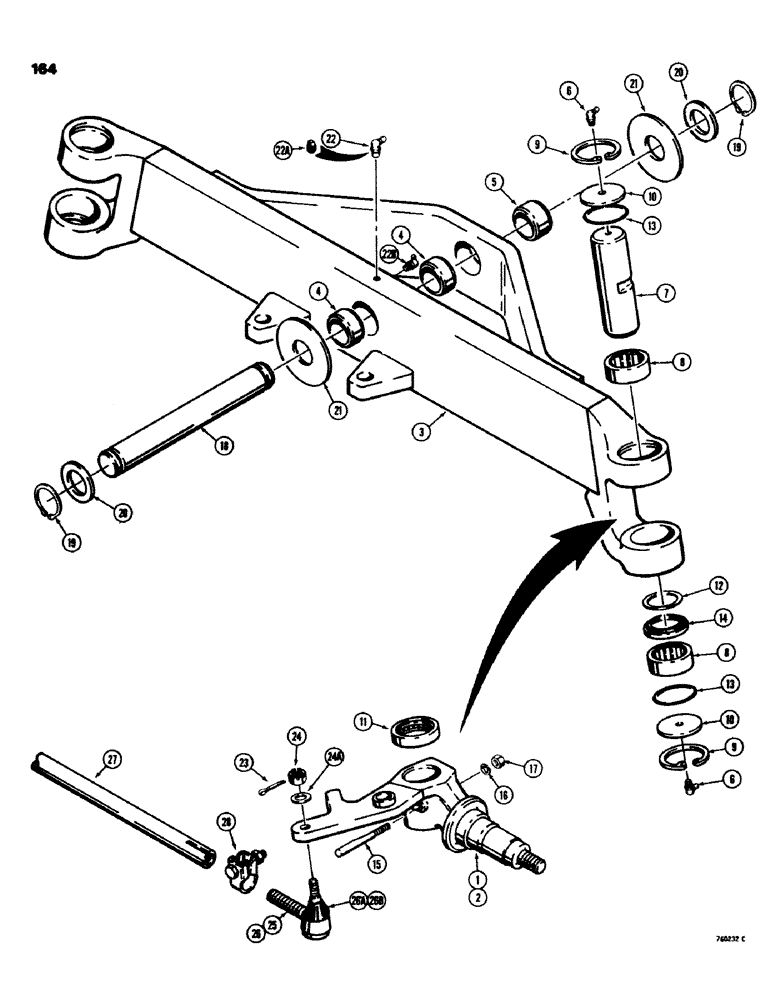

Запчасти Case 580C (164) - FRONT AXLE AND SPINDLES (05) - STEERING

1

D86343

SPINDLE

- RH

1шт.

2

D86344

SPINDLE

- LH

1шт.

3

D67317

SPARE PART

AXLE - front, Includes: Ref. 4 and 5

1шт.

D67317 front axle - Welded yokes at ends of this axle are D69359 (RH) and D69360 (LH).

1шт.

4

D61241

BUSHING,44.68mm ID x 57.15mm OD x 23.88mm L

- axle

3шт.

5

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- axle

1шт.

6

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8" NPT

4шт.

7

D72337

PIN,50.8mm OD x 168.91mm L

- king

2шт.

8

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - king pin

4шт.

9

A27463

SNAP RING,2.375", Int, #237

4шт.

10

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER - king pin

4шт.

11

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - spacer

2шт.

12

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

RACE - bearing

2шт.

13

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk

4шт.

14

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

- oil

2шт.

15

D57486

PIN

- king pin lock

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

2шт.

18

D64171

PIN,44.45mm OD x 352.55mm L

- axle pivot

1шт.

19

D25280

SNAP RING,#175, Ext

RING - external lock

2шт.

20

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- spacer

2шт.

21

D61076

WASHER,46mm ID x 114mm OD x 4.78mm Thk

- spacer

1шт.

22

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8" NPT, if used

1шт.

22a

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT, used on top of axle, used with Ref. 22A

1шт.

23

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

24

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8" - 18 NF

2шт.

24a

195-2084

WASHER,13/16" x 1 1/4" x .067", HDN

- flat, 5/8", special

4шт.

25

D88491

BALL JOINT,7/8" - 18 x 3-3/4"

- tie rod, RH, interchangeable with D71713

1шт.

26

D88492

BALL JOINT,7/8" - 18 x 3-3/4"

- tie rod, LH, interchangeable with D71714, Includes: Ref. 26A and 26B

1шт.

26a

D80438

COVER

- dust, ball joint

1шт.

26b

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, if used, not shown

1шт.

27

D73397

TIE-ROD,7/8” ID x 1.5” OD x 42.1” L

- tie rod

1шт.

28

D73799

CLAMP

- tie rod, includes hardware

2шт.
