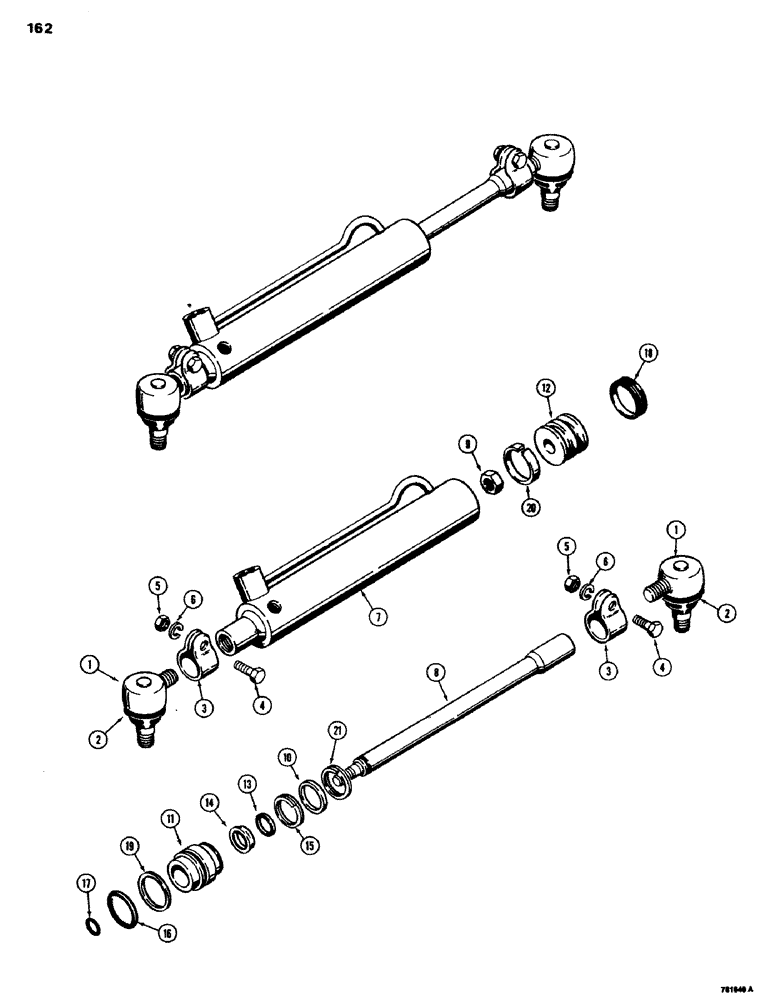

Запчасти Case 580C (162) - D84800 STEERING CYLINDERS, WITH DOUBLE GROOVE PISTON (05) - STEERING

D84800

CYLINDER

- steering, Includes: Ref. 1 - 21

2шт.

234447A1R

REMAN-HYD CYLINDER

580C, Reman for New P/N D84800

2шт.

234447A1C

CORE-HYD CYLINDER

Return Number

2шт.

1

A40962

BALL JOINT

END ASSEMBLY - male thread, Includes: Ref. 2

2шт.

2

A41424

SEAL

- dust cover

1шт.

3

A27080

CLAMP

ASSEMBLY - end, Includes: Ref. 4 - 6

2шт.

4

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex, 3/8" - 24 NF x 1-1/2"

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

D83188

CYLINDER

TUBE - cylinder

1шт.

8

A44642

ROD

- cylinder

1шт.

9

131-1145

JAM NUT,5/8" - 18

NUT - hex, self lock, 9/16" - 18 NF

1шт.

10

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

- head

1шт.

11

D83189

GLAND

ASSEMBLY - cylinder, includes bushing

1шт.

12

D83190

PISTON

- cylinder

1шт.

D83184

GASKET KIT

KIT - cylinder repair, Includes: Ref. 13 - 20

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

14

D83187

SEAL,19.05mm ID x 25.4mm OD x 7.18mm W

- rod

1шт.

15

A44652

SNAP RING,#150, 1.591", Int, Spiral

RING - lock, gland

1шт.

16

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

- outer gland

1шт.

17

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- rod to piston

1шт.

18

D83185

SEAL

- piston

1шт.

19

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

20

D83186

SEAL

RING - wear

1шт.

21

A44654

SNAP RING,#125, 1.188", Ext Spiral

RING - lock, outer

1шт.
