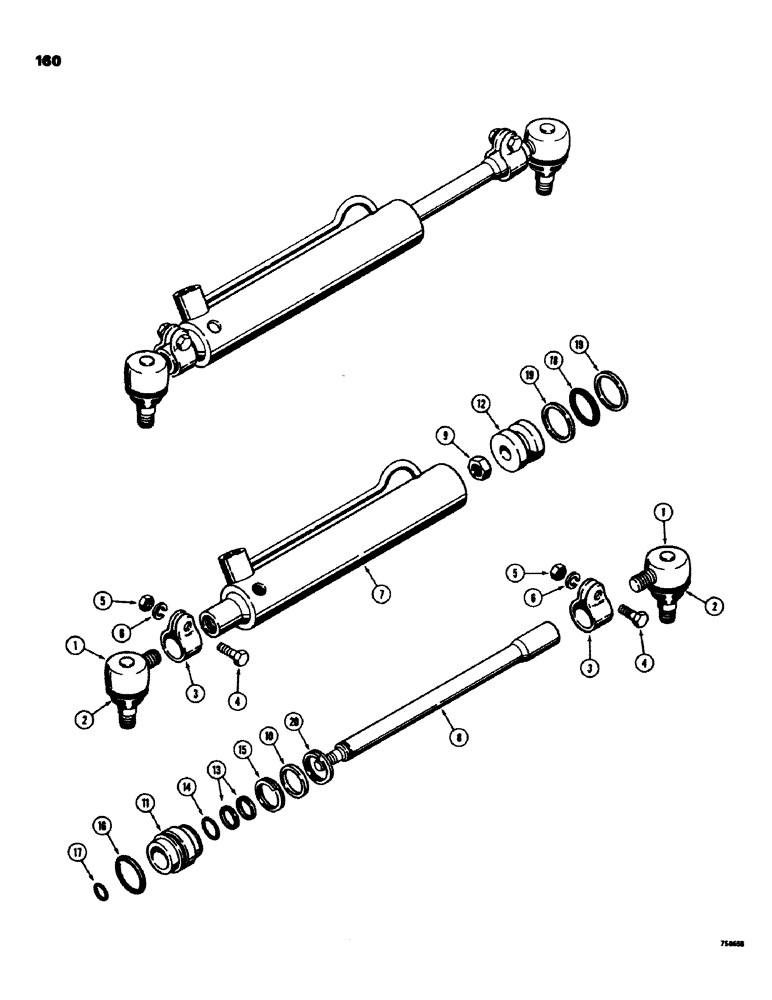

Запчасти Case 580C (160) - A137503 STEERING CYLINDERS, WITH SINGLE GROOVE PISTON (05) - STEERING

A137503

CYLINDER

- steering, order D84800, see Figure 162, Includes: Ref. 1 - 20

2шт.

234466A1R

REMAN-HYD CYLINDER

580C, Reman For New P/N A137503

2шт.

234466A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

A40962

BALL JOINT

END ASSEMBLY - male thread, Includes: Ref. 2

2шт.

2

A41424

SEAL

- dust cover

1шт.

3

A27080

CLAMP

ASSEMBLY - end, Includes: Ref. 4 - 6

2шт.

4

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex, 3/8" - 24 NF x 1-1/2"

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

8

A44642

ROD

- cylinder

1шт.

9

131-1145

JAM NUT,5/8" - 18

NUT - hex, self lock, 9/16" - 18 NF

1шт.

10

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

- cylinder head

1шт.

11

A47559

GLAND

ASSEMBLY - cylinder, includes bushings

1шт.

12

A44640

PISTON

- cylinder

1шт.

A44644

SEAL KIT

KIT - cylinder repair, Includes: Ref. 13 - 19

1шт.

13

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER - rod

2шт.

14

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- inner gland

1шт.

15

A44652

SNAP RING,#150, 1.591", Int, Spiral

RING - lock, gland

1шт.

16

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

- outer gland

1шт.

17

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- rod to piston

1шт.

18

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- piston

1шт.

19

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

RING - backup, leather

2шт.

20

A44654

SNAP RING,#125, 1.188", Ext Spiral

RING - lock, outer

1шт.
