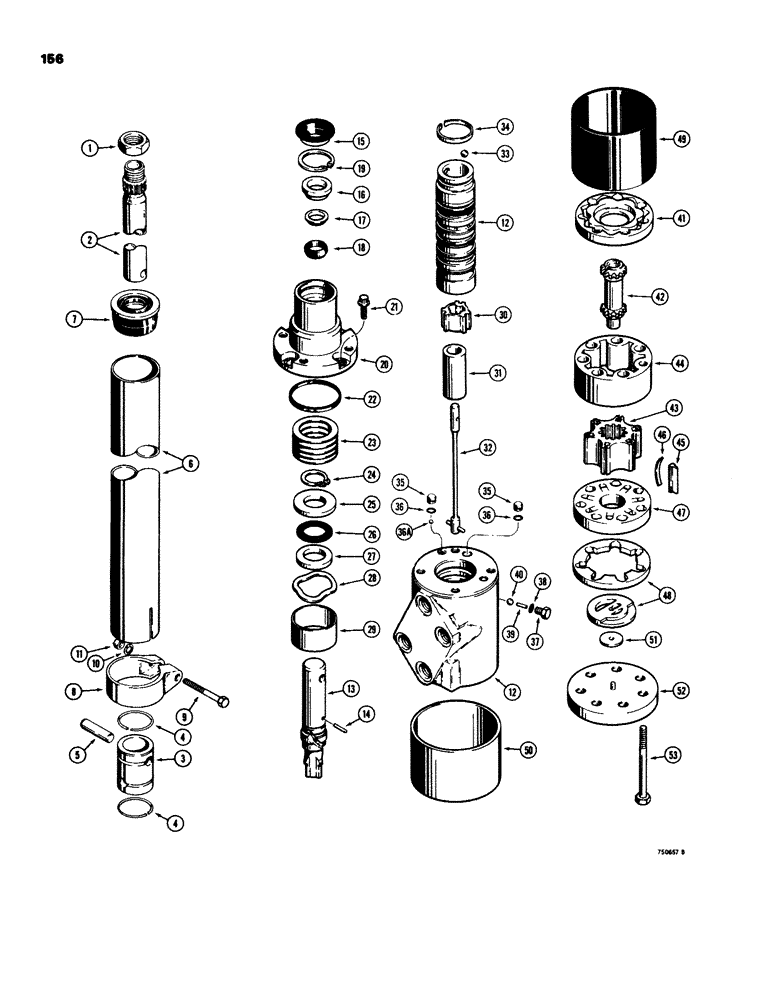

Запчасти Case 580C (156) - STEERING VALVE AND COLUMN (05) - STEERING

D63250

VALVE

STEERING VALVE AND COLUMN - Includes: Refs. 1 - 53

1шт.

D63250 steering valve and column - Part nbrs A43548 spring and A43549 roller (neither shown) are also part of this assembly and fit somewhere within Ref. 12 housing

1шт.

D89898R

REMAN-STEERING VALVE

580C CASE CONSTRUCTION KING LOADER BACKHOE, STEERING VALVE AND COLUMN, Reman for New PN D63250

1шт.

D89898C

CORE-STEERING VALVE

Return Number

1шт.

1

A14567

JAM NUT

- steering wheel retaining

1шт.

2

D71310

SHAFT

- steering column

1шт.

D72851

KIT

- coupling, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

COUPLING - steering, Serial Range: column-valve

1шт.

4

NSS

NOT SOLD SEPARAT

RING - pin retaining

2шт.

5

L35654

PIN

- coupling

2шт.

D71312

TUBE

JACKET ASSEMBLY - steering column, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

JACKET - steering column

1шт.

7

L35675

SEAL

- steering column

1шт.

L35657

CLAMP

ASSEMBLY - tube, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CLAMP - tube

1шт.

9

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- hex, 5/16" - 24 NF x 2"

1шт.

10

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

11

129-122

NUT,5/16"-24, G5

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL ASSEMBLY

1шт.

13

A43551

SHAFT

- input, valve

1шт.

14

D53297

PIN

- torsion bar retaining

1шт.

D73671

SEAL

KIT - shaft, Includes: Ref. 15 - 18

1шт.

15

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- dirt

1шт.

16

NSS

NOT SOLD SEPARAT

SPACER - seal kit

1шт.

17

NSS

NOT SOLD SEPARAT

RING - seal, no longer used

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.

19

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, brg

1шт.

20

D65139

COVER

- upper

1шт.

21

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - 5/16" - 18 NC x 3/4"

4шт.

22

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- cover

1шт.

23

A44435

SHIM

KIT - cover

1шт.

24

A43720

RING

- retaining, shaft

1шт.

25

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust

1шт.

26

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust

1шт.

27

F19634

BEARING WASHER

WASHER - thrust

1шт.

28

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave

1шт.

29

N6514

BUSHING

SPACER - bearing

1шт.

30

A43554

RING

- drive

1шт.

31

L36011

BUSHING

SPACER - drive link

1шт.

32

N6456

BAR

- torsion

1шт.

33

211-9

BALL,5/16" Dia

- 5/16" Dia

1шт.

34

N6458

SPRING

- preload

1шт.

L36015

PLUG

ASSEMBLY - valve, Includes: Ref. 35 and 36

1-2шт.

35

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

36

A43729

O-RING

- seal

1шт.

36a

211-7

BALL,1/4" Dia

- check, if used 1/4" Dia

1шт.

F82943

VALVE

CHECK ASSEMBLY - ball type, if used, Includes: Ref. 37 - 40

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG - check assembly

1шт.

38

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

39

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Check assembly 1/8" x 15/16", Slotted

1шт.

40

211-7

BALL,1/4" Dia

- check 1/4" Dia

1шт.

41

A43569

BUSHING

SPACER - link

1шт.

42

A43568

LINK

- drive

1шт.

D78406

ROTOR

SET - steering valve, Includes: Ref. 43 - 46

1шт.

43

NSS

NOT SOLD SEPARAT

GEAR - star

1шт.

44

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

45

A42778

LOCK VALVE

VANE - star

6шт.

46

A42219

SPRING

- vane

6шт.

47

A43573

MANIFOLD

- steering valve

1шт.

48

A43574

COMMUTATOR

- steering valve

1шт.

49

D74440

SEAL

- rotor

1шт.

50

D71315

RETAINER

- seal

1шт.

51

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - wear, rotot

1шт.

52

A45182

COVER

- end

1шт.

53

D71316

BOLT

- hex, 5/16" - 18 NC x 2-11/16", special

7шт.
