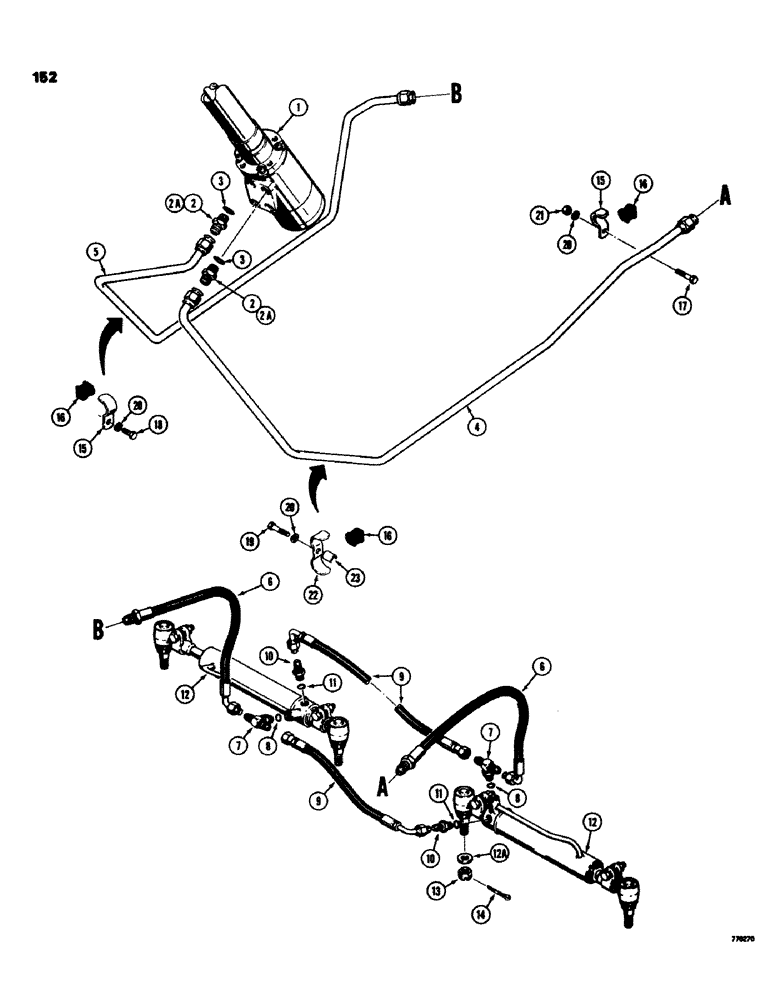

Запчасти Case 580C (152) - STEERING HYDRAULIC CIRCUIT, VALVE TO CYLINDERS (05) - STEERING

1

D63250

VALVE

- steering, includes column, parts list Figure 156

1шт.

1

D89898R

REMAN-STEERING VALVE

580C CASE CONSTRUCTION KING LOADER BACKHOE, steering, Reman for New PN D63250

1шт.

1

D89898C

CORE-STEERING VALVE

Return Number

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

FITTING - straight, male adapter, if used

2шт.

2a

D76050

HARDWARE

FITTING - straight, male adapter, restrictor type, if used, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 218-5351 or D76050 fittings

1шт.

4

D68790

HYD TUBE,0.5" OD x 36.7, 22.9" L

TUBE - to RH steering cylinder

1шт.

5

D68792

HYD TUBE,0.5" OD x 33.51, 14.79" L

TUBE - to LH steering cylinder

1шт.

6

D62390

HOSE,9.53mm ID x 508mm L, SAE 100R1

- to steering cylinders, 20" (508 mm) long

2шт.

7

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - adjustable tee, Includes: Ref. 8

2шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

9

D65620

HOSE

- between cylinders, 16" (406 mm) long

2шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - straight, male adapter, Incl. Ref. 11

2шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

12

REF

INSTRUCTION

CYLINDER - steering, parts list Figure 160 or 162

2шт.

12a

95-10

WASHER,5/8"

- flat, 5/8"

1шт.

13

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8" - 18 NF

4шт.

14

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

15

D68638

CLAMP

- tube

3шт.

16

D67296

GROMMET

BLOCK - tube clamp

4шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8" - 16 NC x 1/2"

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

1шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

22

D68646

CLAMP

- tube

1шт.

23

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

1шт.
