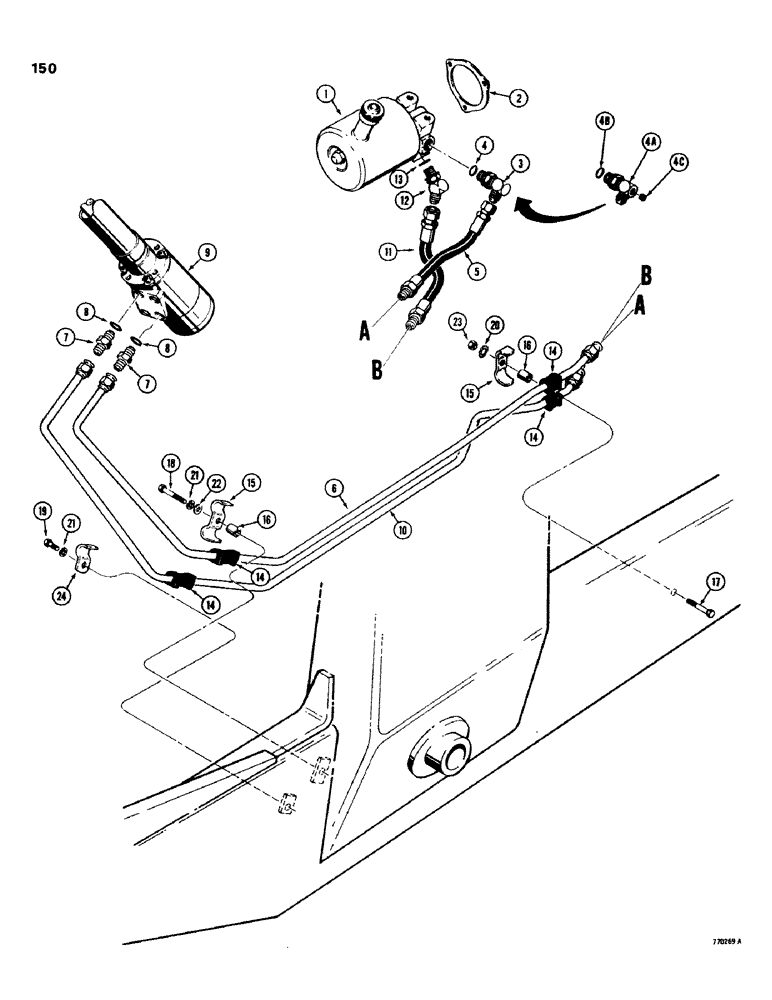

Запчасти Case 580C (150) - STEERING HYDRAULIC CIRCUIT, PUMP TO VALVE (05) - STEERING

1

D84179

PUMP

- power steering, parts list Figure 154

1шт.

D84179R

REMAN-HYD PUMP

580C

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

A30042

GASKET

- power steering pump

1шт.

3

R30587

ELBOW

FITTING - adjustable, 90 degree, if used, Includes: Ref. 4

1шт.

Must be ordered from DPNI and after their stock is depleted order part nbr 198352 from Allied Systems Co (phone 503-625-2560).

1шт.

4a

R30587

ELBOW

FITTING - special, 90 degree, if used, Includes: Ref. 4B

1шт.

4c

221-849

PLUG,Hex Soc, 1/8"-27

- hex, socket head, 1/2" NPT, if used

1шт.

5

D63184

HOSE,9.53mm ID x 304.8mm L, SAE 100R2

- from pump, 12" (305 mm) long

1шт.

6

D68794

HYD TUBE,0.5" OD x 35.79, 14.05" L

TUBE - to valve, pressure

1шт.

7

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

FITTING - straight, male adapter, Includes: Ref. 8

2шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

D63250

VALVE

- steering, includes column, parts list Figure 156

1шт.

9

D89898R

REMAN-STEERING VALVE

580C CASE CONSTRUCTION KING LOADER BACKHOE, steering, Reman for New PN D63250

1шт.

9

D89898C

CORE-STEERING VALVE

Return Number

1шт.

10

D68796

HYD TUBE,0.5" OD

TUBE - from valve, return

1шт.

11

D63184

HOSE,9.53mm ID x 304.8mm L, SAE 100R2

- to pump, 12" (305 mm) long

1шт.

12

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING - adjustable, 45 degree, Incl. Ref 13

1шт.

14

D67296

GROMMET

BLOCK - isolation

4шт.

15

D68646

CLAMP

- tube

2шт.

16

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

2шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

1шт.

19

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8" - 16 NC x 1/2"

1шт.

20

193-72

LOCK WASHER

- internal-external tooth lock, 3/8"

1шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

195-25

WASHER,3/8"

- flat, , if used 3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

24

D68638

CLAMP

- tube

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

4b

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.
