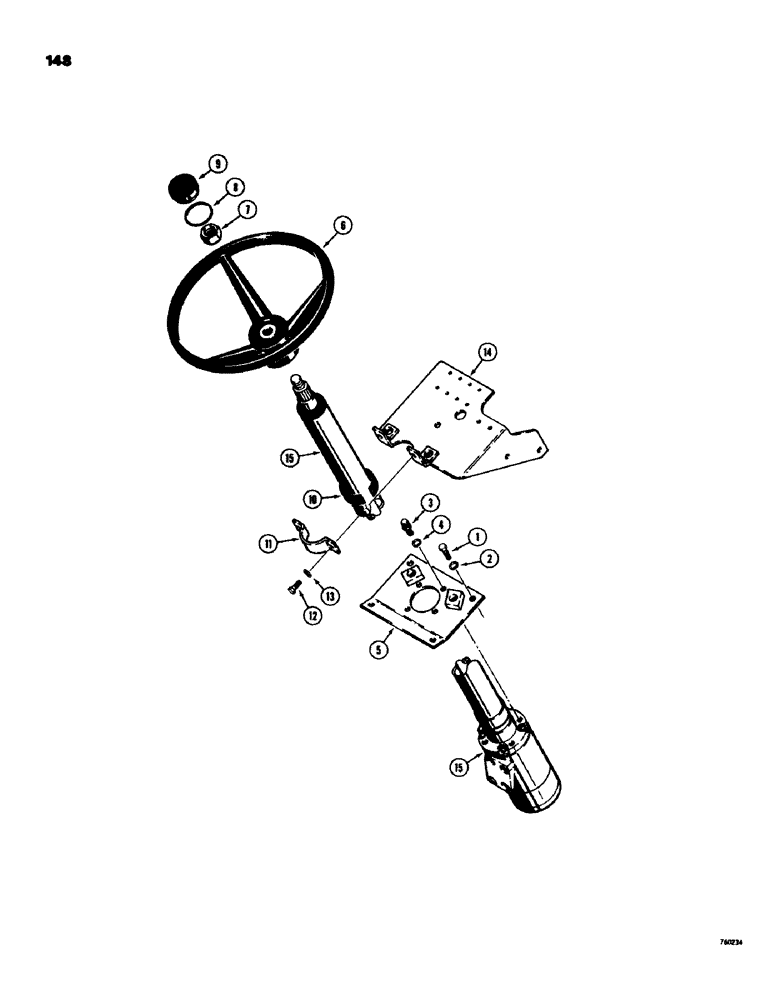

Запчасти Case 580C (148) - STEERING WHEEL AND COLUMN (05) - STEERING

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

2

92-6

LOCK WASHER,3/8"

2шт.

3

27586R1

12 PT SCREW,Flg, 5/16"-18 x 3/4"

SCREW - ferry head, 5/16" - 18 NC x 5/8"

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

D71584

PLATE

- steering valve mounting

1шт.

6

A65544

STEERING WHEEL

1шт.

7

A14567

JAM NUT

- steering wheel retaining

1шт.

8

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

D26115 O-ring - If #9 medallion is sloppy in wheel, use A29884 O-ring.

1шт.

9

A62210

PLUG

MEDALLION - steering wheel nut cover

1шт.

10

D66844

PADDING

WRAPPER - steering, column

1шт.

11

D66049

CLAMP

- steering column

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

D66041

BRACKET - steering column, mechanical shuttle models only, tractor, Serial Range: -8958213

1шт.

14

D76066

BRACKET - steering column, mechanical shuttle models only, tractor, Start Serial: 8958213

1шт.

14

D70721

BRACKET - steering column, power shuttle models only, tractor, Serial Range: -8958213

1шт.

14

D75238

BRACKET - steering column, power shuttle models only, tractor, Start Serial: 8958213

1шт.

15

D63250

VALVE

- steering, includes column, parts list Figure 156

1шт.

15

D89898R

REMAN-STEERING VALVE

580C CASE CONSTRUCTION KING LOADER BACKHOE, steering, Reman for New PN D63250

1шт.

15

D89898C

CORE-STEERING VALVE

Return Number

1шт.
